Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Cluster / Carrier
>>
Warning Indicators
Warning Indicators

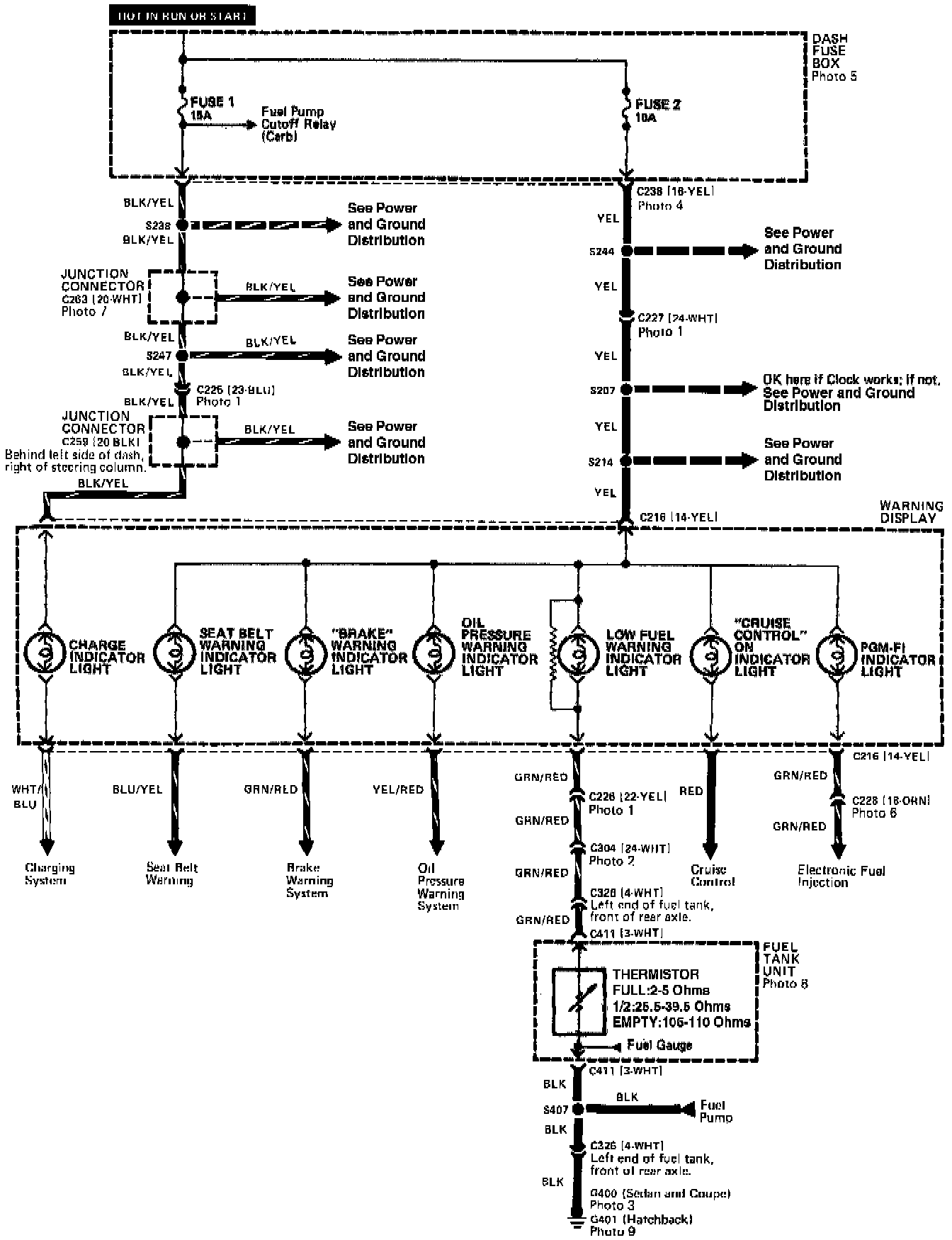

Warning Indicators And Low Fuel Warning System Wiring Diagram:
