Oil Pressure Warning Lamp/Indicator
Oil Pressure Warning Lamp/Indicator

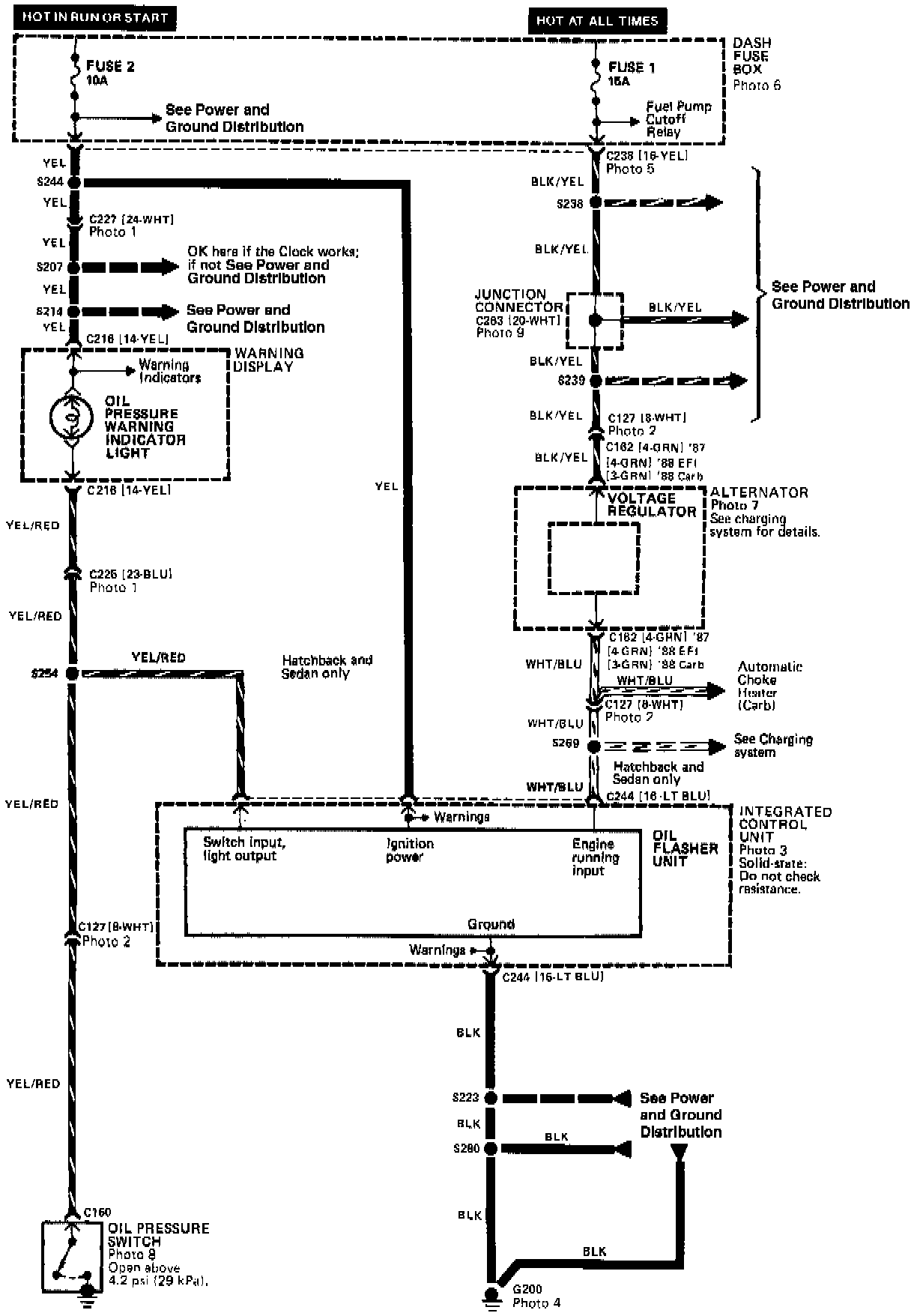

Oil Pressure Warning System Wiring Diagram:
