Home >> Honda >> 1987 >> Accord L4-1955cc 2.0L SOHC 2-bbl >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Valve Body, A/T

Valve Body, A/T

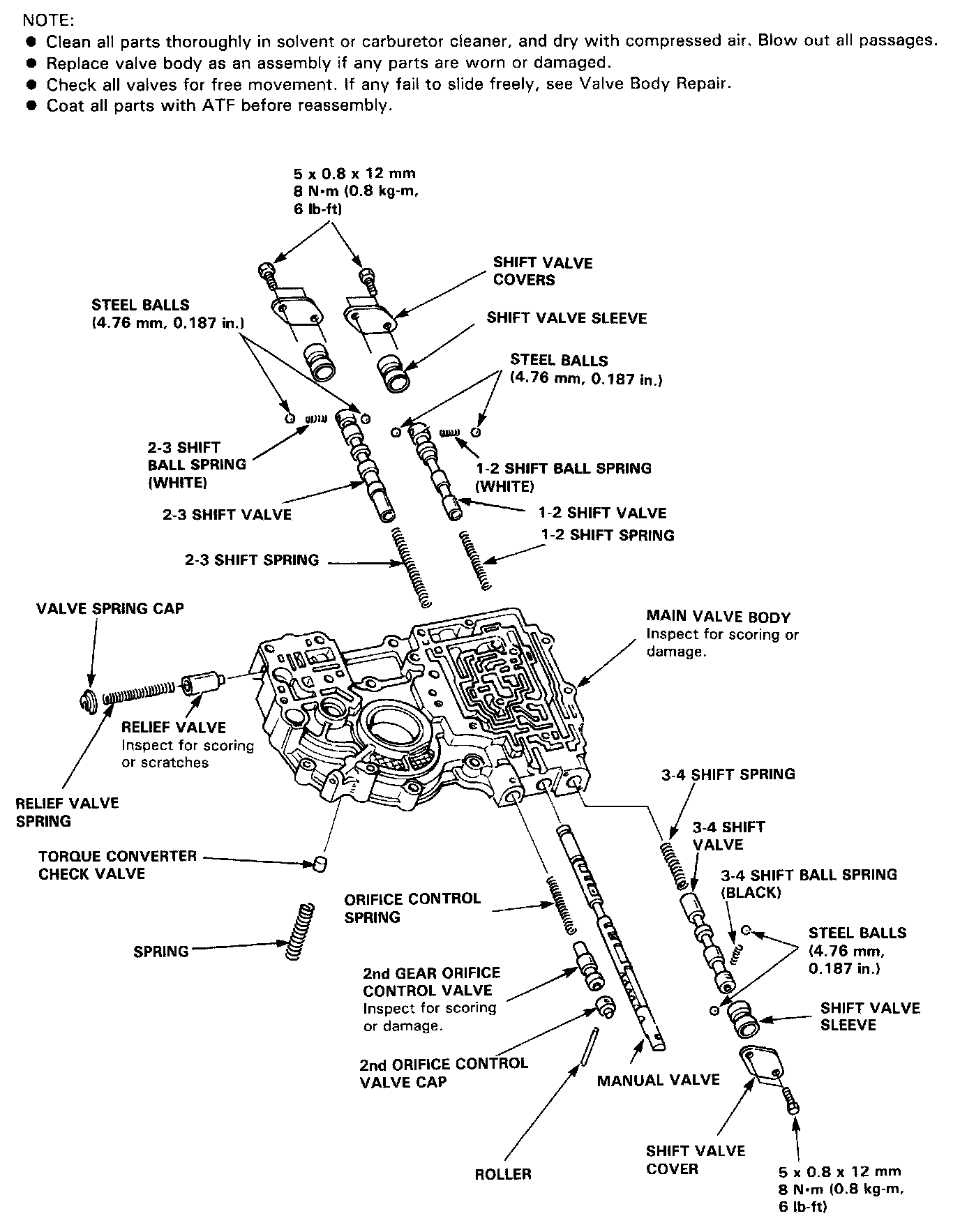

Main Valve Body:

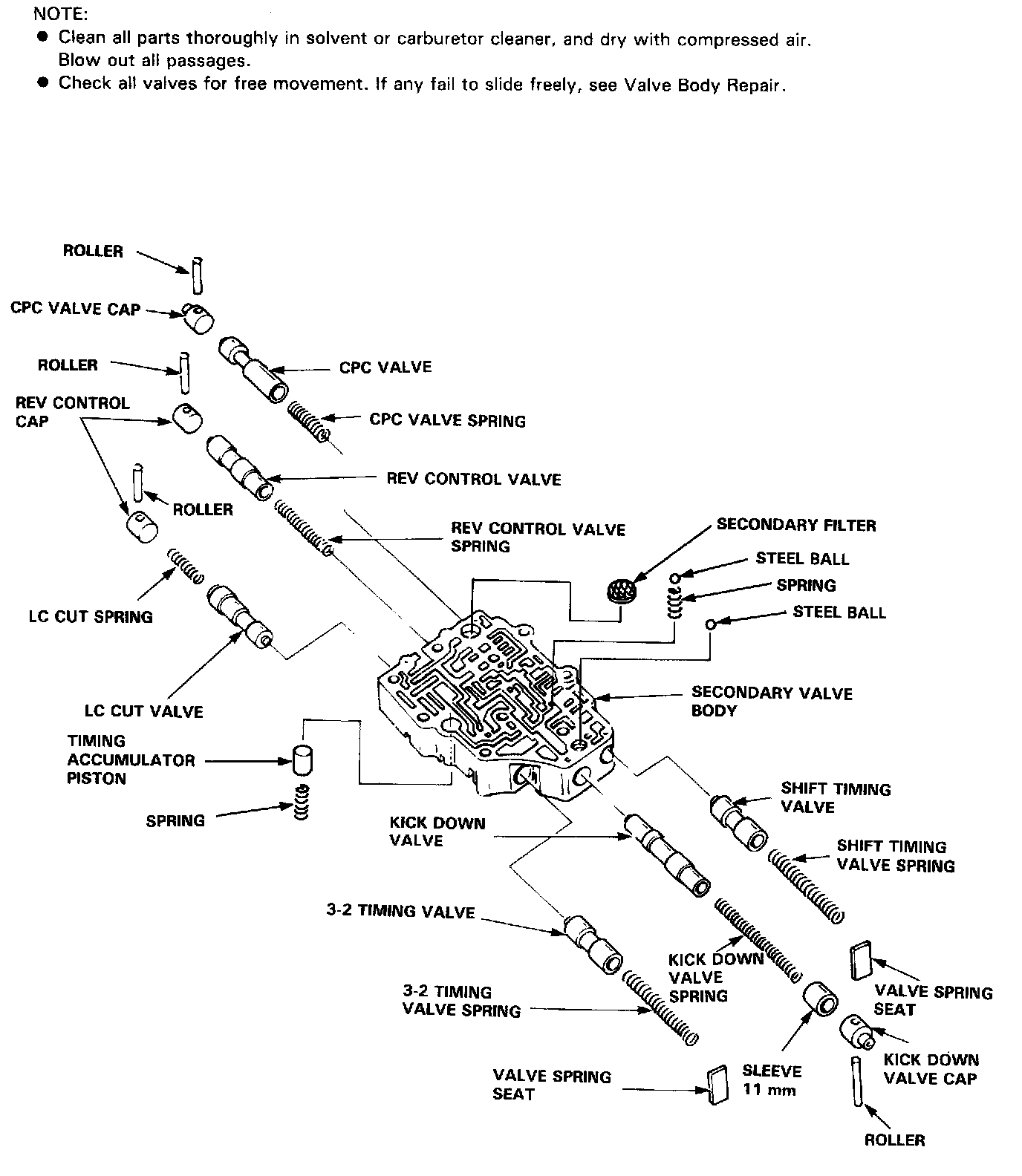

Secondary Valve Body:
