Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
A/C Compressor Controls
A/C Compressor Controls

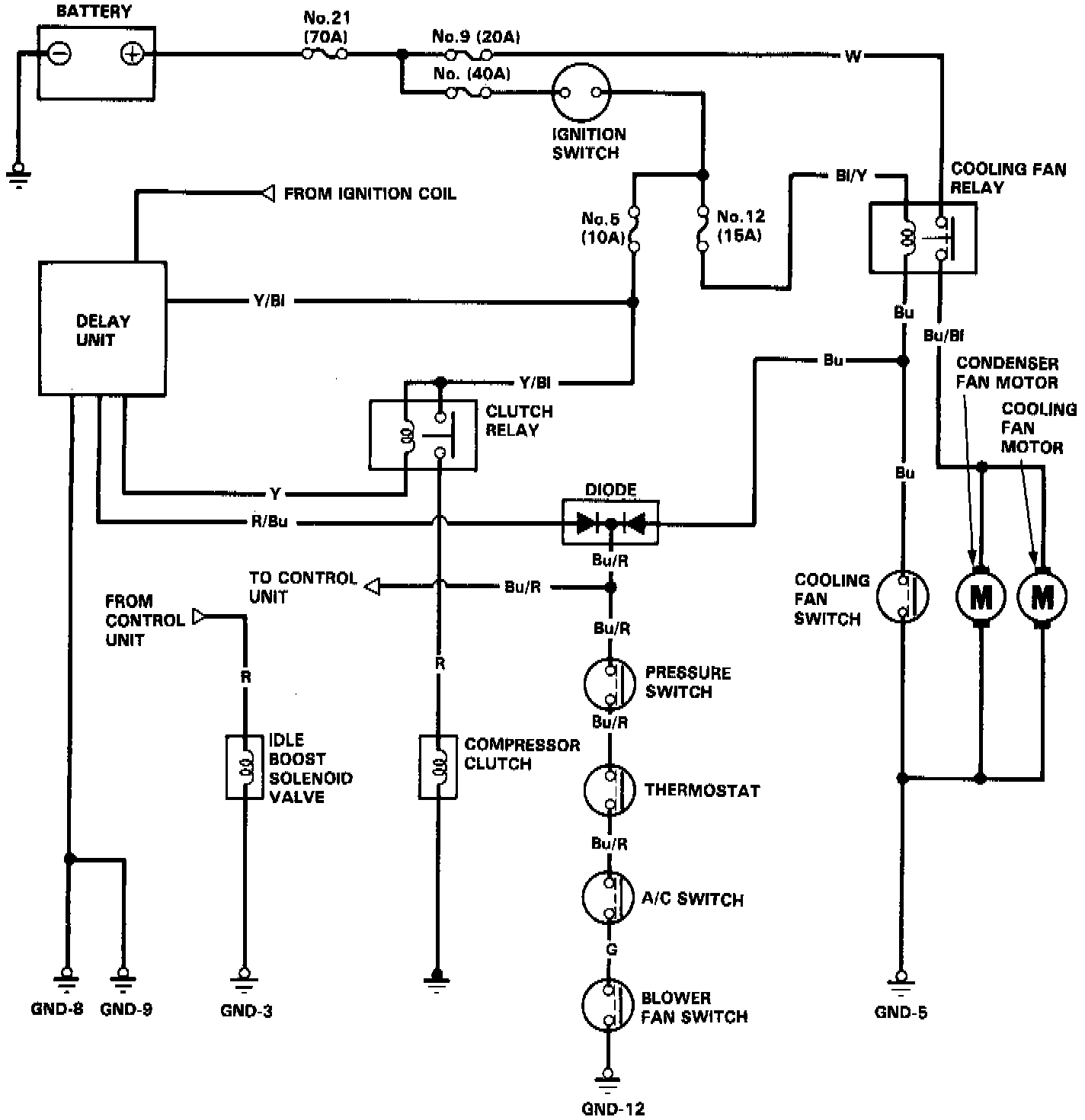

Fans And Air Conditioner, With CARB:
Fans And Air Conditioner, With CARB:
DX and LX Models:
