Honda
>>
1987
>>
Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Heating System
Heating System

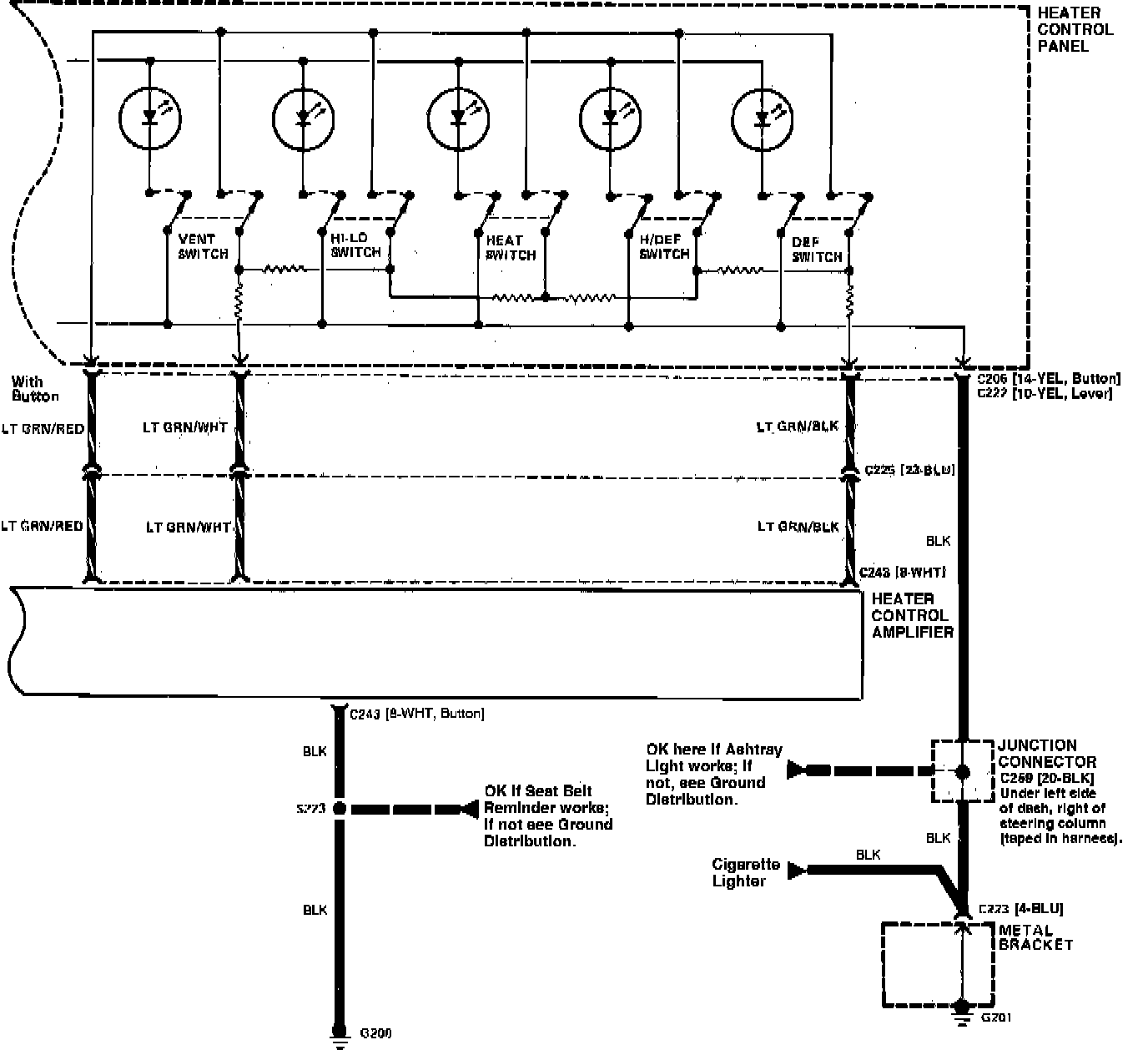

Heater Controls, Part 1 Of 2:
Heater Controls, Part 2 Of 2:
Heater System:
