Carbureted Engines W/Auto Trans
Carbureted Engines W/Auto Trans

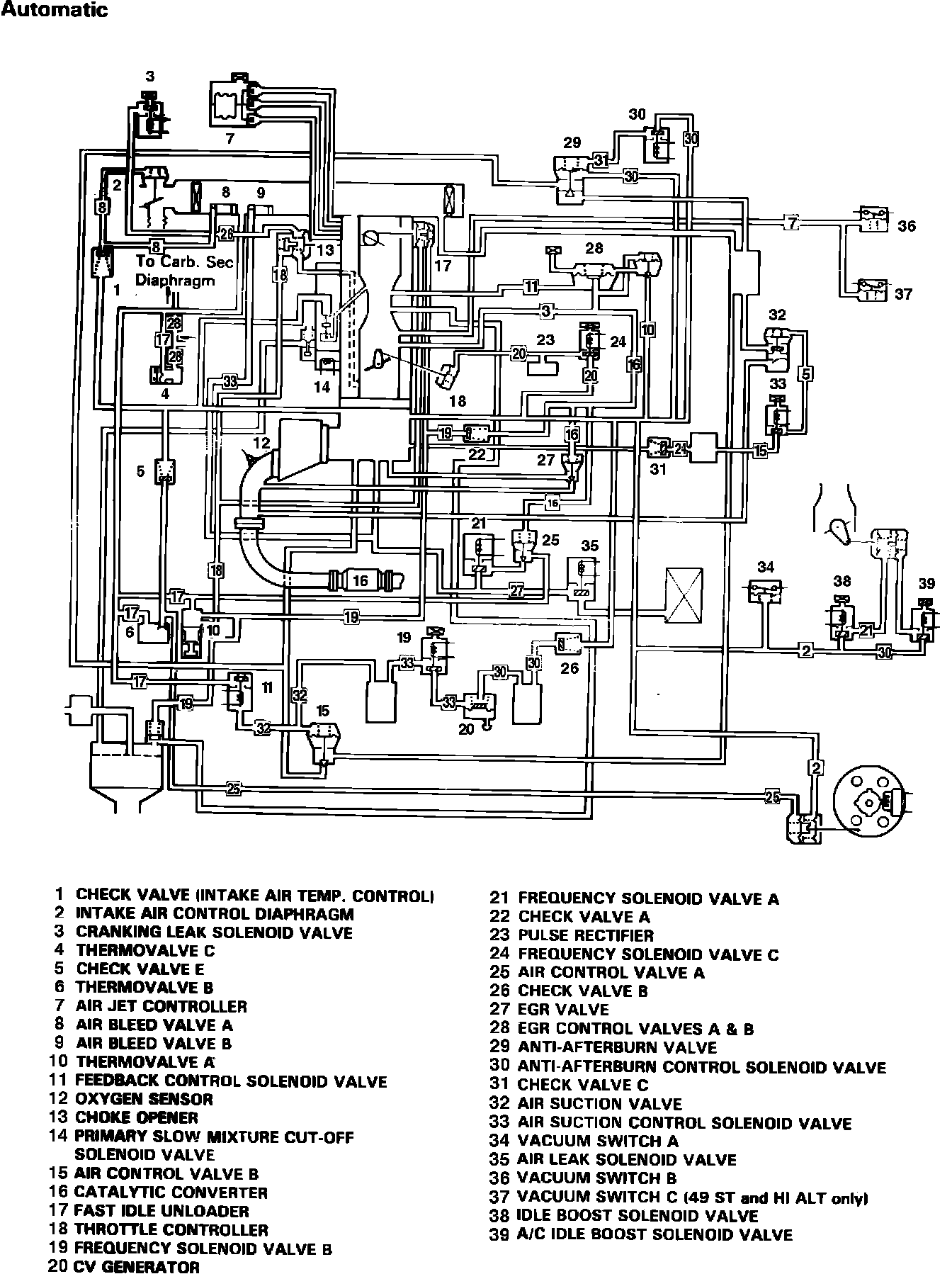

Fig. 10 Emission Control Vacuum Hose Routing. W/Carbureted Engine & Automatic Transmission:
