Home
>>
Honda
>>
1987
>>
Accord L4-1955cc 2.0L SOHC 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
Carbureted Engines W/Man Trans
Carbureted Engines W/Man Trans

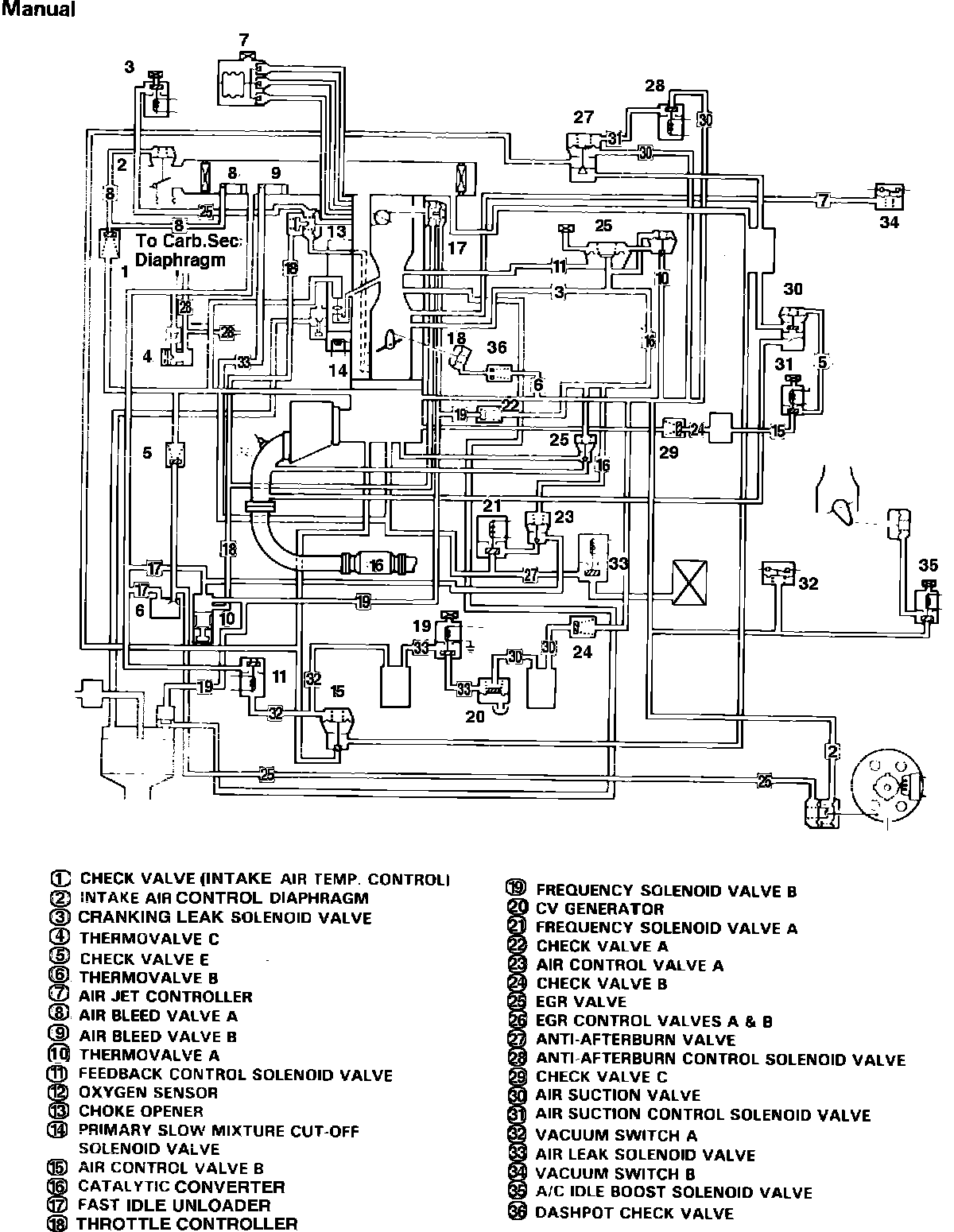

Fig. 11 Emission Control Vacuum Hose Routing. W/Carbureted Engine & Manual Transmission:
