Control Box & Vacuum Connection Reference Diagram. W/CARB & A/T

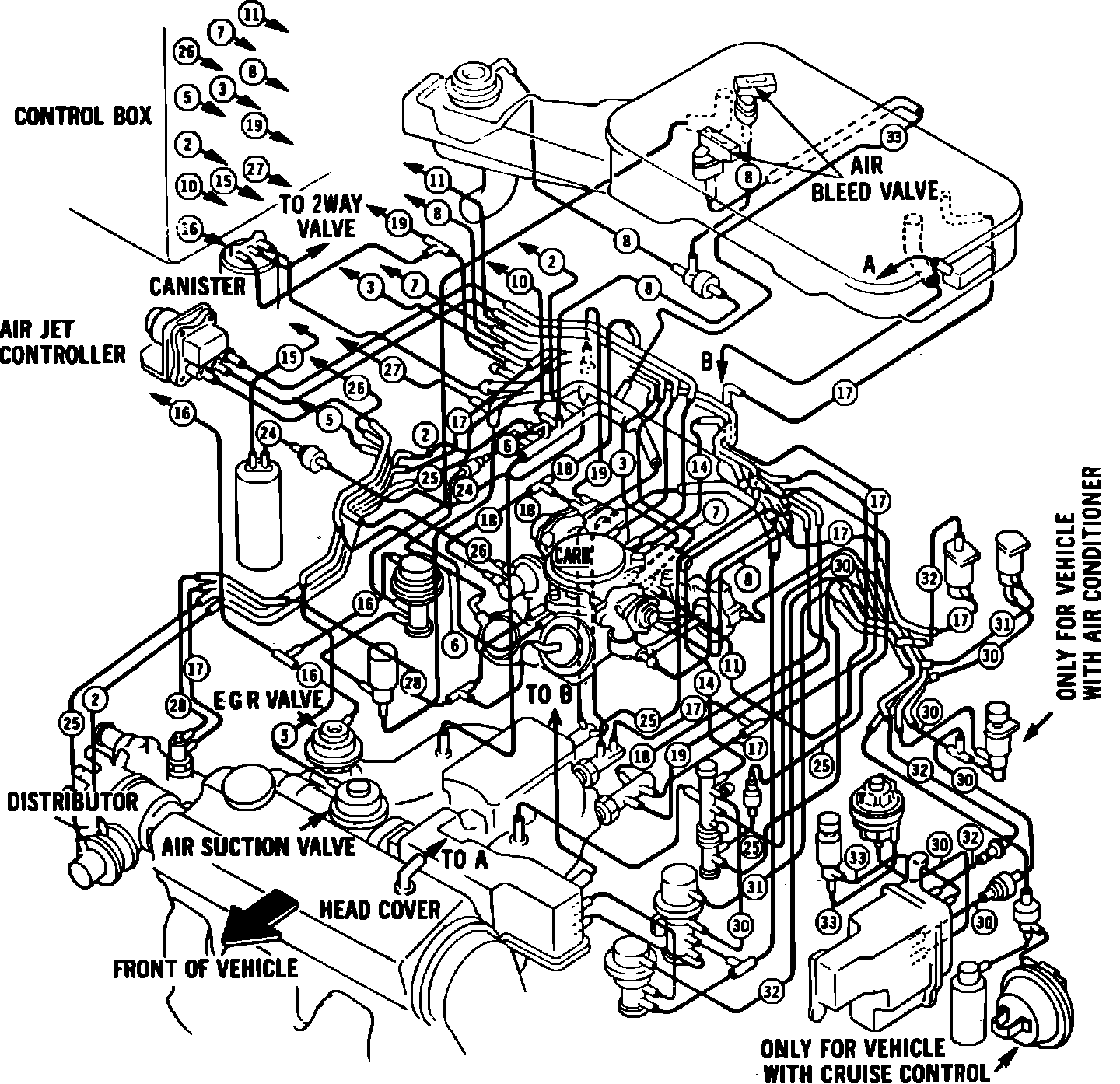

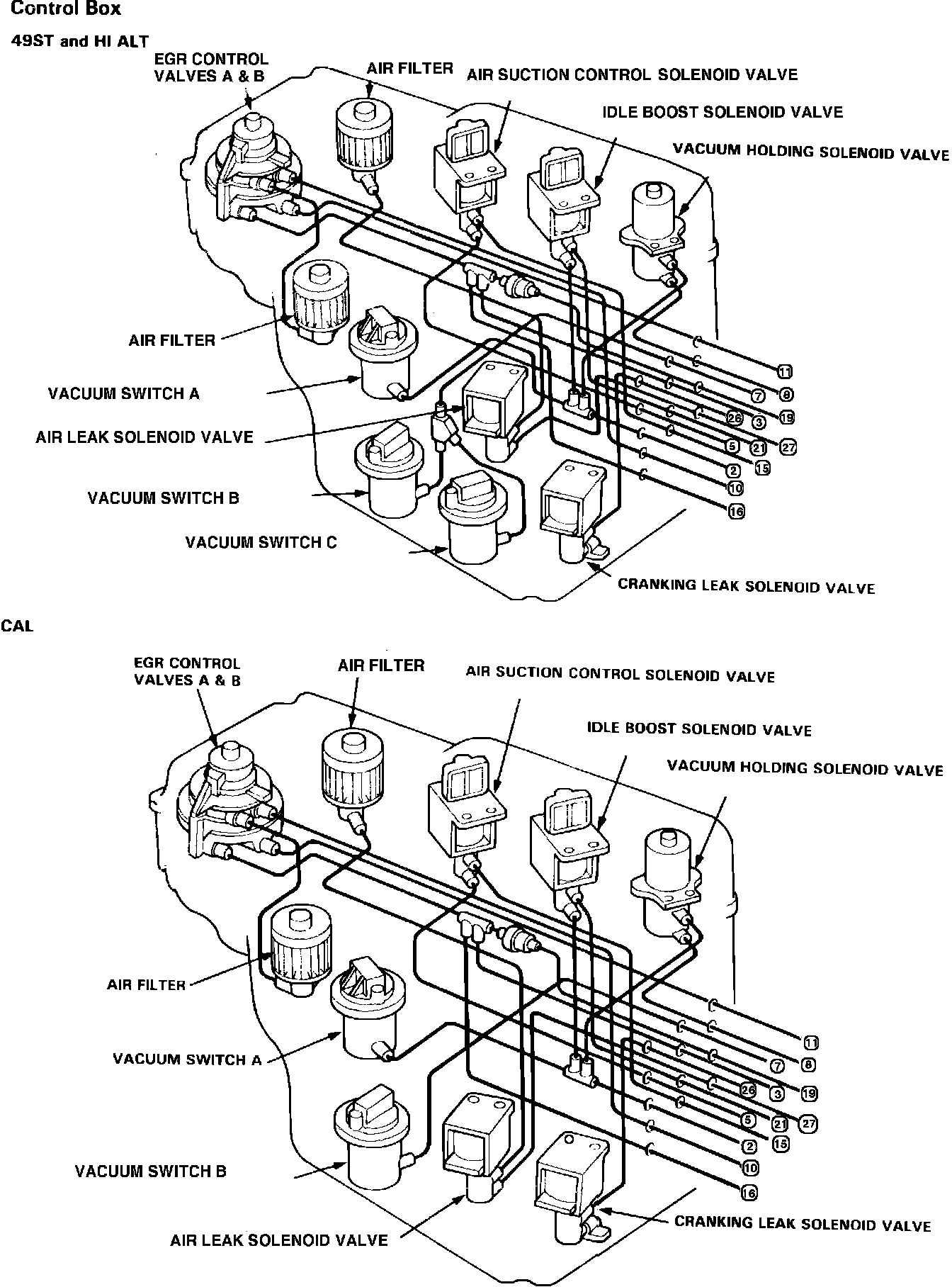

Fig. 26 Control Box & Vacuum Connection Reference Diagram. W/Carbureted Engine & Automatic Transmission:



Fig. 26 Control Box & Vacuum Connection Reference Diagram . W/Carbureted Engine & Automatic Transmission:

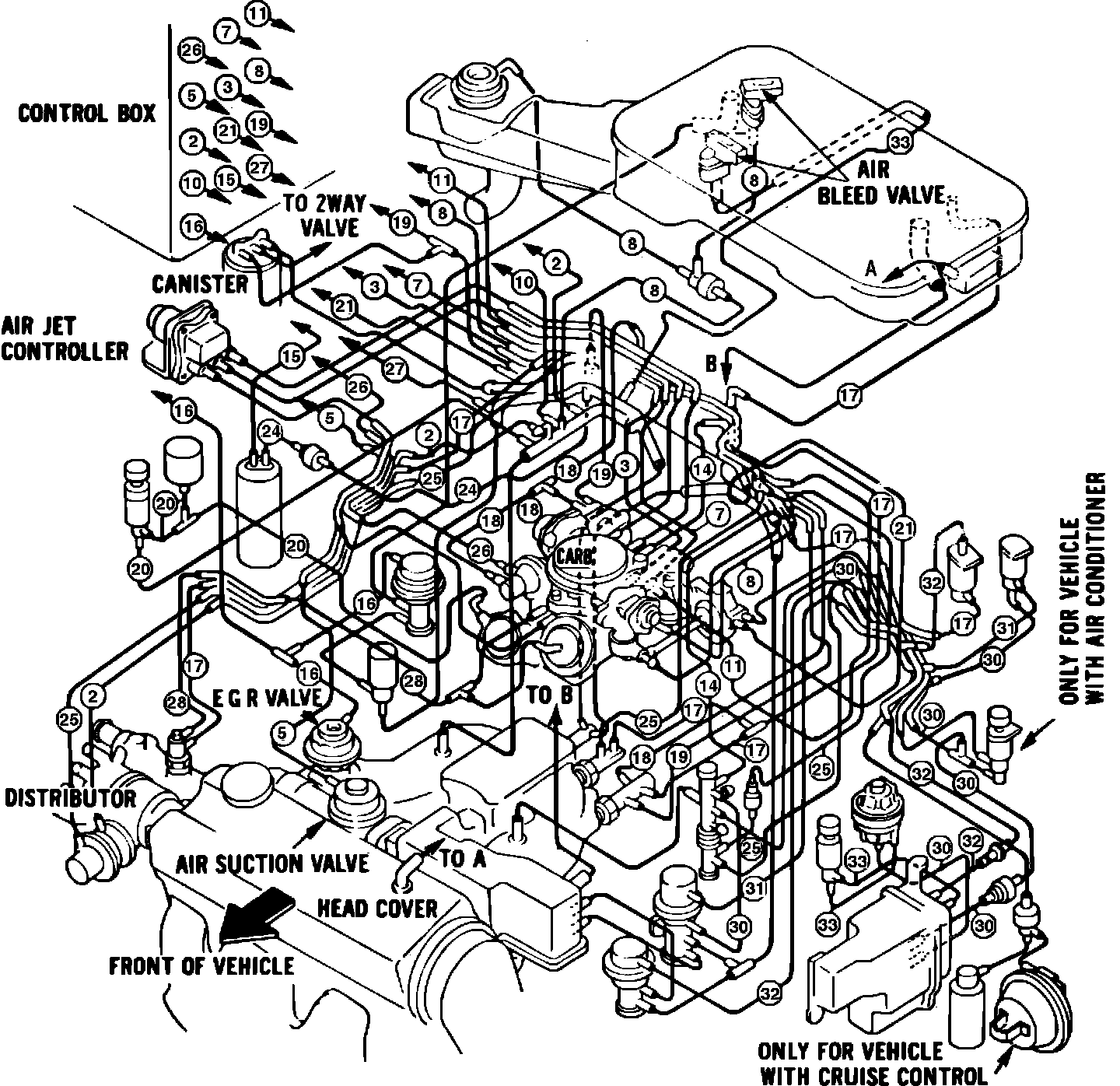

Fig. 27 Control Box & Vacuum Connection Reference Diagram . W/Carbureted Engine & Manual Transmission:



Fig. 27 Control Box & Vacuum Connection Reference Diagram . W/Carbureted Engine & Manual Transmission:
