Computers and Control Systems

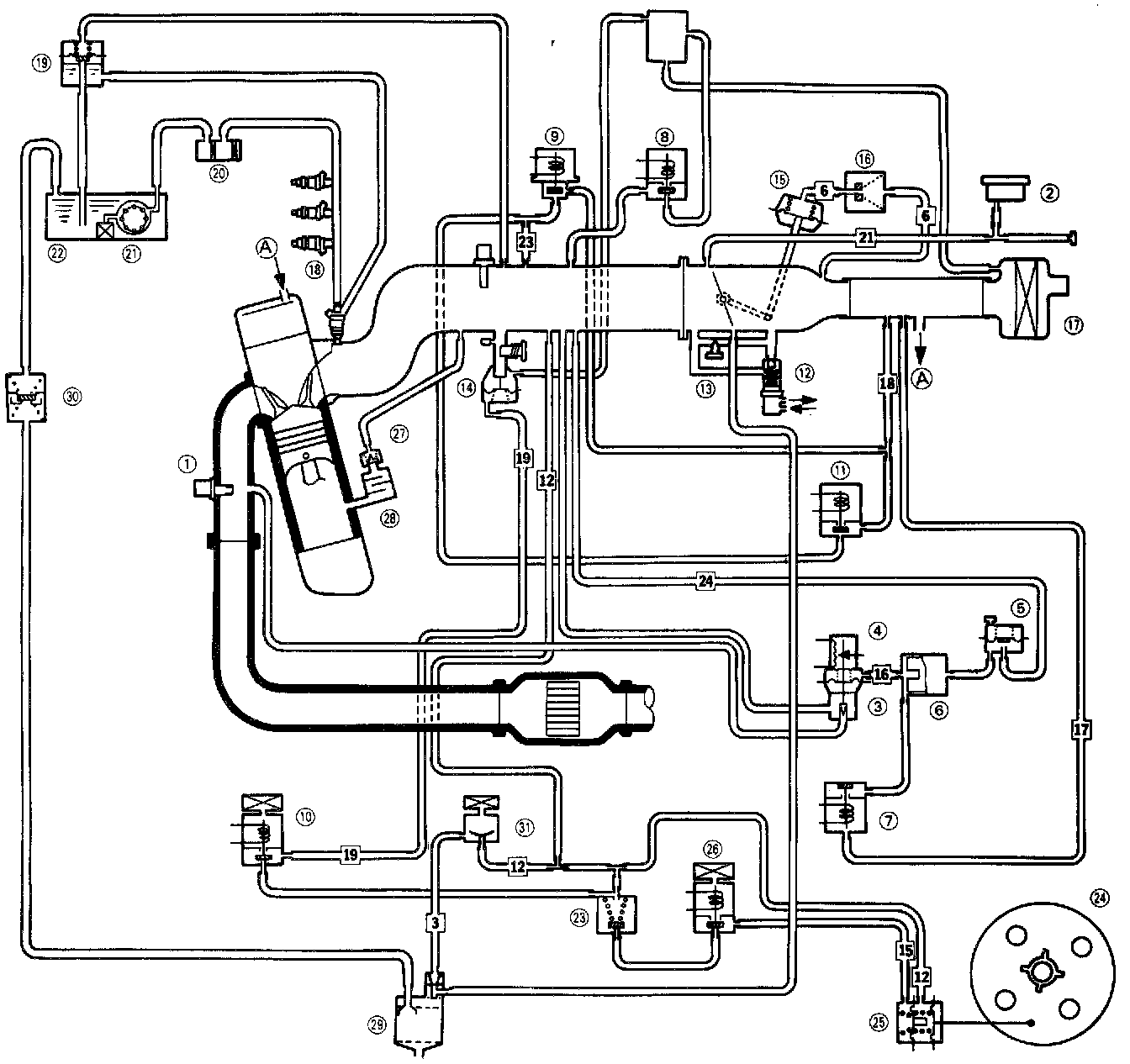

Vacuum Schematic With Fuel Injection:

(1) OXYGEN (02) SENSOR
(2) MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR
(3) EGR VALVE
(4) EGR VALVE LIFT SENSOR
(5) CONSTANT VACUUM CONTROL (CVC) VALVE
(6) AIR CHAMBER
(7) EGR CONTROL SOLENOID VALVE
(8) IDLE CONTROL SOLENOID VALVE
(9) A/T IDLE CONTROL SOLENOID VALVE
(10) A/C IDLE BOOST SOLENOID VALVE
(11) FAST IDLE CONTROL SOLENOID VALVE
(12) FAST IDLE VALVE
(13) IDLE ADJUSTING SCREW
(14) A/C IDLE BOOST VALVE
(15) DASHPOT DIAPHRAGM
(16) DASHPOT CHECK VALVE
(17) AIR CLEANER
(18) FUEL INJECTOR
(19) PRESSURE REGULATOR
(20) FUEL FILTER
(21) FUEL PUMP
(22) FUEL TANK
(23) CHECK VALVE
(24) DISTRIBUTOR
(25) VACUUM ADVANCE DIAPHRAGM
(26) IGNITION CONTROL SOLENOID VALVE
(27) PCV VALVE
(28) BREATHER CHAMBER
(29) CHARCOAL CANISTER
(30) TWO-WAY VALVE
(31) THERMOVALVE
