Accord L4-1955cc 2.0L SOHC FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Control Box
Control Box

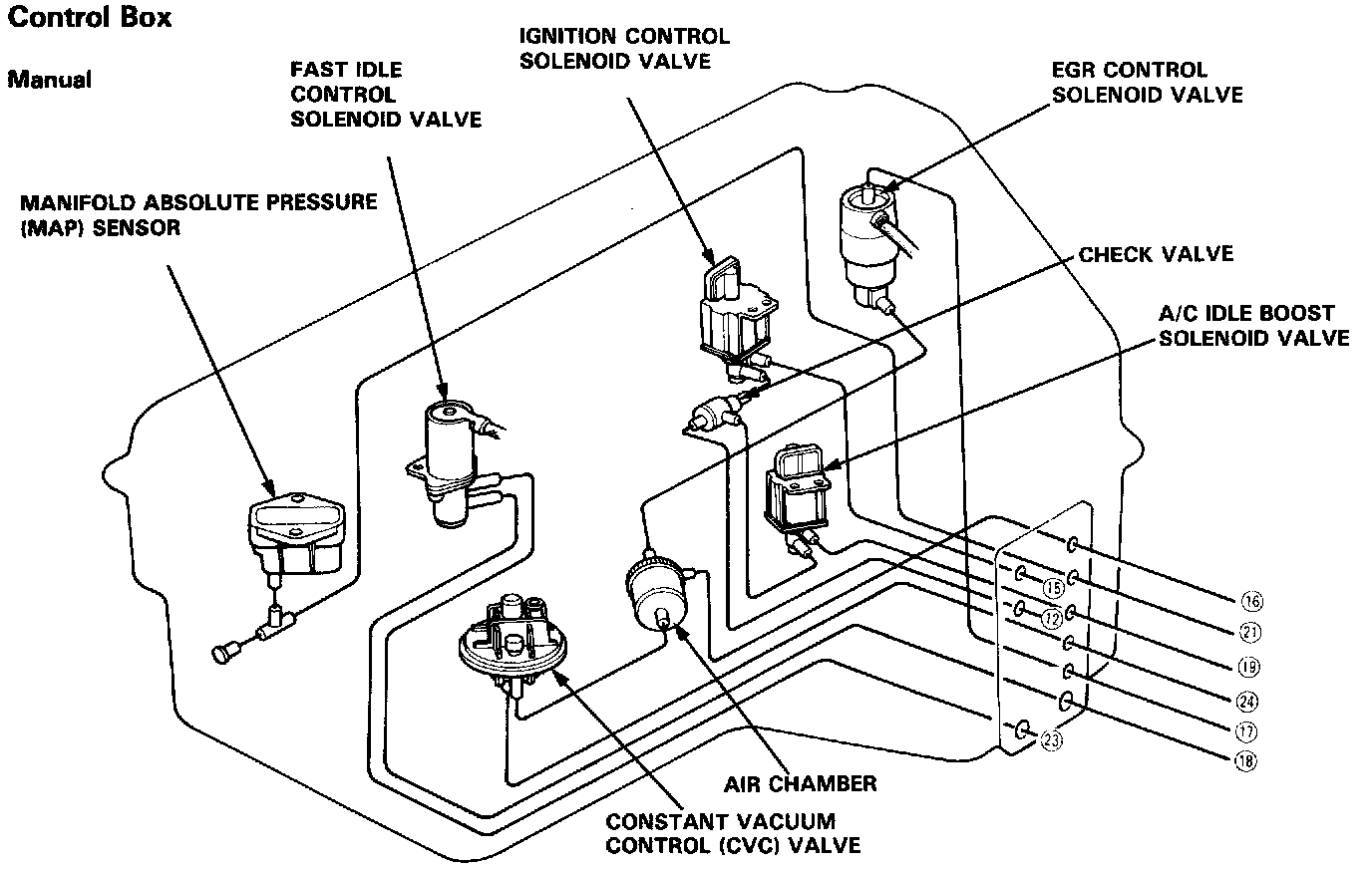

Control Box Manual Trans Fuel Injected:

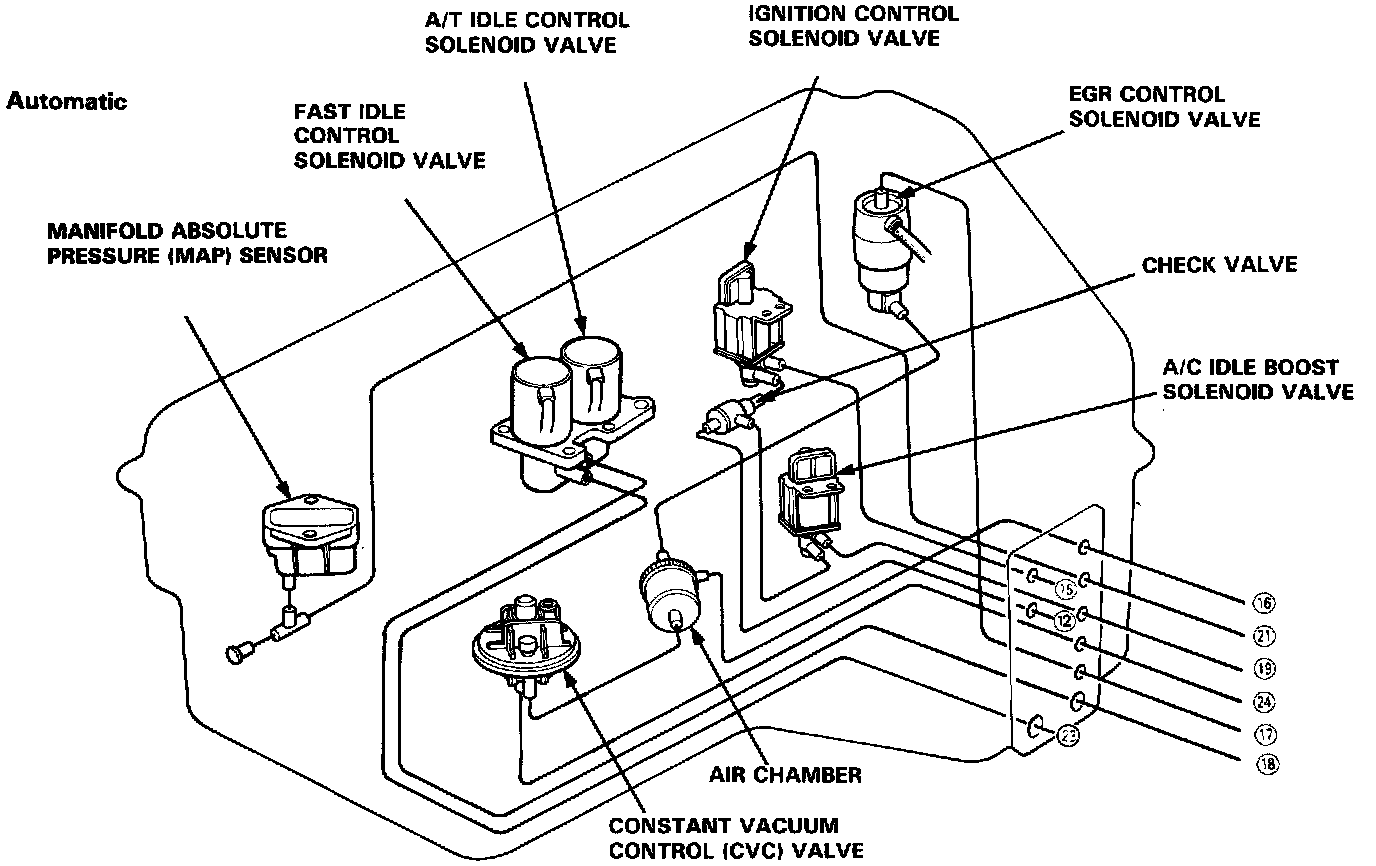

Control Box Automatic Trans Fuel Injected:
