Control Box & Vacuum Connection Reference Diagram. W/Fuel Inj.
Control Box & Vacuum Connection Reference Diagram. W/Fuel Inj.

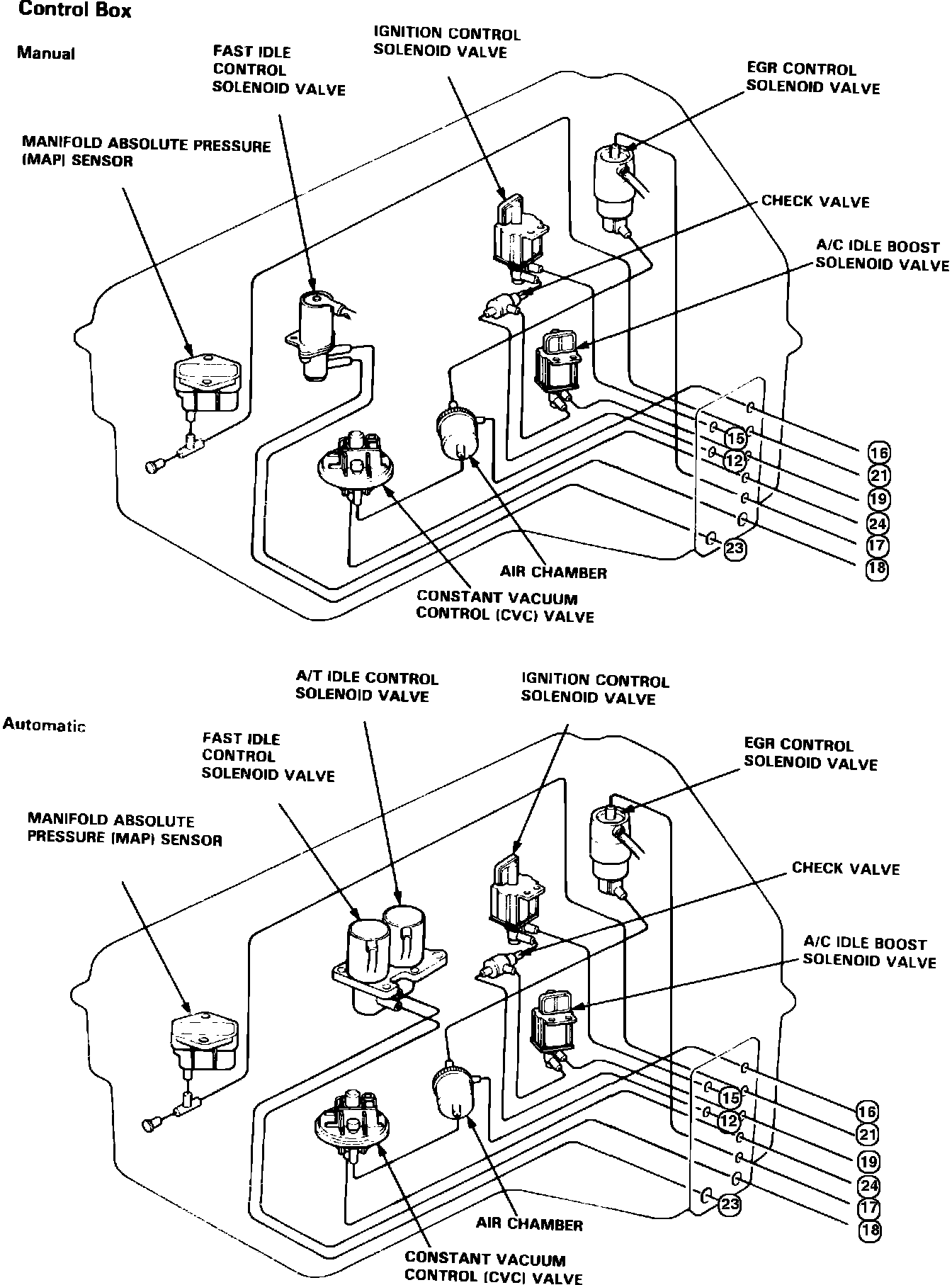

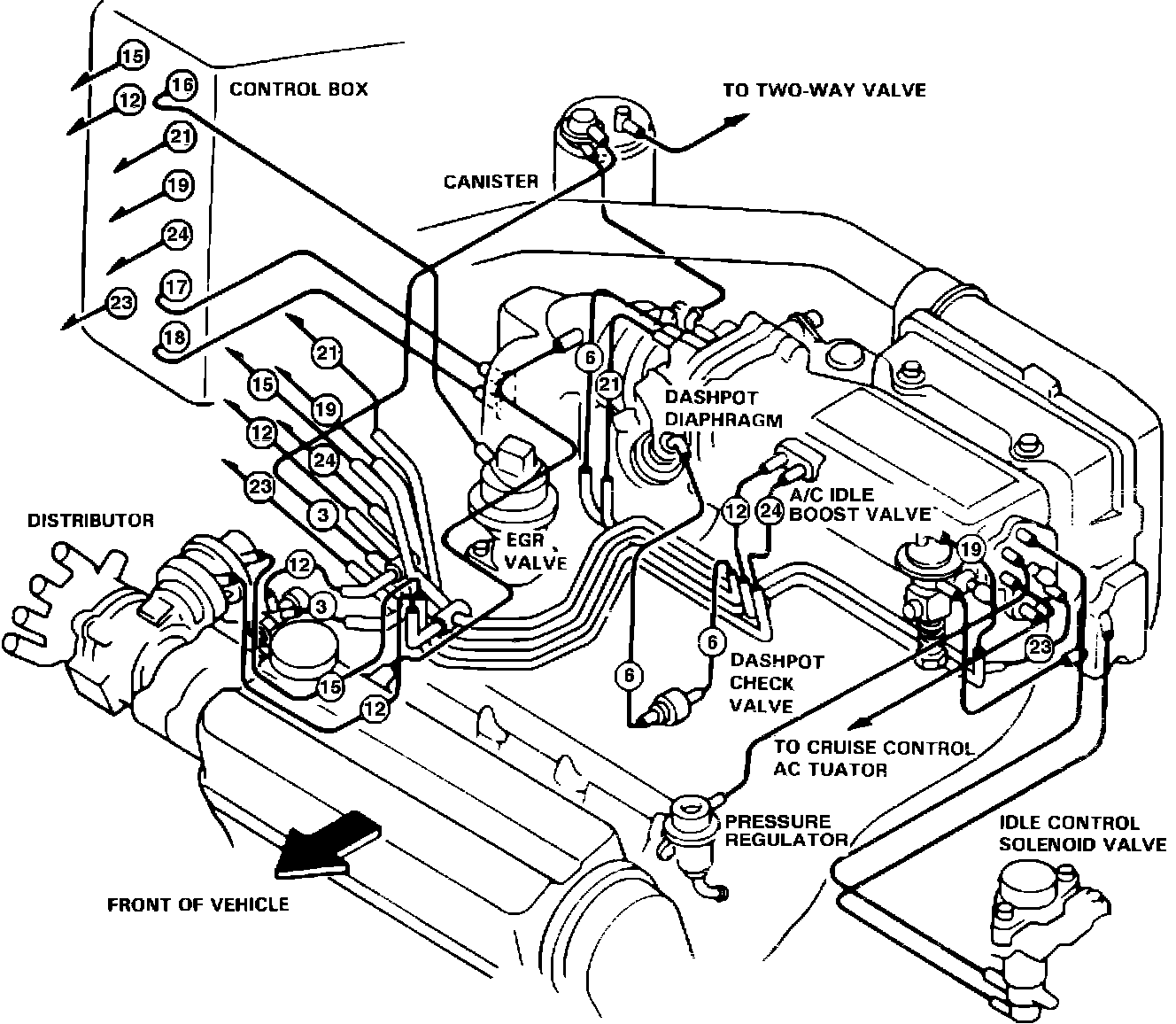

Fig. 29 Control Box & Vacuum Connection Reference Diagram . W/Fuel Injected Engine:
Fig. 29 Control Box & Vacuum Connection Reference Diagram . W/Fuel Injected Engine:
