Engine Compartment Reference Diagram
Engine Compartment Reference Diagram

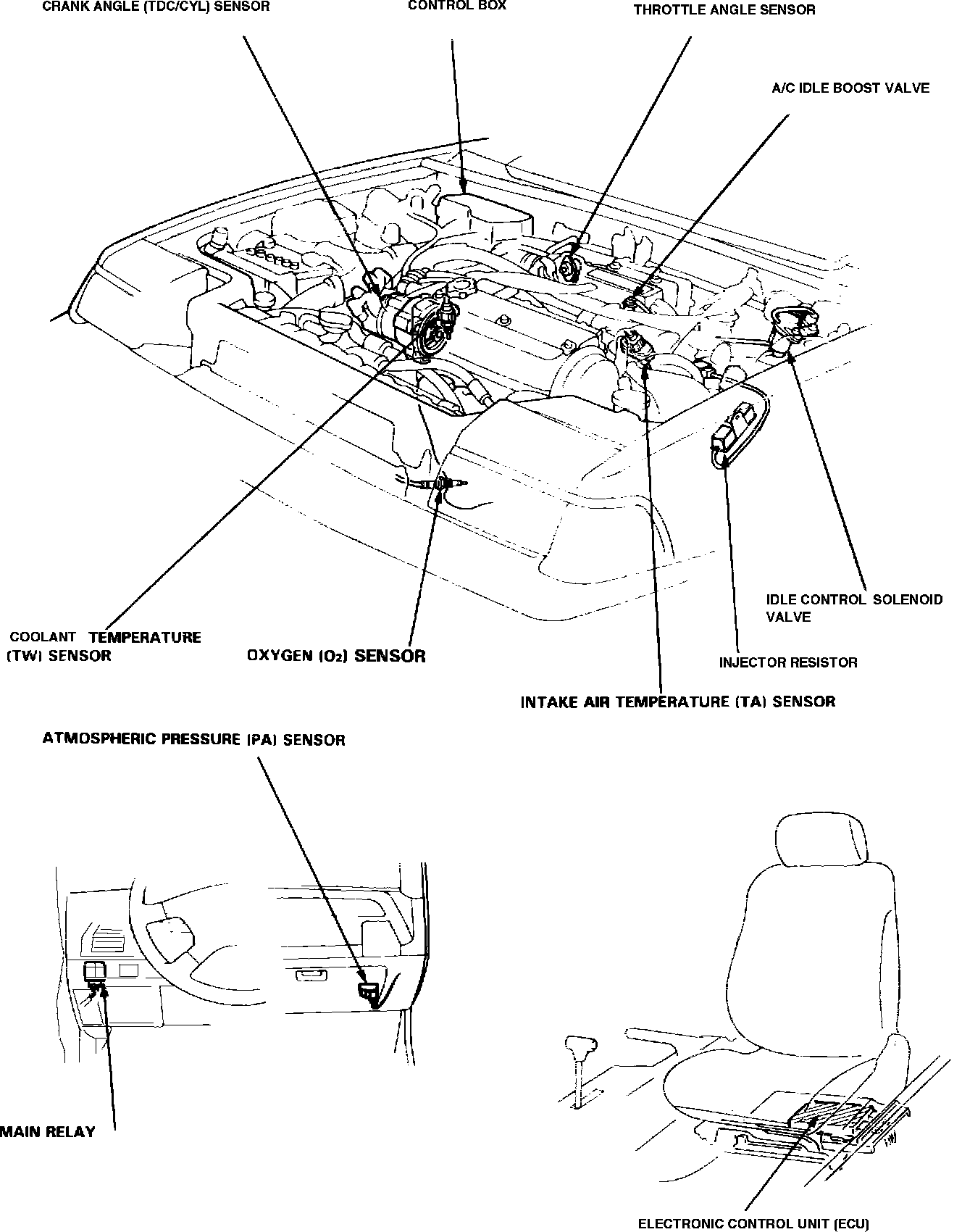

Fig. 28 Engine Compartment Reference Diagram. W/Fuel Injected Engine:
Fig. 28 Engine Compartment Reference Diagram . W/Fuel Injected Engine:
