Fuel Pump: Service and Repair

Warning: Do not smoke while working on fuel system. Keep open flames away from your work area.

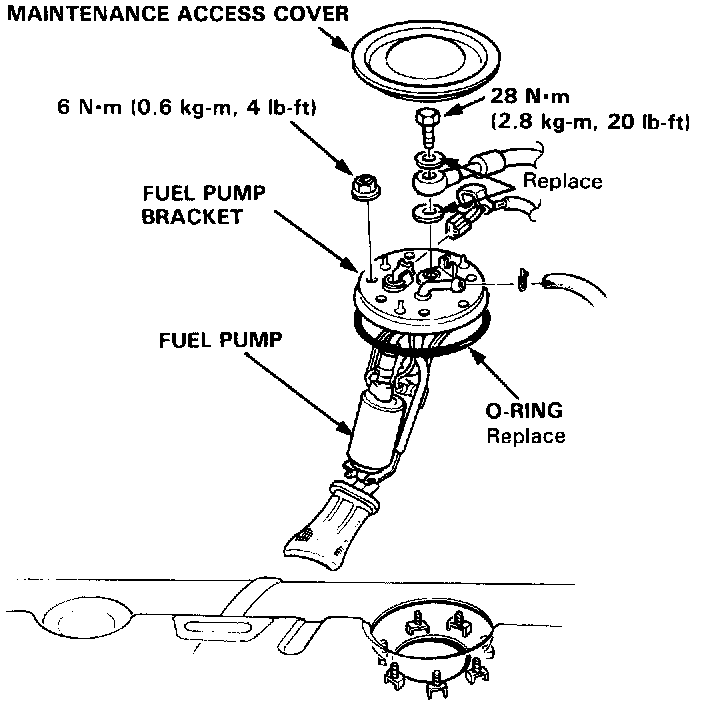

Fuel Pump Replacement
1. Relieve fuel pressure.
2. Remove the left maintenance access cover in the luggage area.
3. Disconnect the fuel lines and connector.
4. Remove the fuel pump mounting nuts.
5. Remove the fuel pump from the fuel tank. (If it is hard to remove, slightly lower the fuel tank by loosening the fuel tank mounting nuts).

NOTE: When installing the maintenance access cover, make sure the seal is attached to the cover.

CAUTION: Do not disassemble the pump
