HF Model (California)

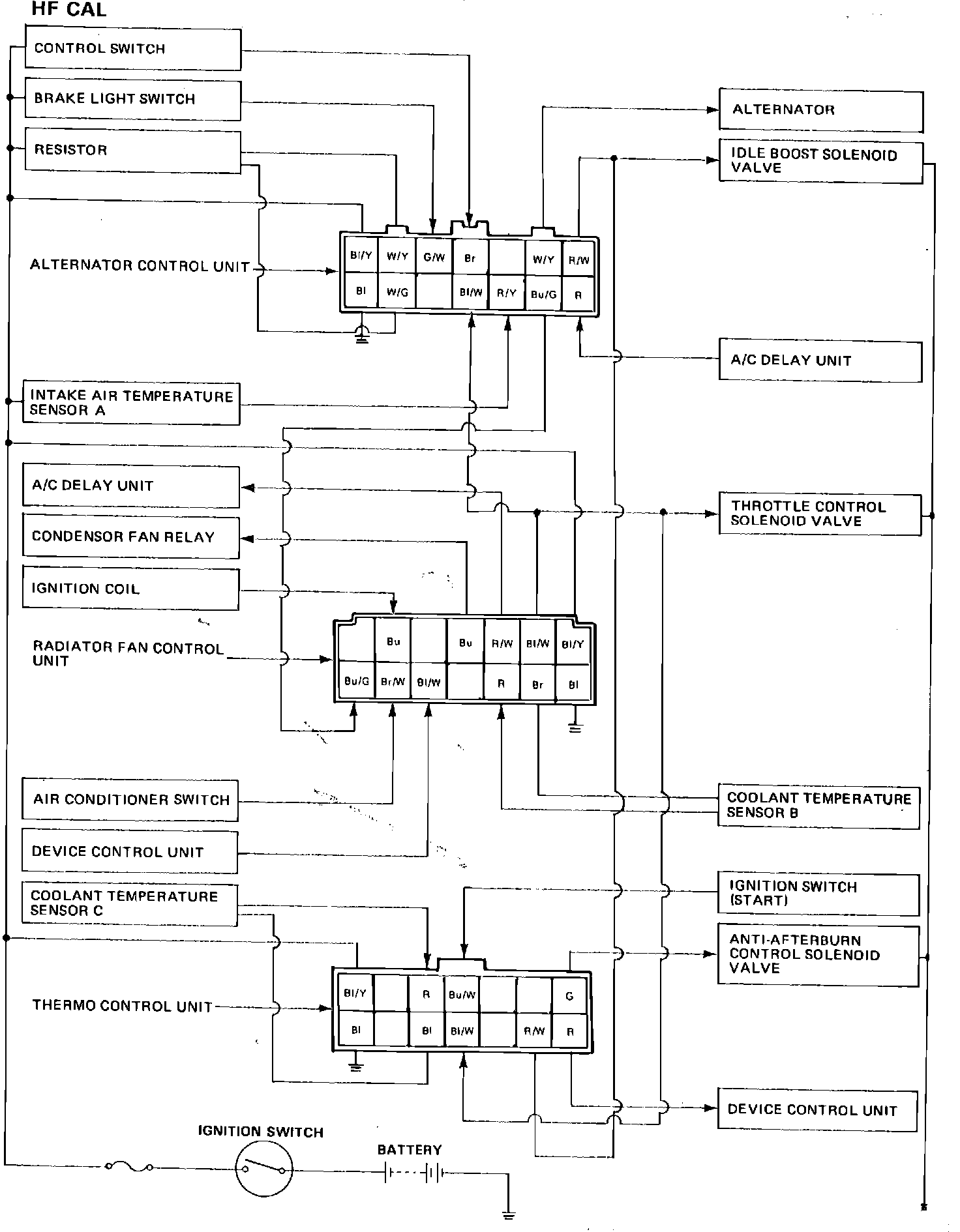

Fig. 330 Alternator, Fan & Thermo Control Unit Terminal Pin ID Location (HF CA):
