System Diagram

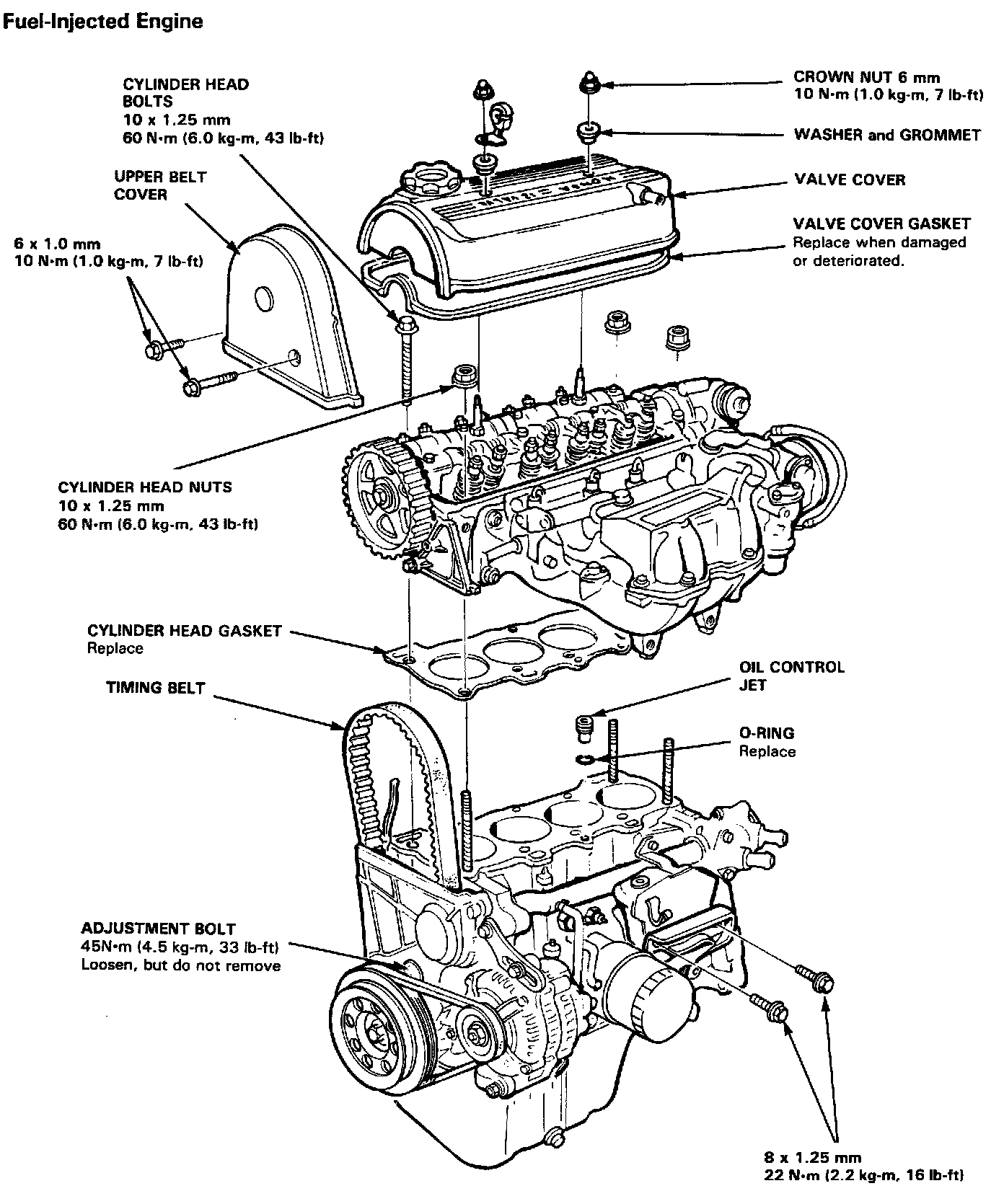

Cylinder Head Assembly And Cover:

Camshaft, Rockers, Distributor And Fuel Pump:

Valves, Guides And Springs:

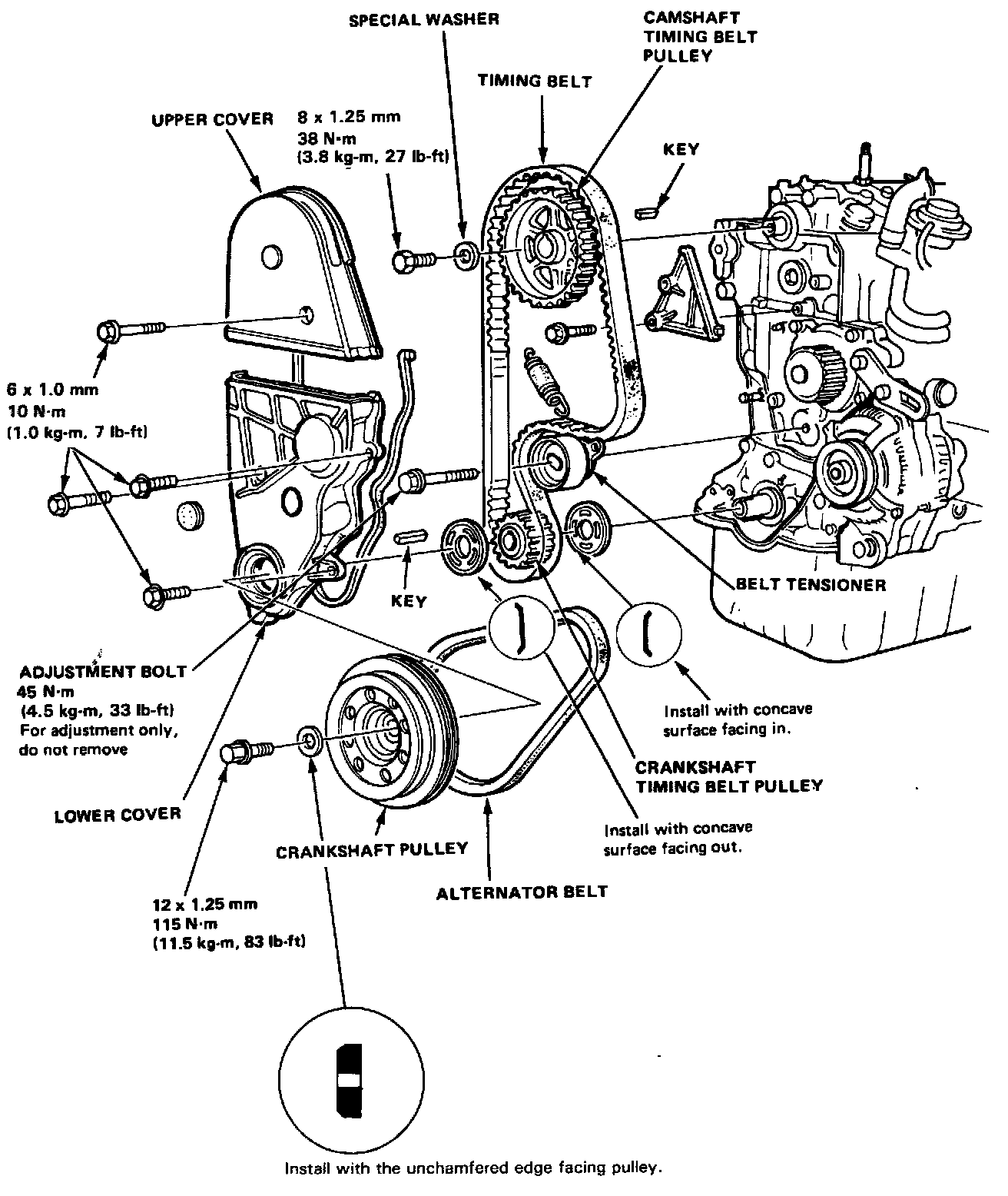

Timing Belt, Components And Covers:

Lower Engine:

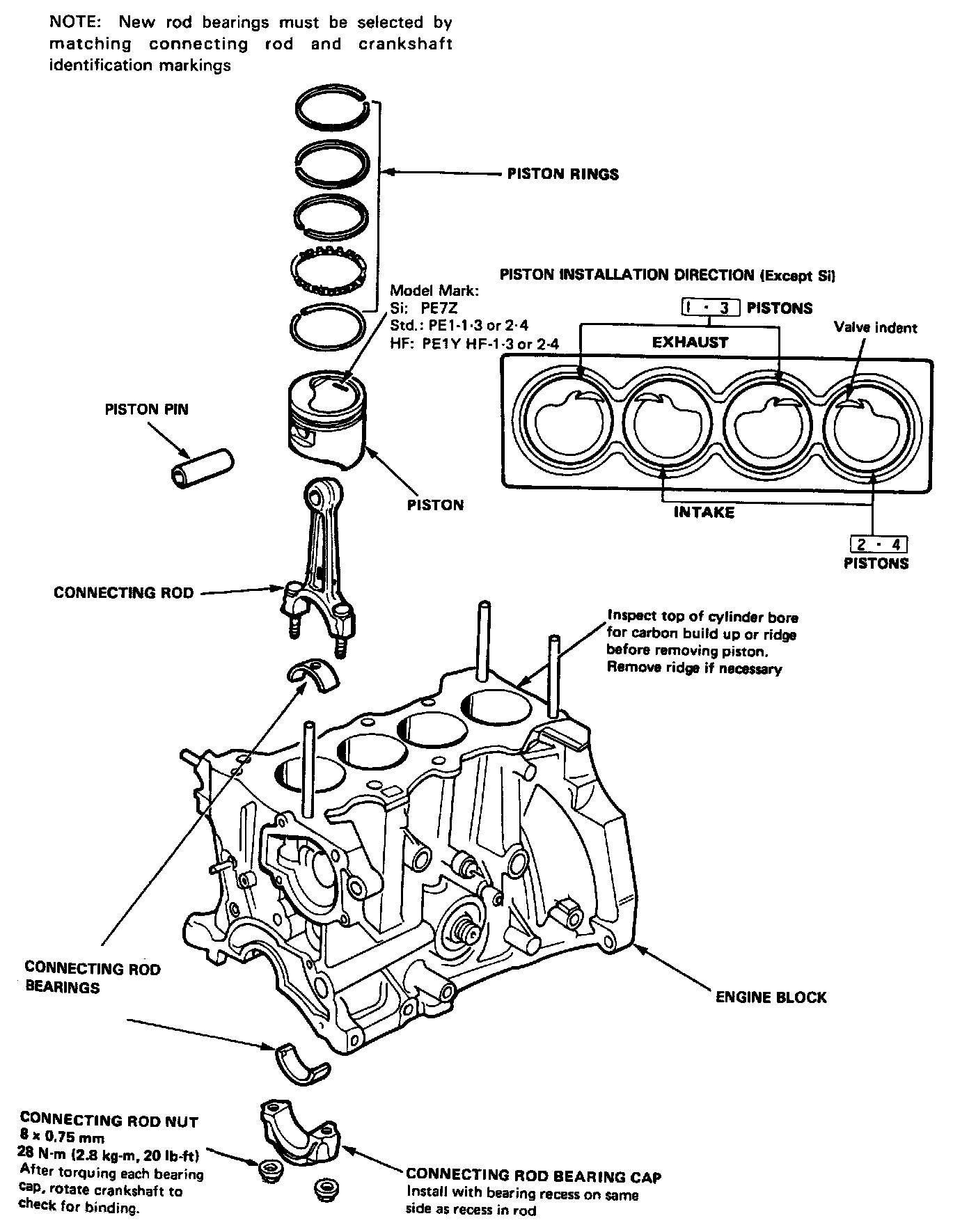

Piston And Connecting Rod:

Oil Pan, Drain Plug, Oil Pressure Sender, Oil Cooler And Oil Pump:
