A/C Component Locations

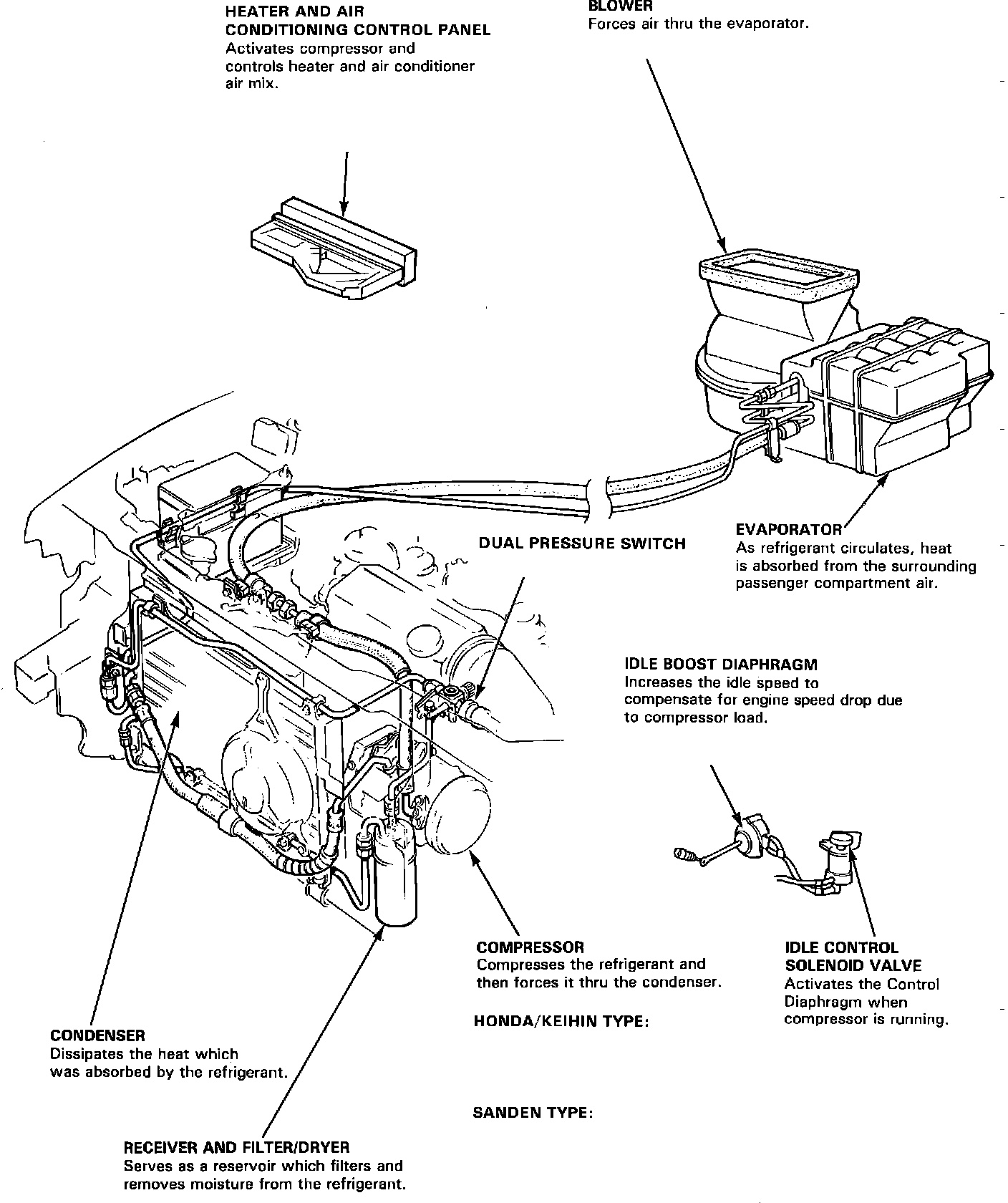

Fig. 26 System description, A/C.:

Component Locations
A/C Compressor Clutch: LH side of engine
A/C Compressor Clutch Relay: Front of engine compartment, near RH headlight
A/C Condenser Fan Motor: Ahead of LH side of condenser
A/C Condenser Fan Relay: Front of engine compartment, near RH headlight
A/C Delay Relay: Behind dash, near RH shroud
A/C Diode Box: Front of engine compartment, near RH headlight
A/C Temperature Switch: LH side of engine
A/C Thermostat: Behind dash, on RH side of evaporator module
Alternator Control Unit (HF): Behind dash, near LH shroud
Dash Auxiliary Fuse Box: Below dash, left of steering column
Dash Fuse Box: Below dash, left of steering column
Dual A/C Pressure Cutout Switch: Front of engine compartment, near LH headlight
Emission Control Unit (Si): Passenger compartment, below RH seat
Idle Boost Solenoid: LH rear of engine compartment, on firewall
Radiator Fan Motor: RH front of engine compartment, behind radiator
Radiator Fan Relay: Engine compartment, right of battery
