Vacuum and Electrical Connections Schematic
>>
Emissions System
Emissions System

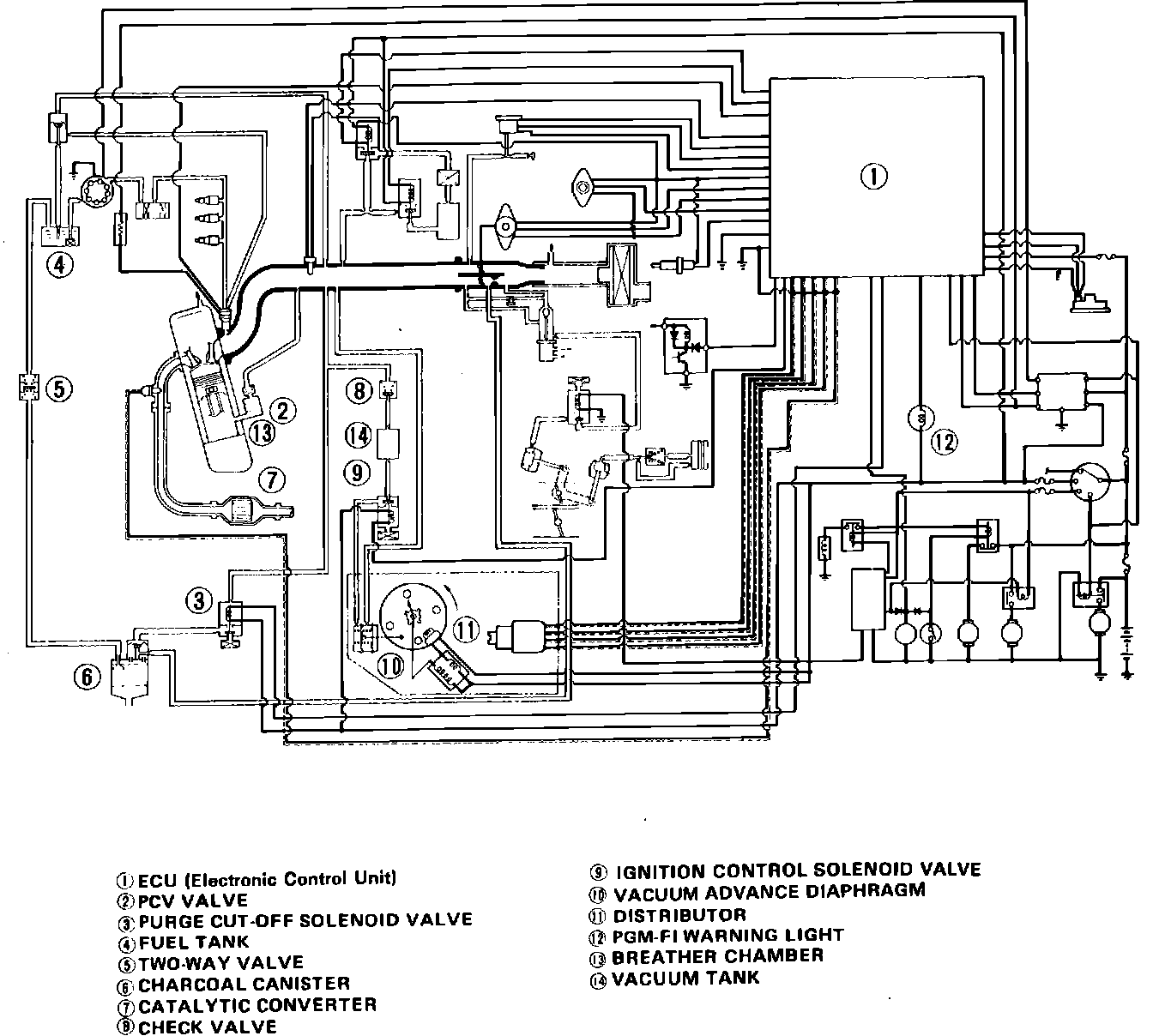

Fig. 451 Vacuum And Electrical Connections Schematic Emissions:
