Engine Compartment Reference Diagram

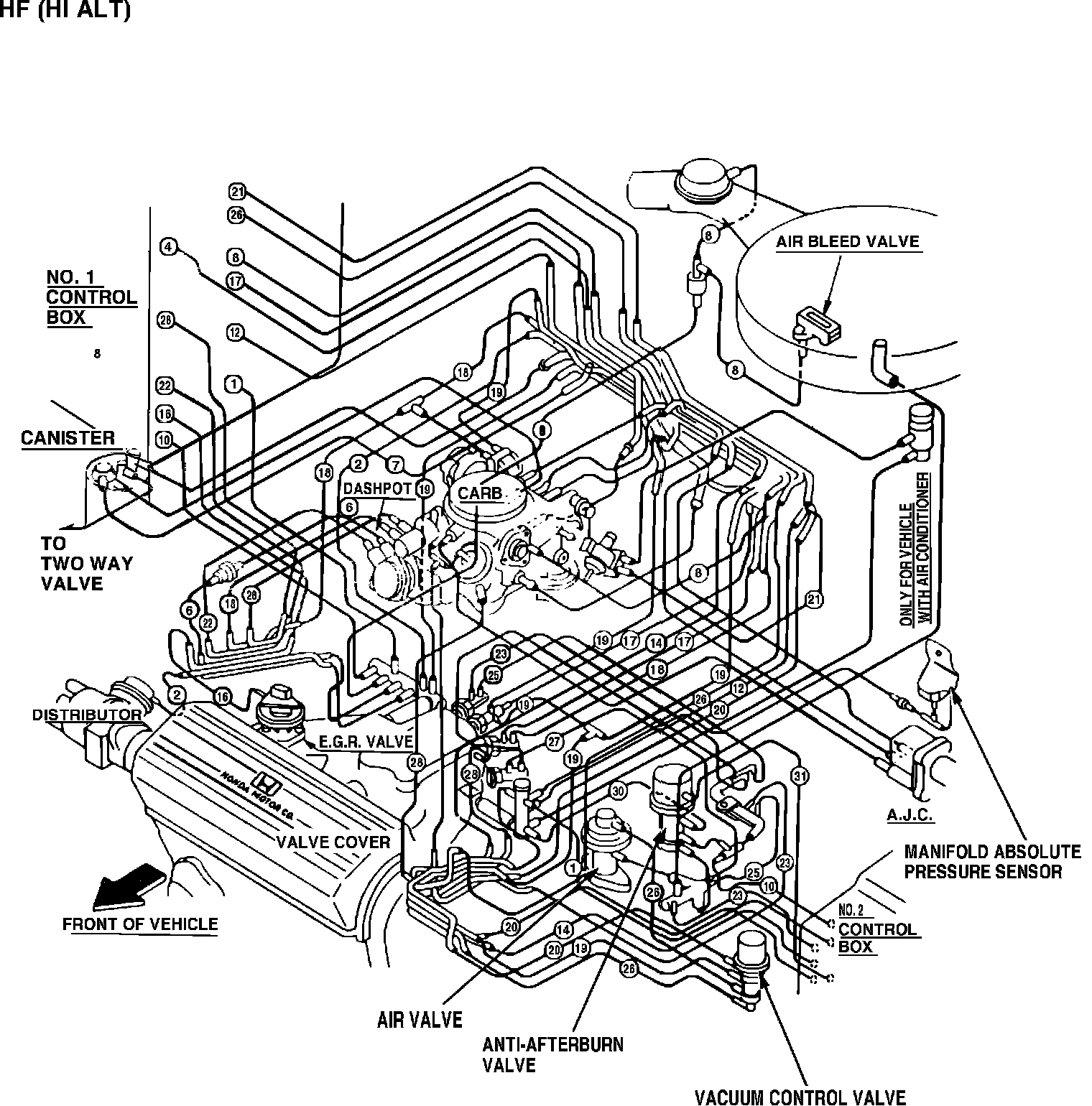

Fig. 34 Engine Compartment Reference Diagram.:

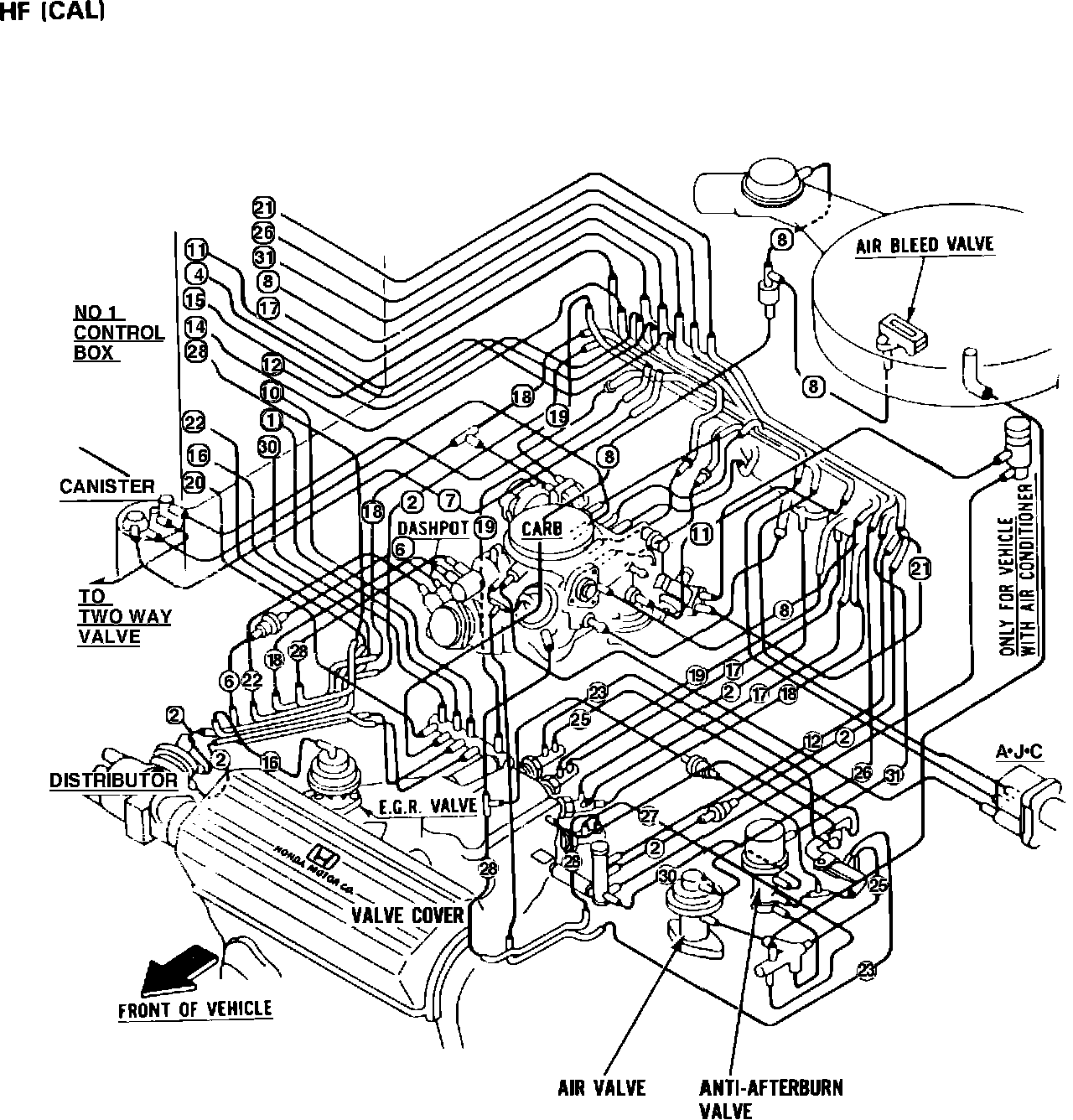

Fig. 52 Engine Compartment Reference Diagram.:



Fig. 50 Engine Compartment Reference Diagram.:
