System Diagram

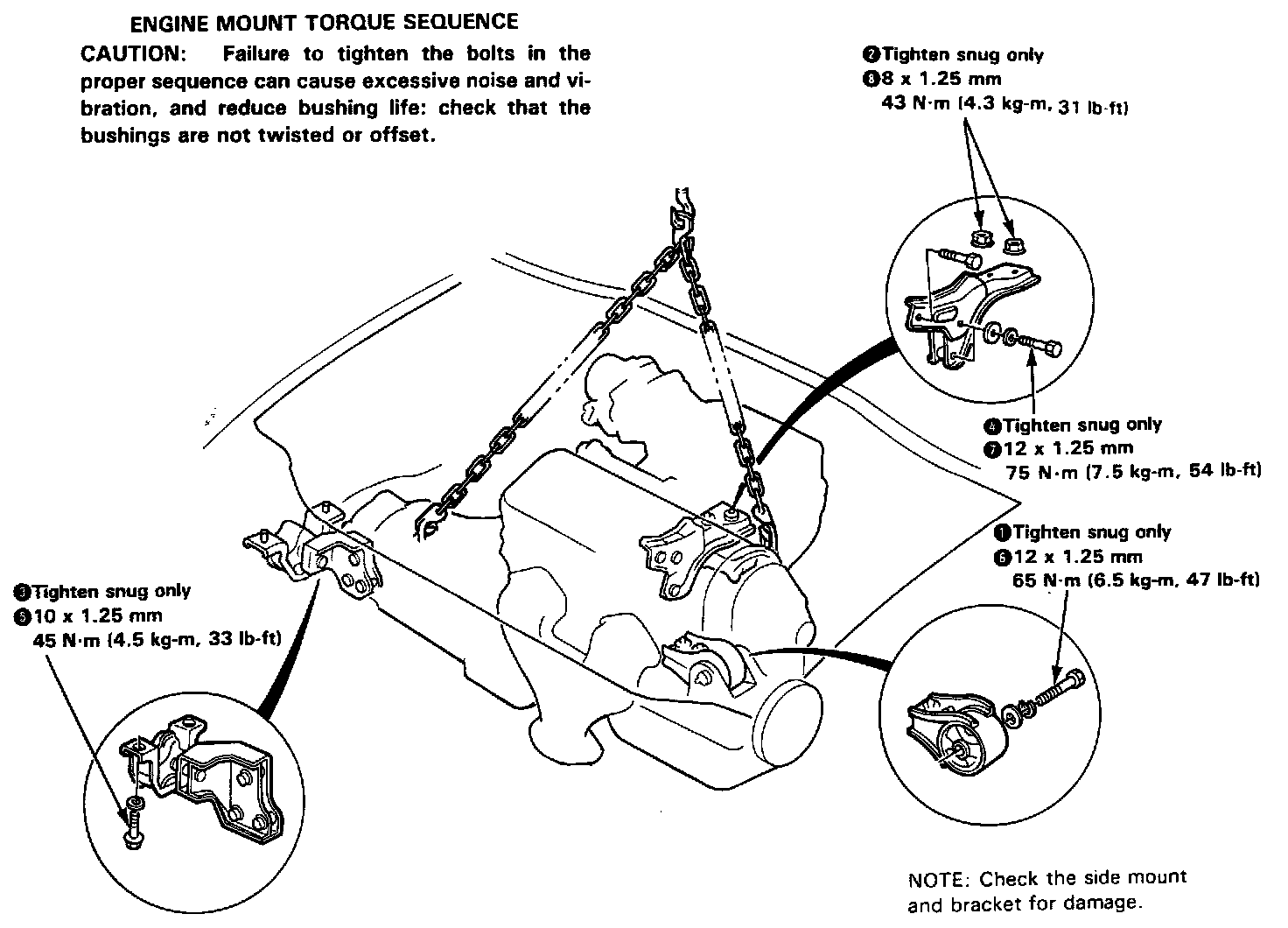

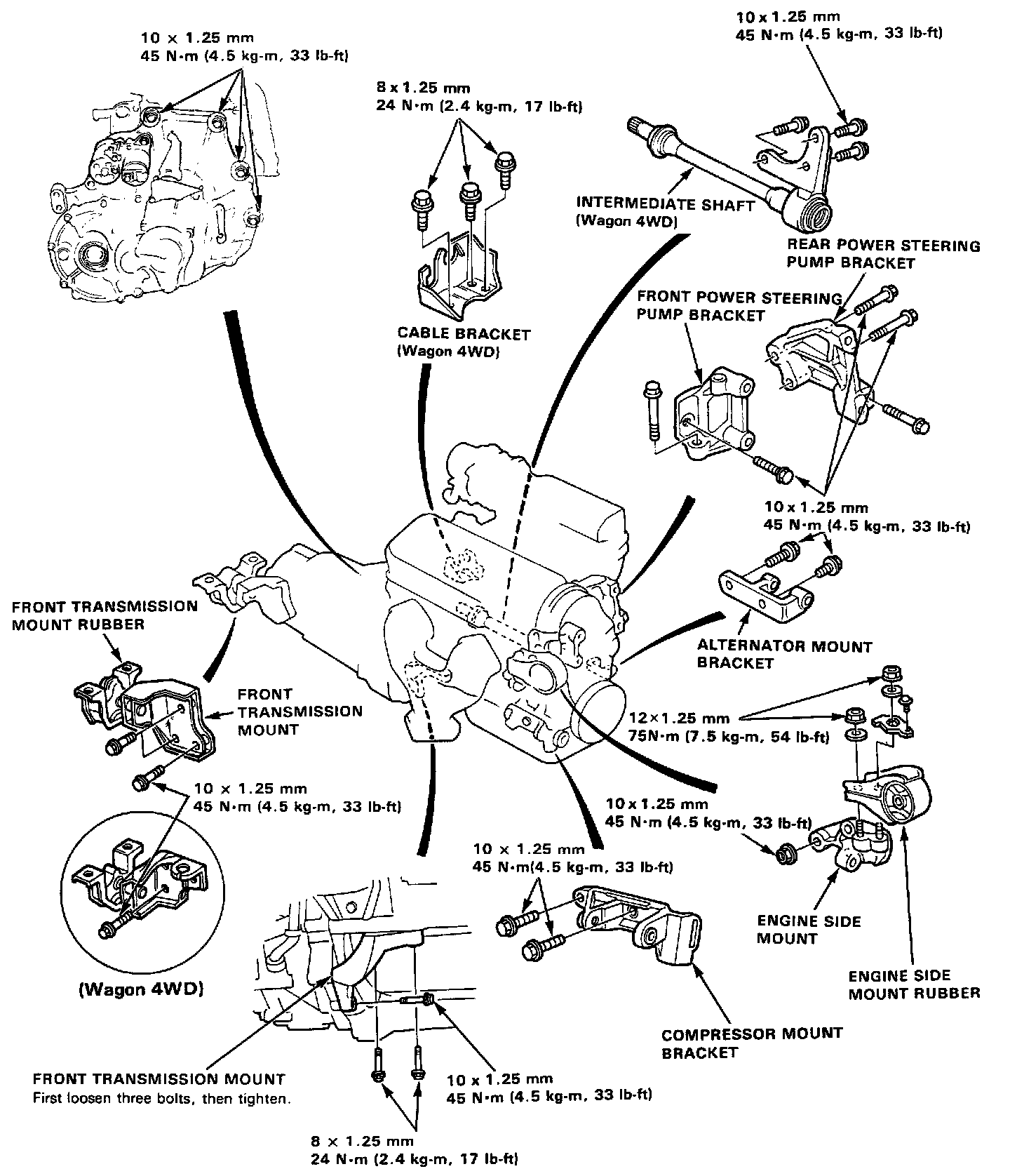

Mount Tightening Sequence:

Cylinder Head Assembly And Cover:

Camshaft, Rockers, Distributor And Fuel Pump:

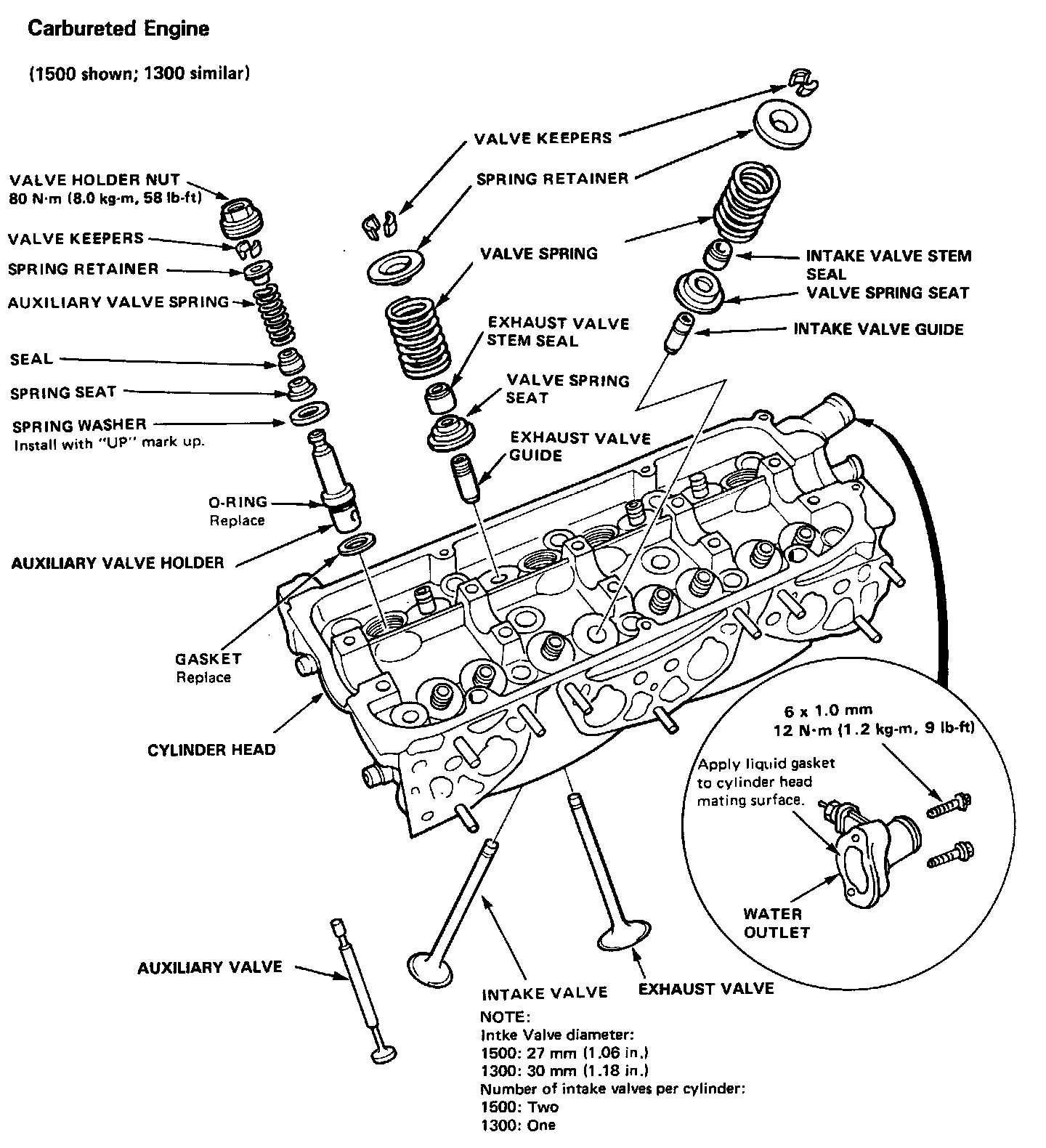

Valves, Guides And Springs, Auxiliary Valve Components:

Timing Belt, Components And Covers:

Crankshaft, Main Bearing Caps And Flywheel/Flex Plate:

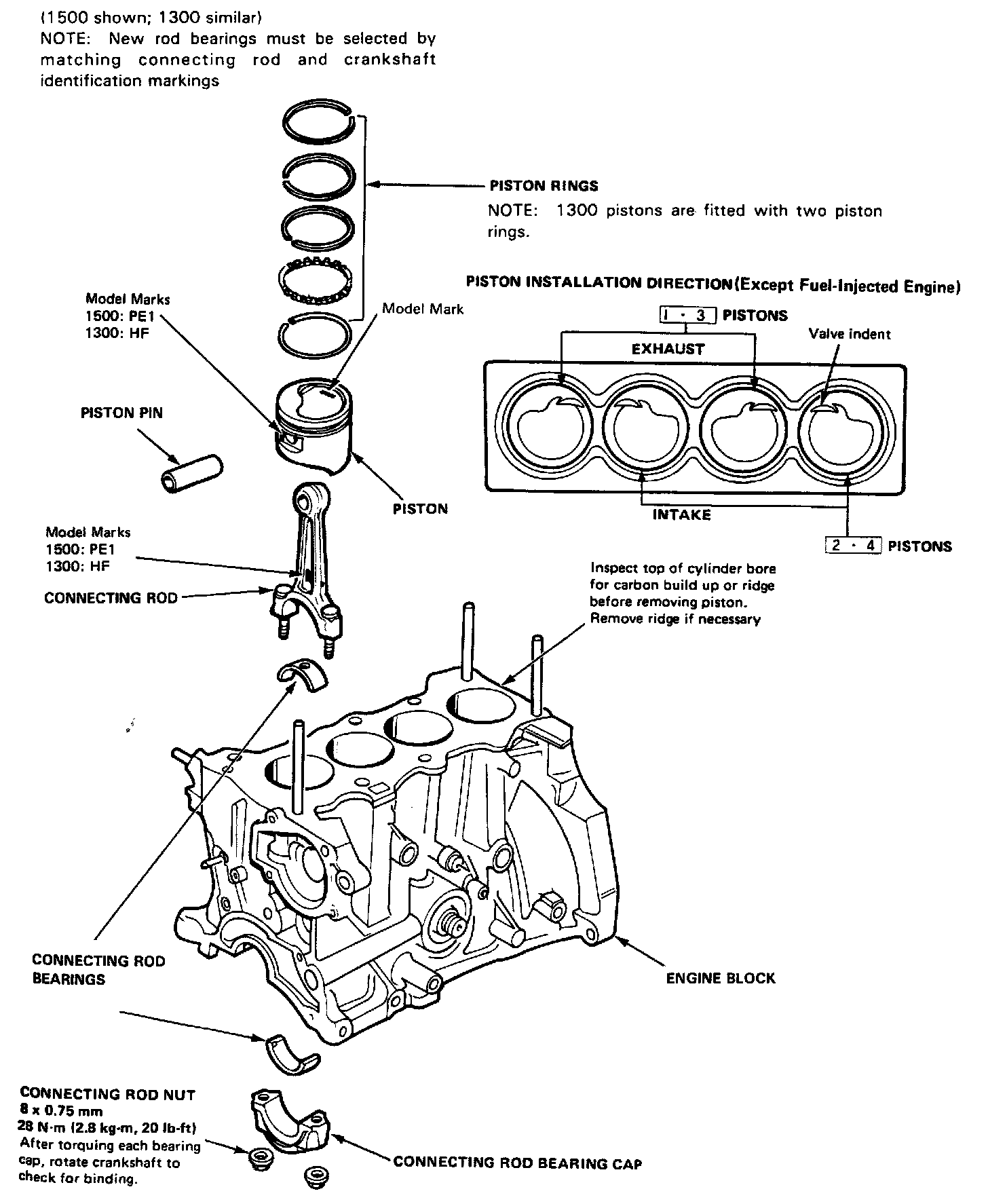

Piston And Connecting Rod:

Oil Pan, Drain Plug, Oil Pressure Sender, Oil Cooler And Oil Pump:

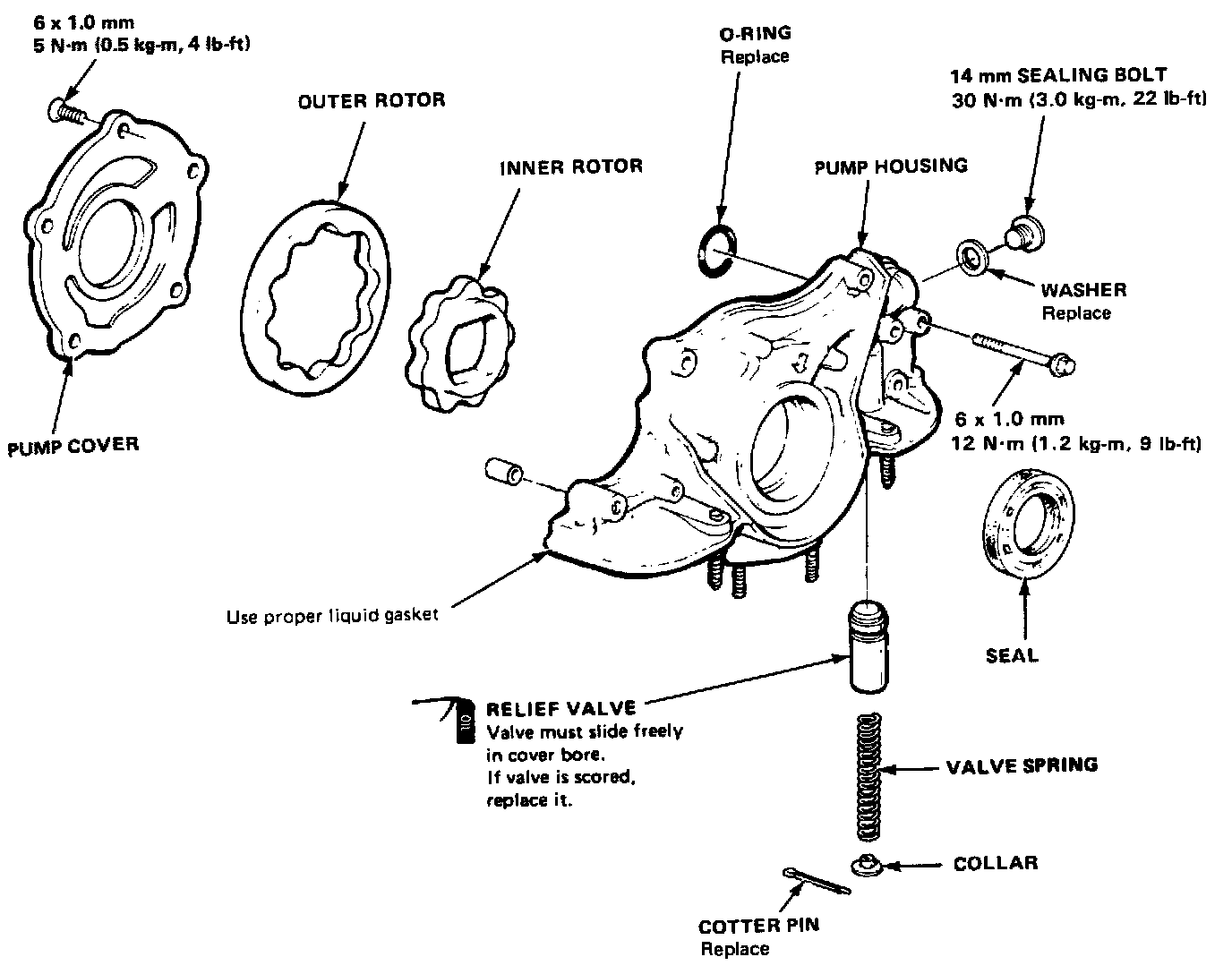

Oil Pump Components:

Intake Manifold And Attached Components - Carbureted Engine:

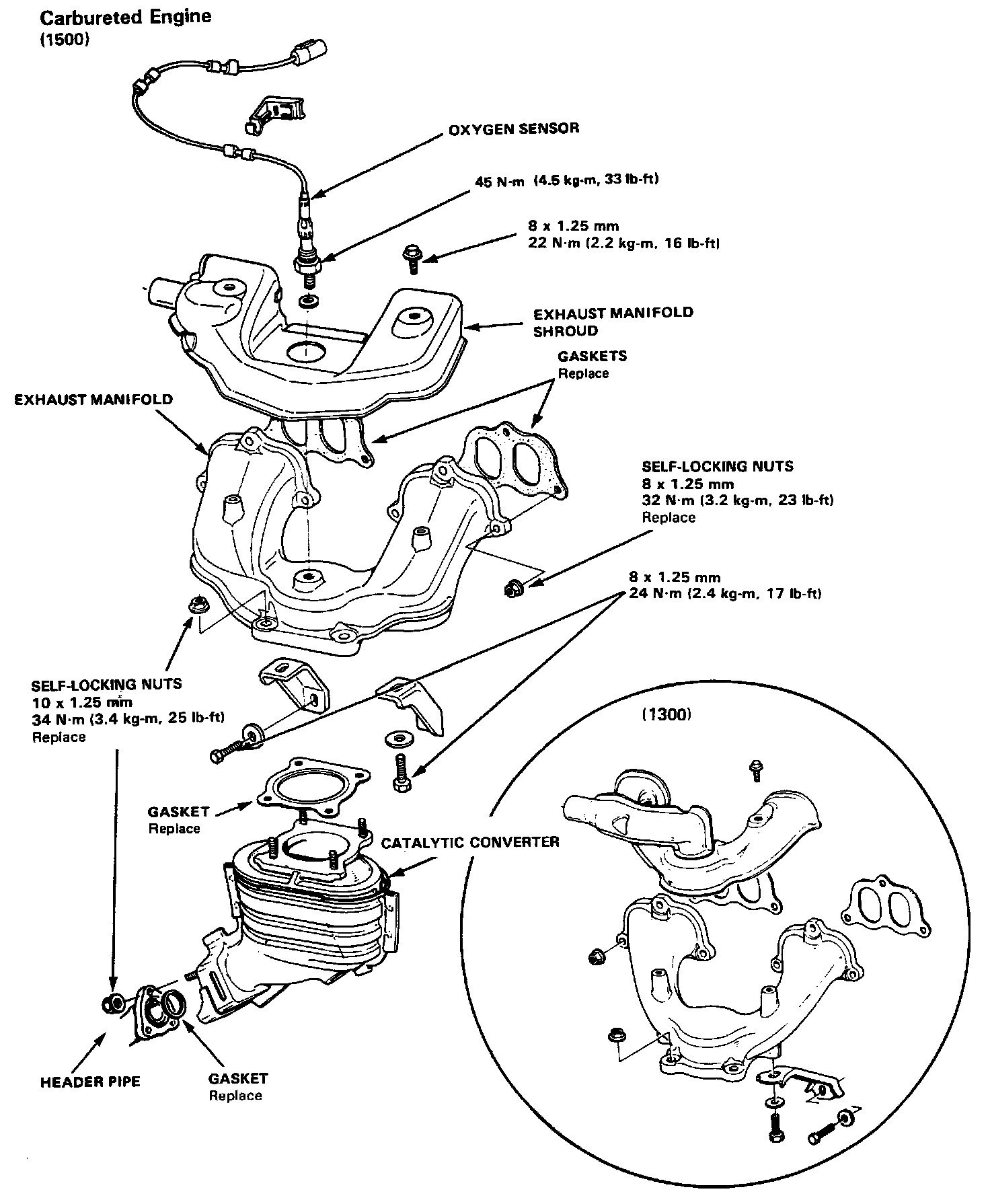

Exhaust Manifold And Attached Components - Carbureted Engine:
