Engine Compartment Reference Diagram

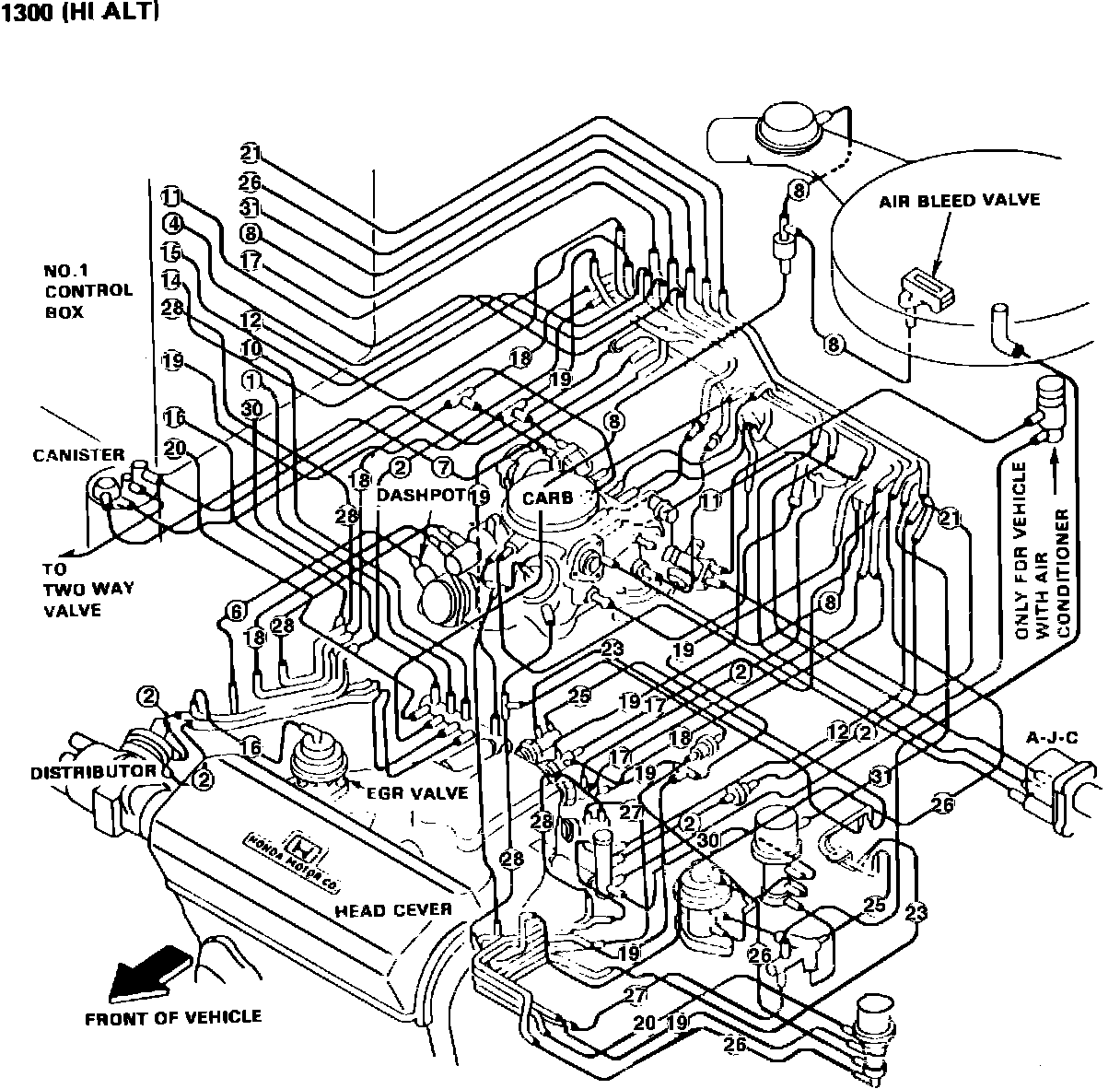

Fig. 32 Engine Compartment Reference Diagram. High Altitude:



Fig. 30 Engine Compartment Reference Diagram. Exc. High Altitude:
