Vacuum Hose Routing Diagram
Vacuum Hose Routing Diagram

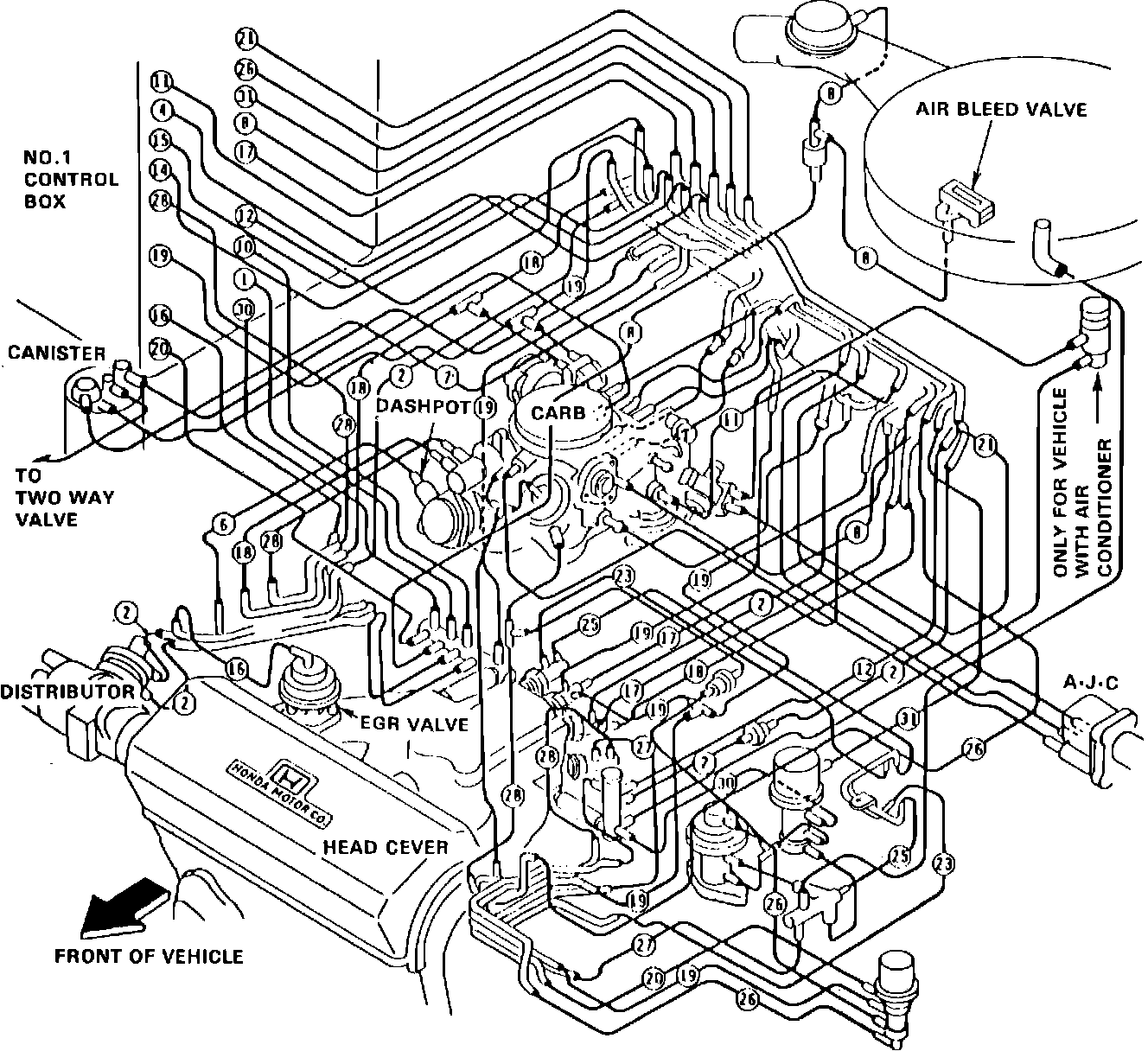

Fig. 574 Vacuum Hose Routing Diagram (M/T, CA/FEDERAL):
Fig. 576 Vacuum Hose Routing Diagram (M/T, HI ALT):
