Vacuum and Electrical Connections Schematic

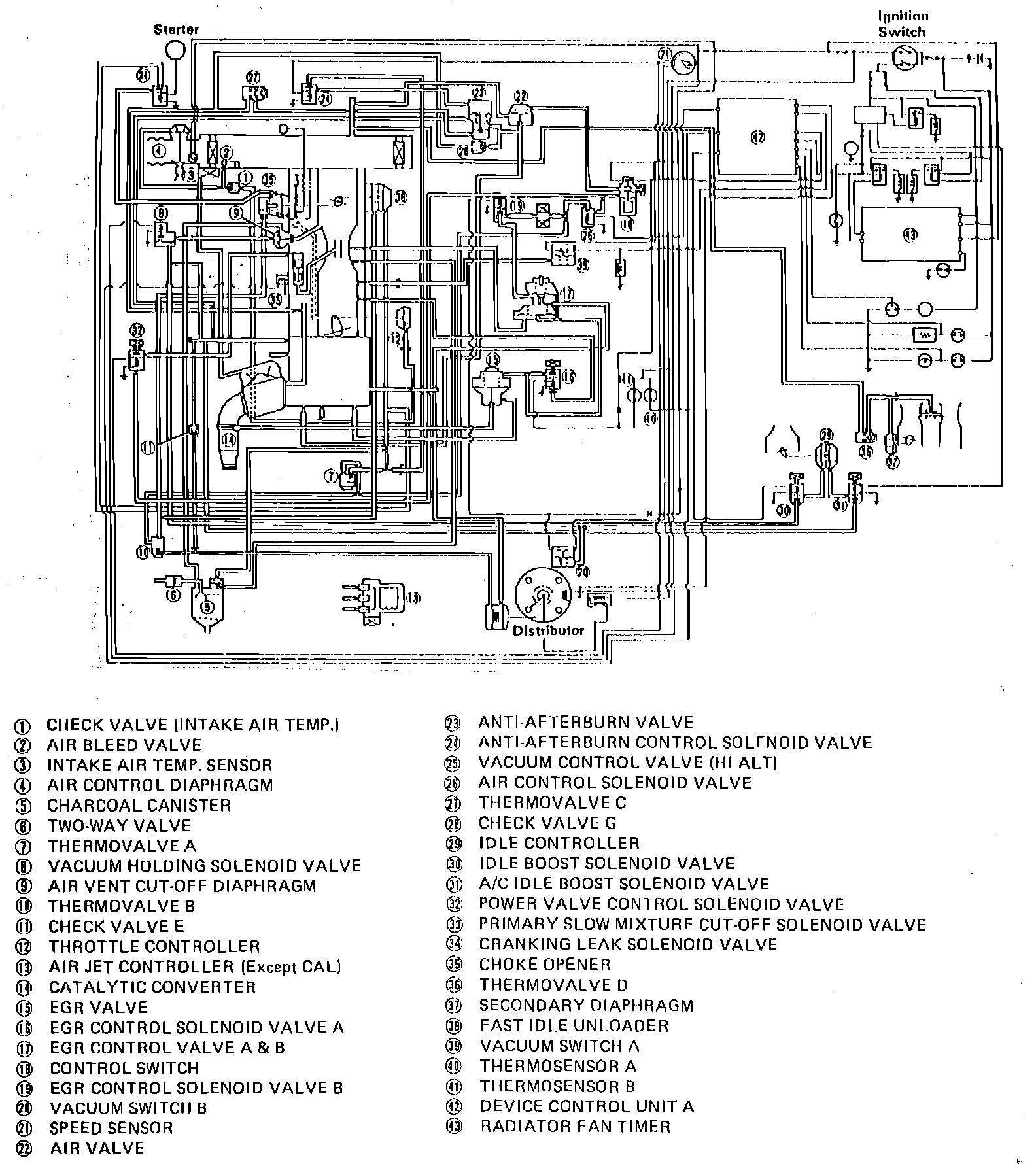

Fig. 590 Vacuum And Electrical Connection Schematic (HI ALT):



Fig. 591 Vacuum And Electrical Connections Schematic (CA/FEDERAL):
