Control Box Reference Diagram
Control Box Reference Diagram

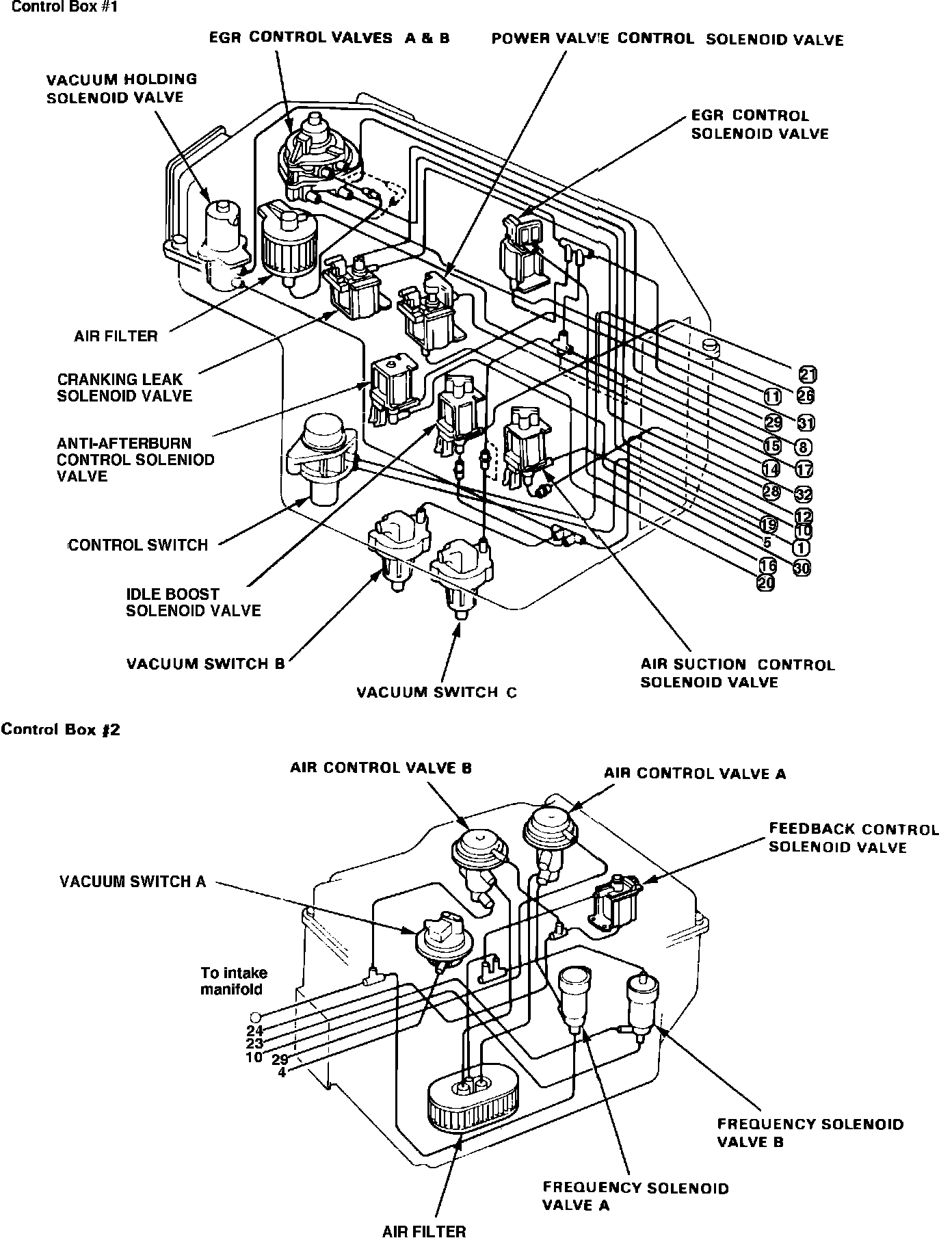

Fig. 39 Control Box Reference Diagram. 2 W/D:
Fig. 35 Control Box Reference Diagram. W/CARB And A/T:
