Vacuum and Electrical Connections Schematic

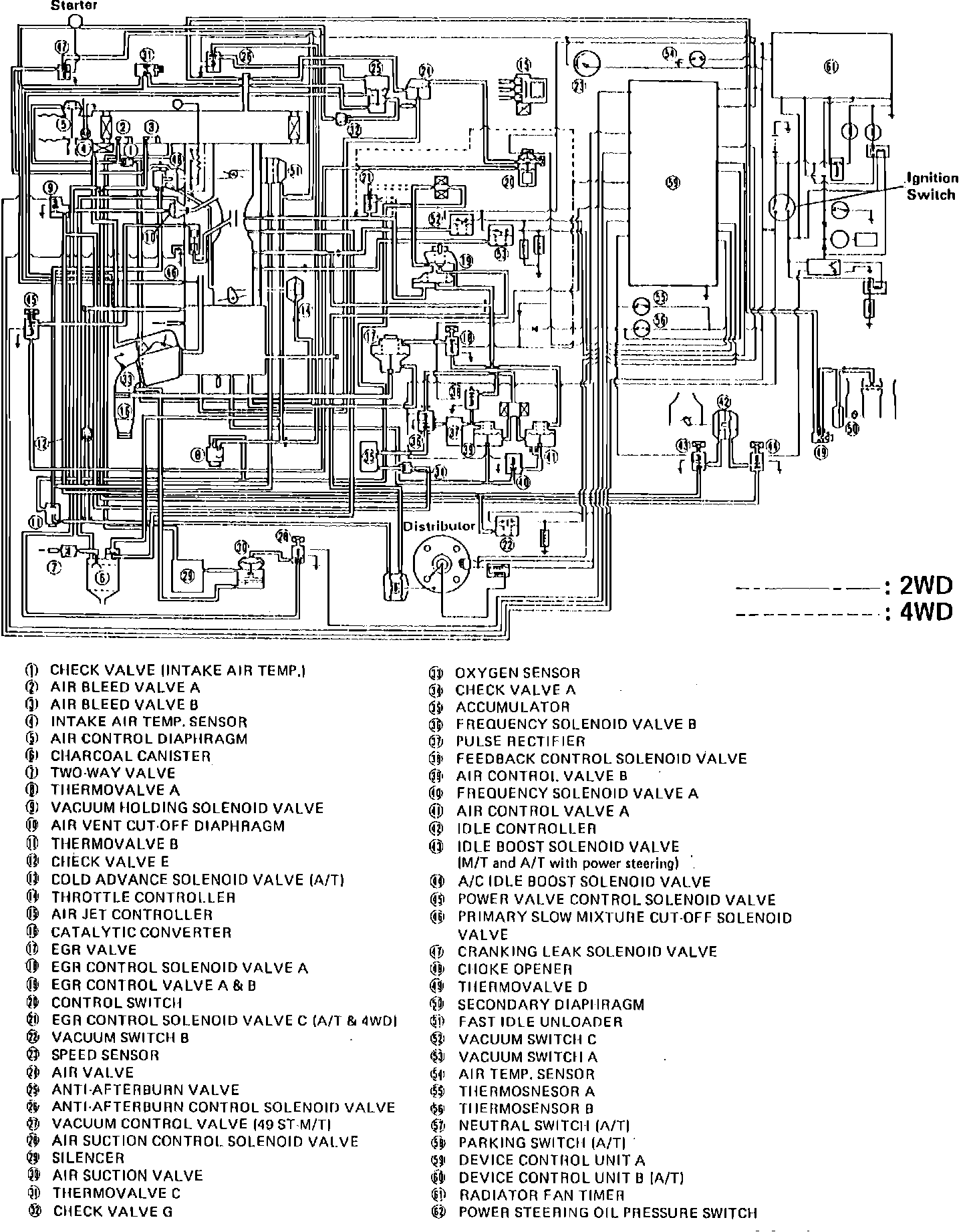

Fig. 594 Vacuum And Electrical Connections Schematic (M/T, FEDERAL/HI ALT):

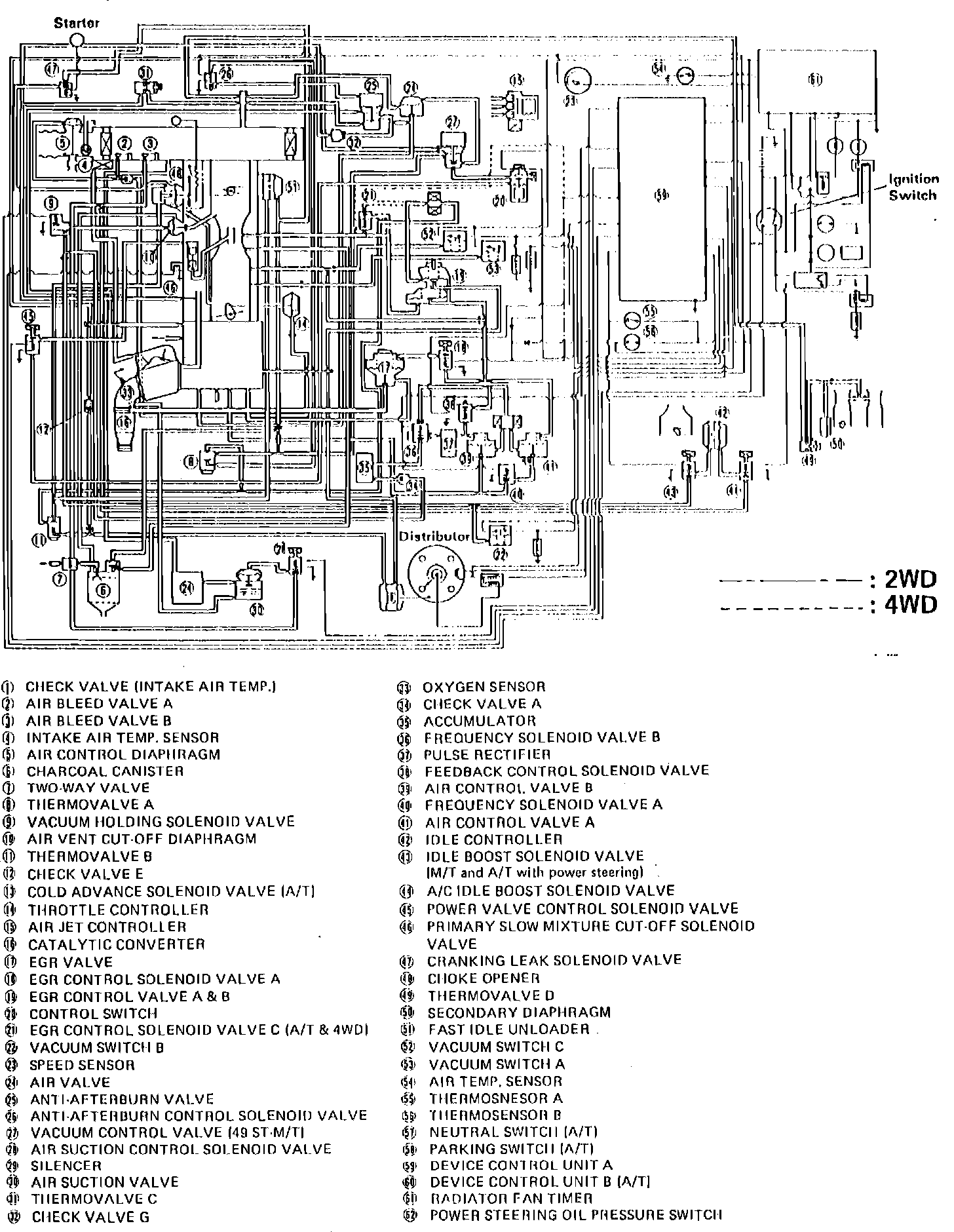

Fig. 593 Vacuum And Electrical Connections Schematic (M/T, CA):



Fig. 592 Vacuum And Electrical Connections Schematic (A/T):
