Control Box #1 & #2 COMP. Locations (2WD M/T, Fed/Hi Alt)
Control Box #1 & #2 COMP. Locations (2WD M/T, Fed/Hi Alt)

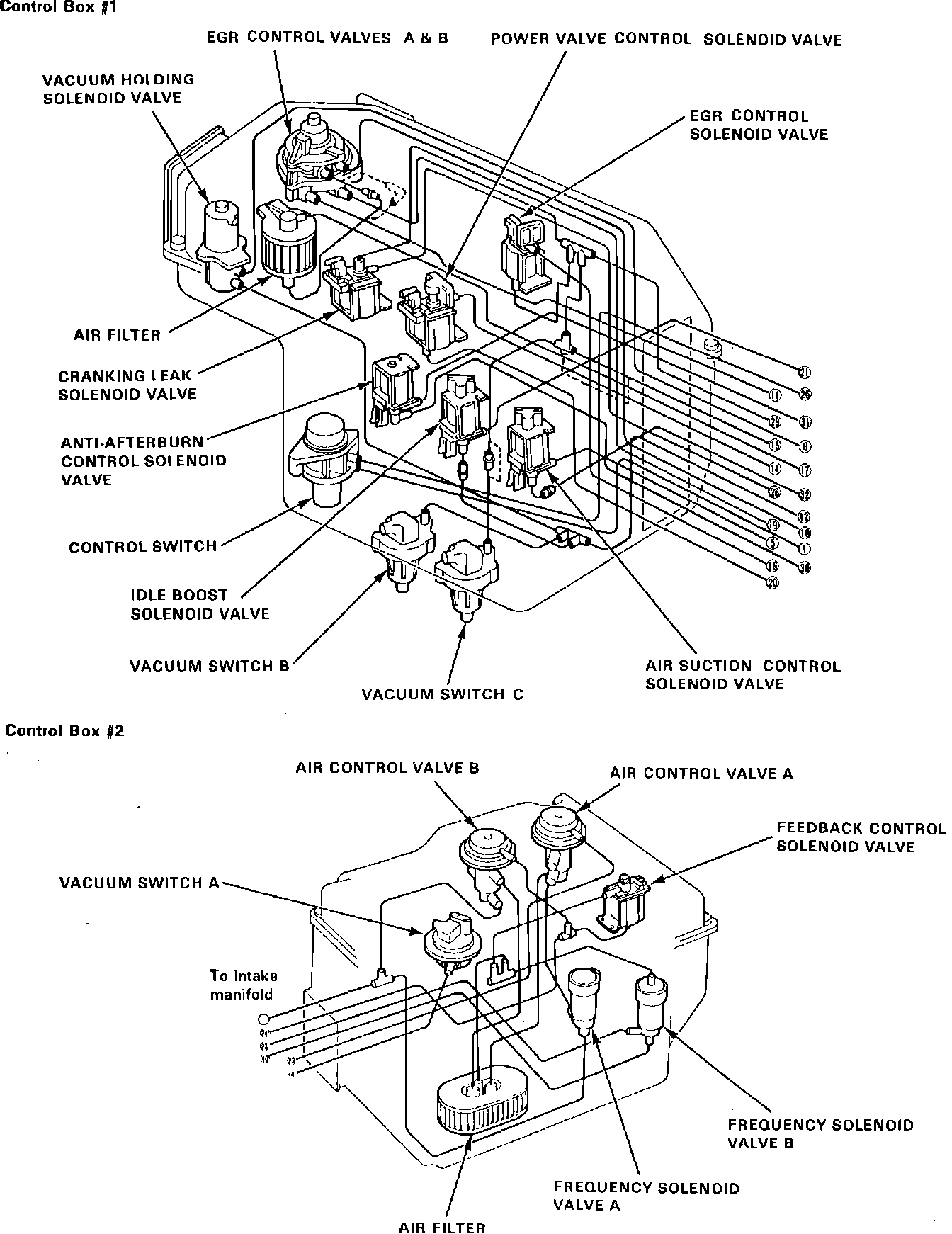

Fig. 579 Control Box #1 & #2 (2WD M/T, FED/HI ALT):
