Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1987
>>
Civic Hatchback L4-1488cc 1.5L SOHC (D15A2) 3V Carb
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Locations
>>
Control Box #1 & #2 Component Locations ( W/Power Steering A/T)
Control Box #1 & #2 Component Locations ( W/Power Steering A/T)

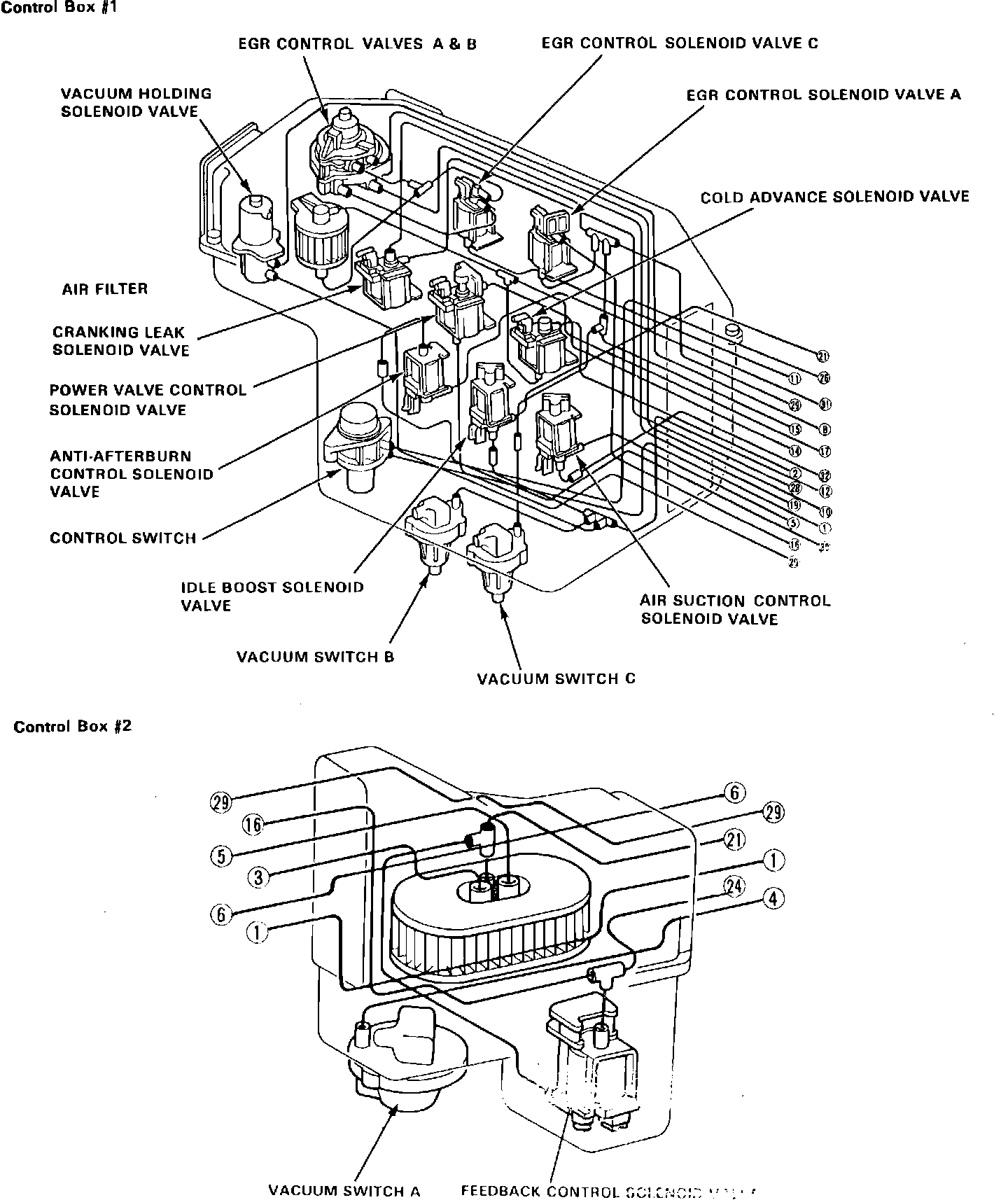

Fig. 589 Control Box #1 & #2 (W/POWER STEERING A/T):
