Vacuum and Electrical Connections Schematic
>>
Emissions System
Emissions System

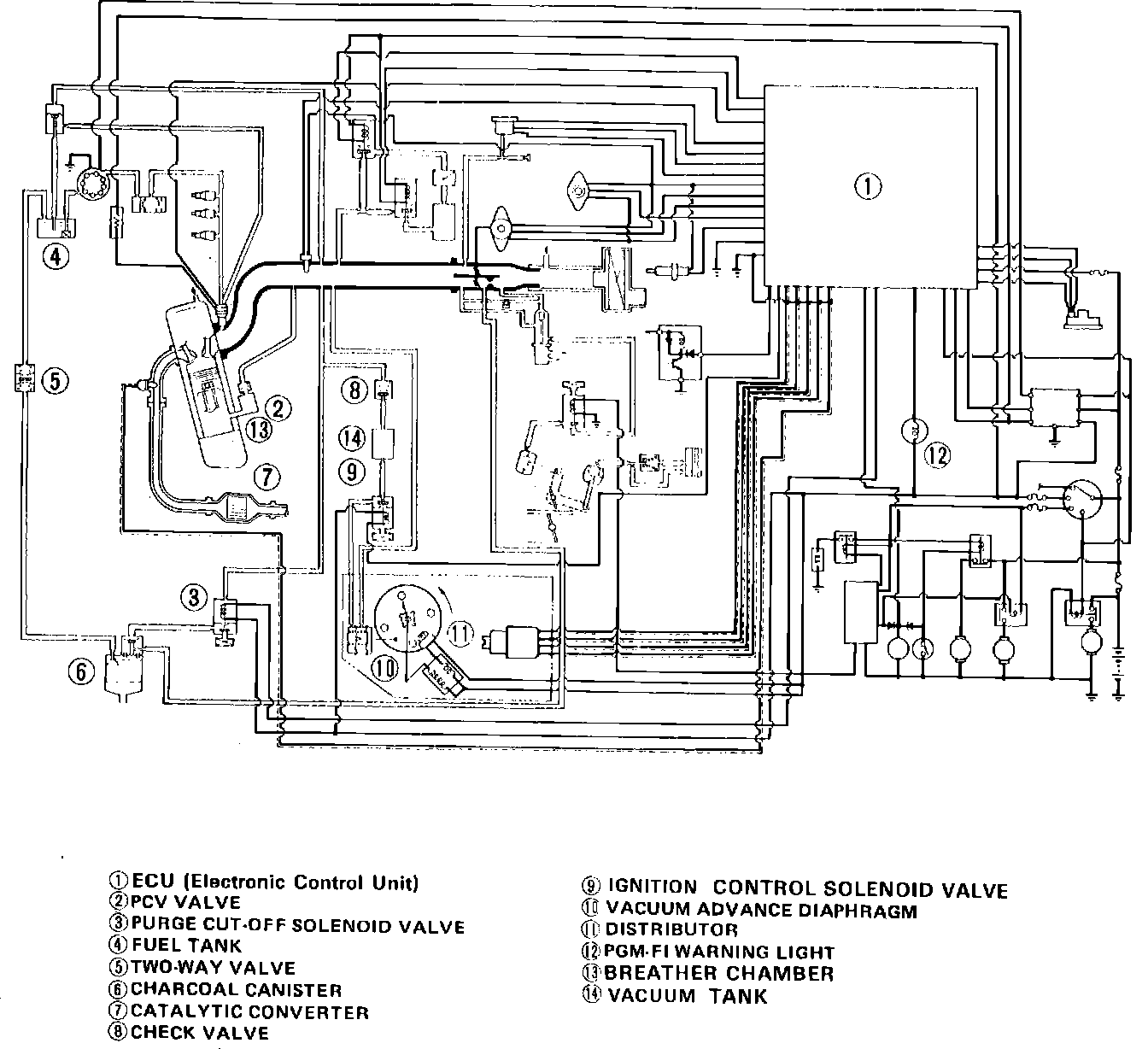

Fig. 610 Vacuum And Electrical Connections Schematic (Emissions):
