Vacuum and Electrical Connections Schematic
>>
Fuel System
Fuel System

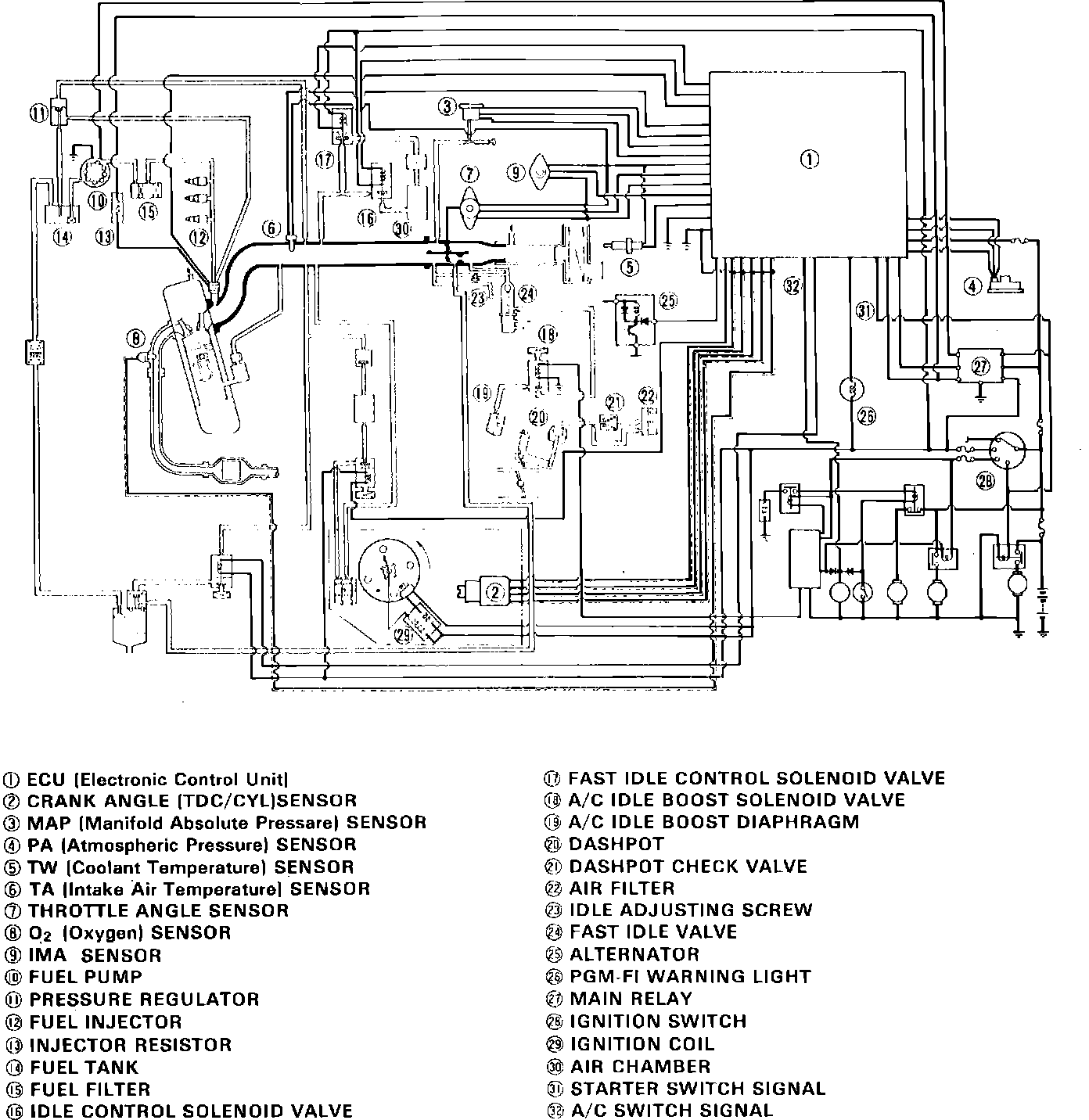

Fig. 606 Vacuum And Electrical Connections Schematic (Fuel):
