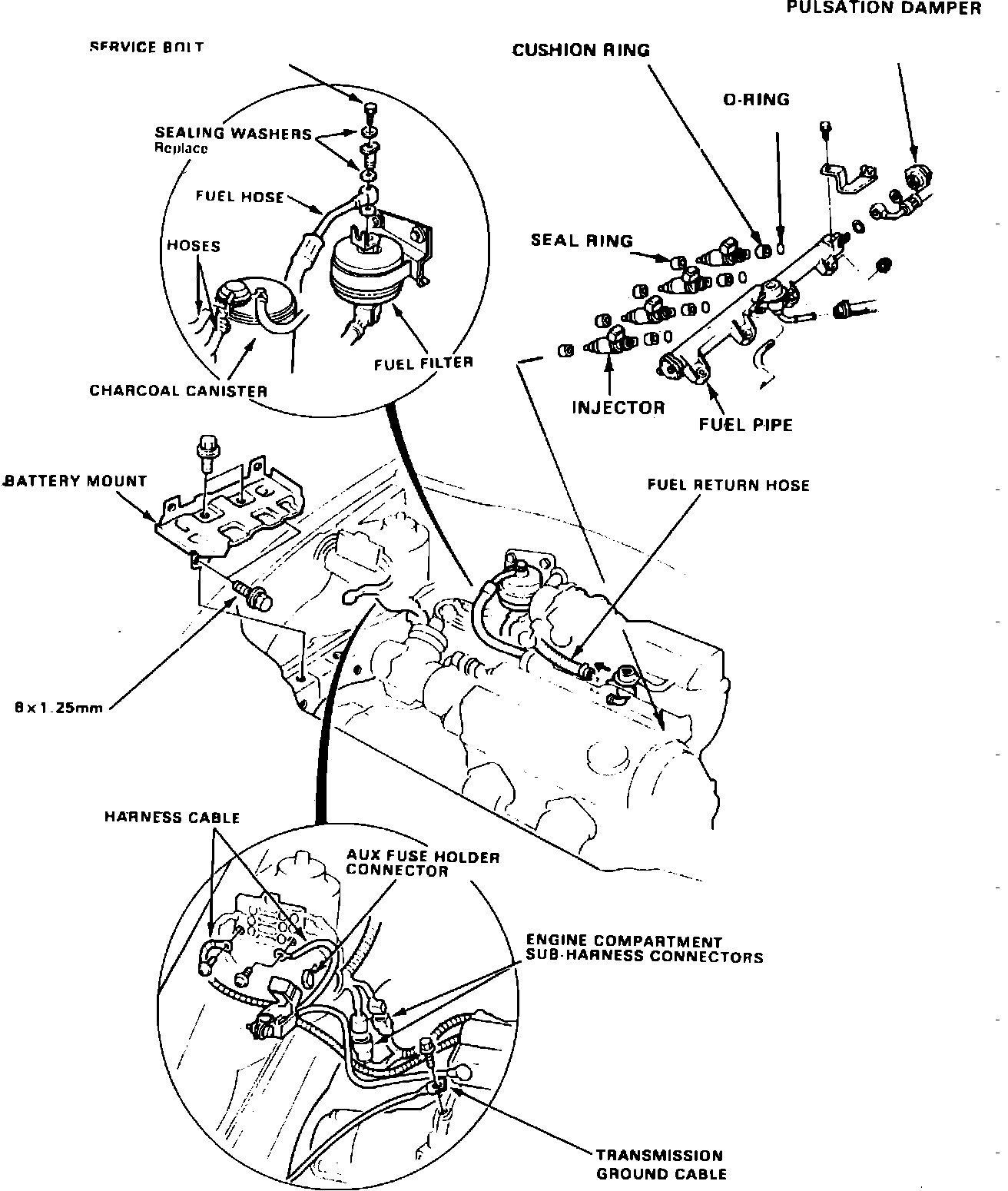

Fuel Injector: Locations

Fuel & Emissions System Components (Part 1 Of 3).:

Fuel & Emissions System Components (Part 1 Of 3).:

Fuel & Emissions System Components (Part 1 Of 3).:

On Top Center Of Engine

Applicable to: 1987 Civic w/Fuel Injected Engine
