Engine COMP. Reference Diagram
Engine COMP. Reference Diagram

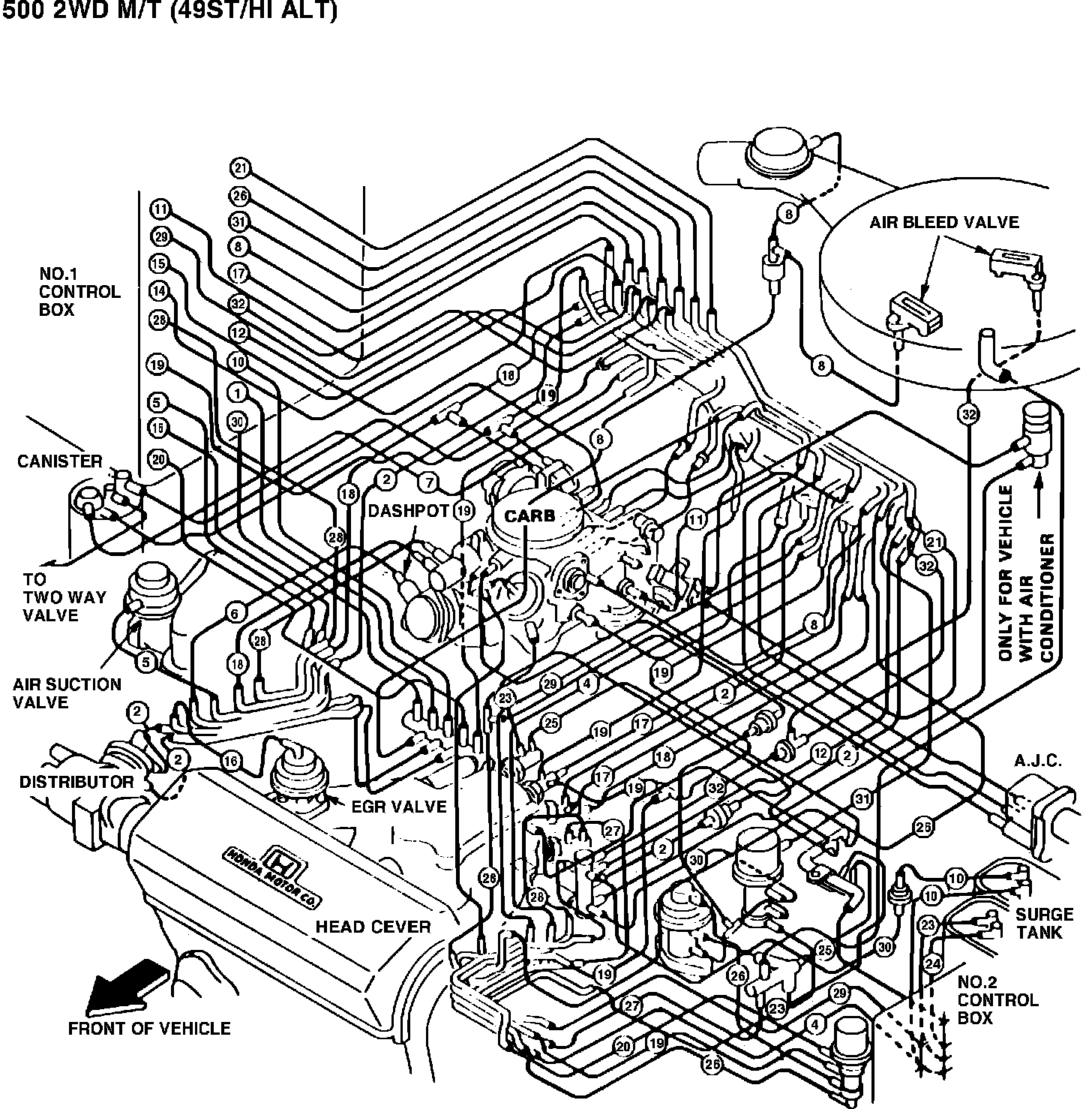

Fig. 38 Engine Compartment Reference Diagram W/CARB And MT Exc Ca:
