Mainshaft Bearing

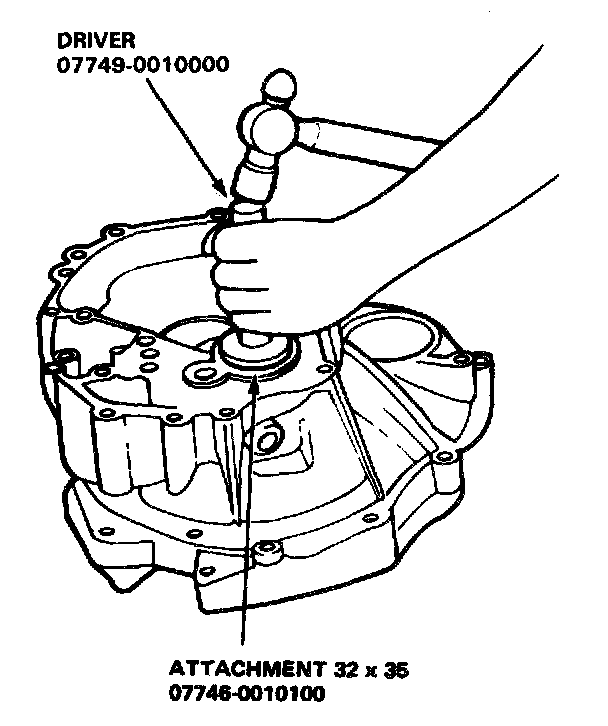

1. Remove the mainshaft bearing and seal from the clutch housing by driving out with a drift.

NOTE: Always install a new bearing and seal. Do not reinstall old ones.




2. Drive in the mainshaft oil seal.

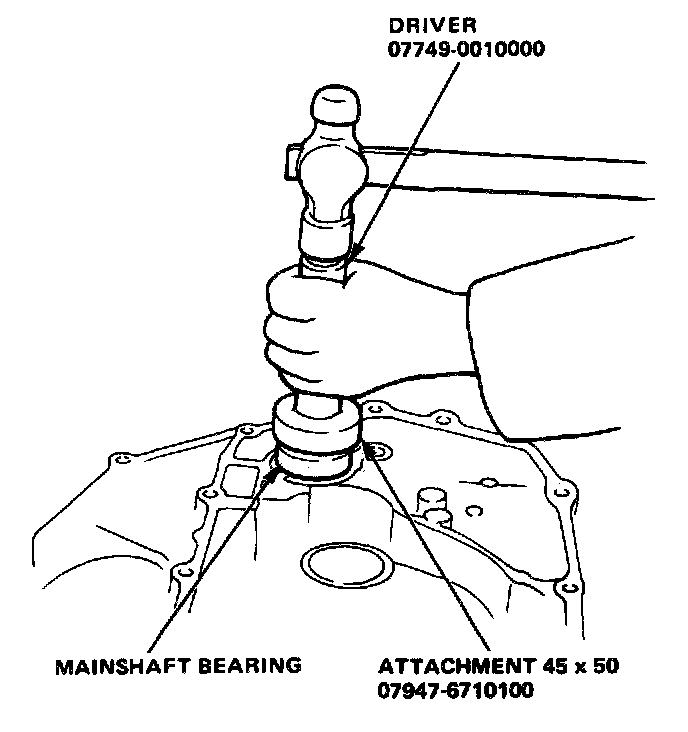

3. Drive in the mainshaft bearing with a support block placed under the case to support the bearing boss.
