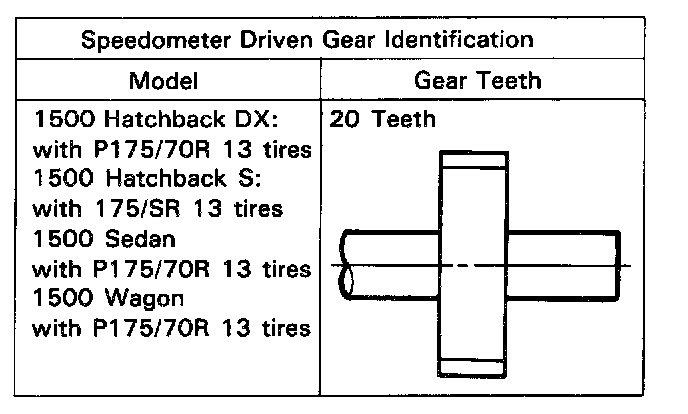

Speedometer Driven Gear

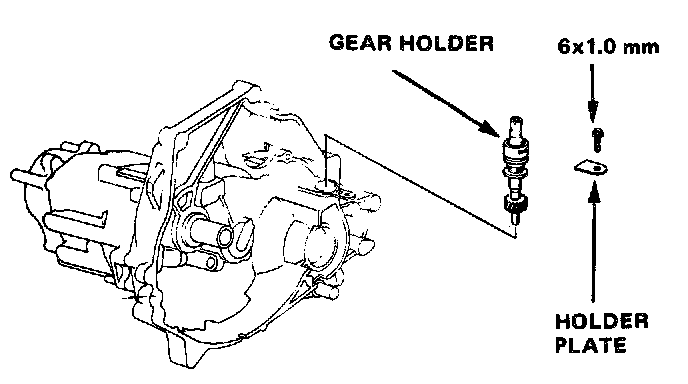

1. Remove the 6 x 1.0 mm bolt, then pull speedometer holder out.




2. Remove the speedometer driven gear from the gear holder.

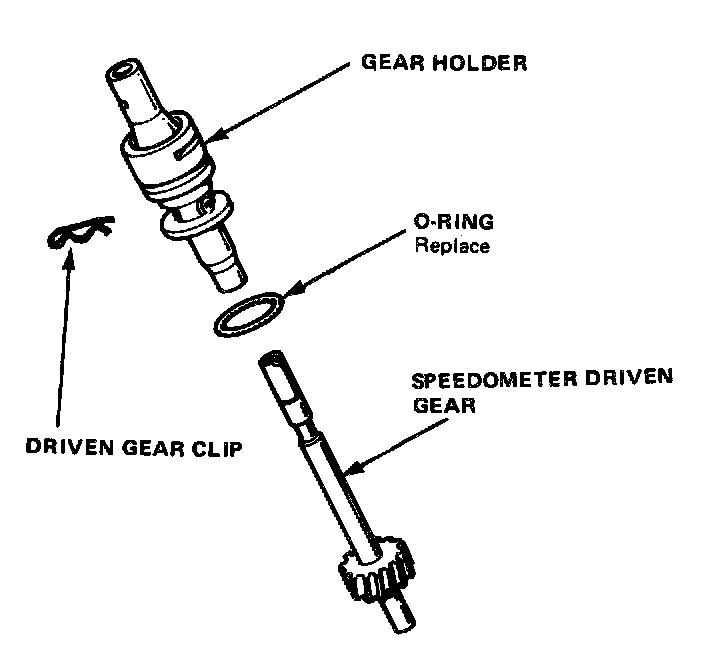

3. Remove the driven gear clip then the speedometer driven gear. Check the gear for wear, and if excessively worn, replace it.




4. Assemble the gear holder and install the new speedometer driven gear.

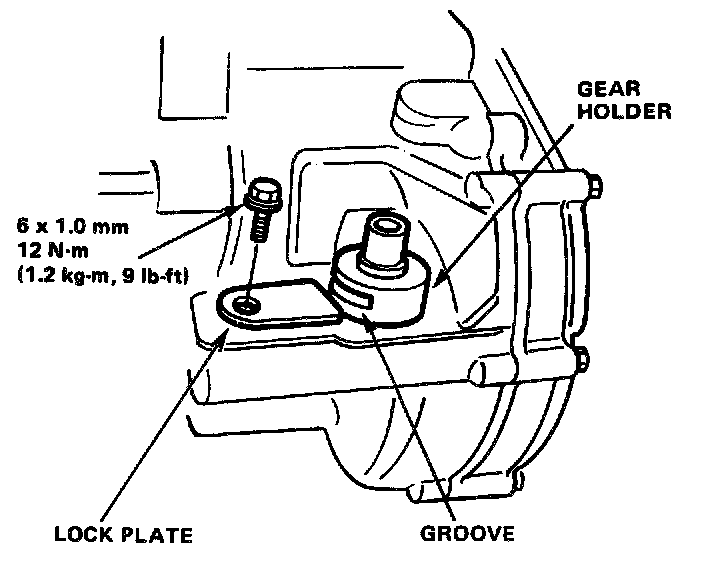

5. Align the slot in the gear holder with the lock plate and then set the holder in the clutch housing. Tighten the lock plate with the 6 x 1.0 mm bolt.
