Removal and Installation

REMOVAL/INSTALLATION

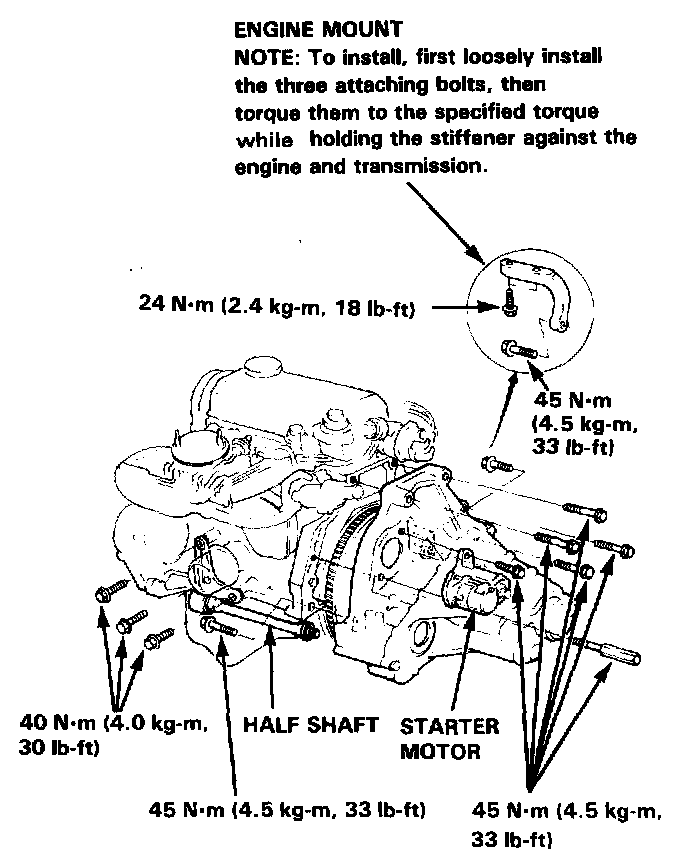

NOTE: The transmission must be removed with the engine. Service and Repair




1. Remove the starter motor.
2. Remove the three engine mount bolts.
3. Remove the transmission mounting bolts.
4. Remove the half shaft.
5. Install the transmission in the reverse order of removal.
