Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1987
>>
Prelude L4-1829cc 1800 ES,ET
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Complete Body & Chassis Wiring Circuit
>>
Part 5 of 5
Part 5 of 5

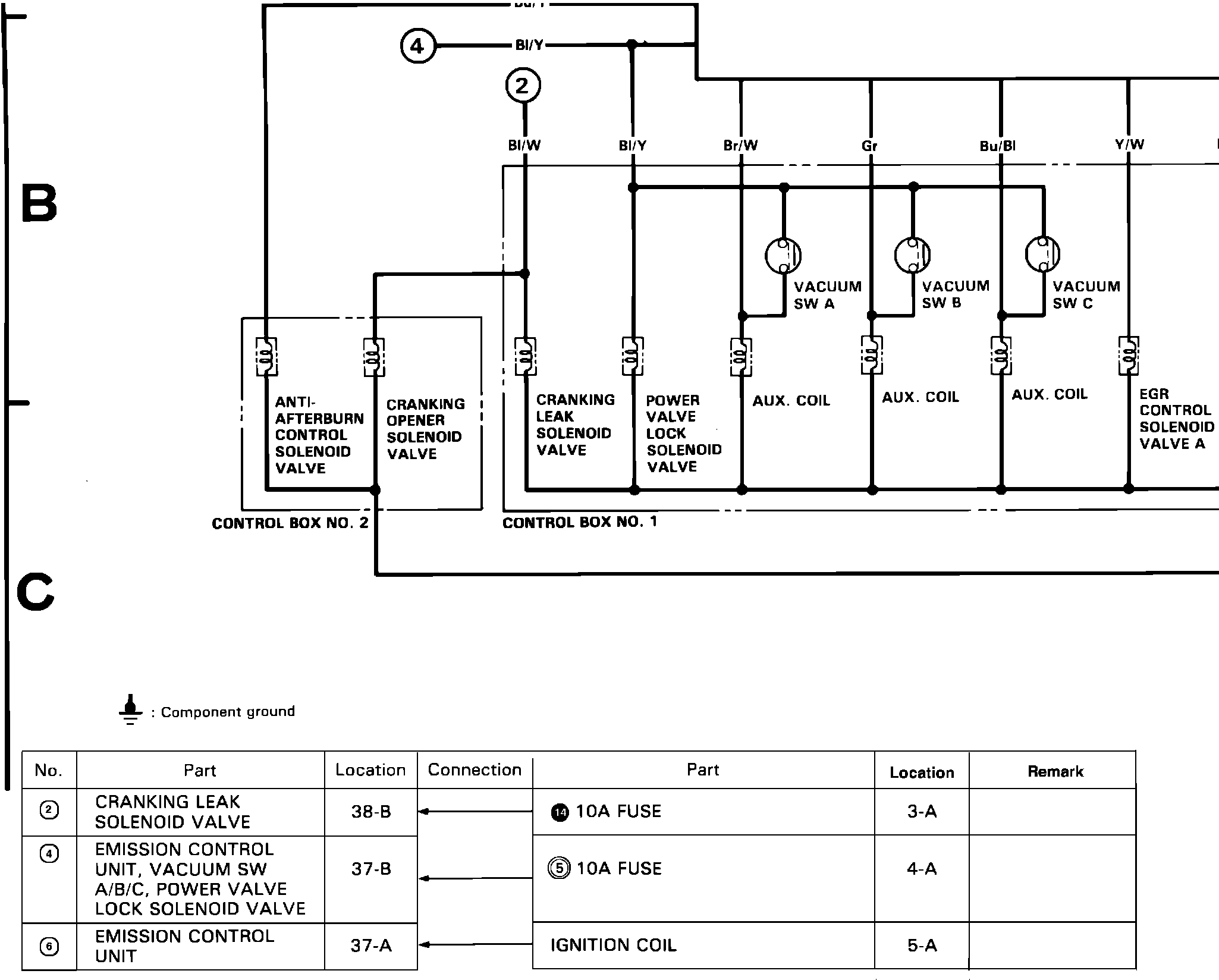

"�c��c��cT �ca"�cFig. 14ef Complete Body & Chassis Wiring Circuit. W/Carbureted Engine:
