Torque Specifications

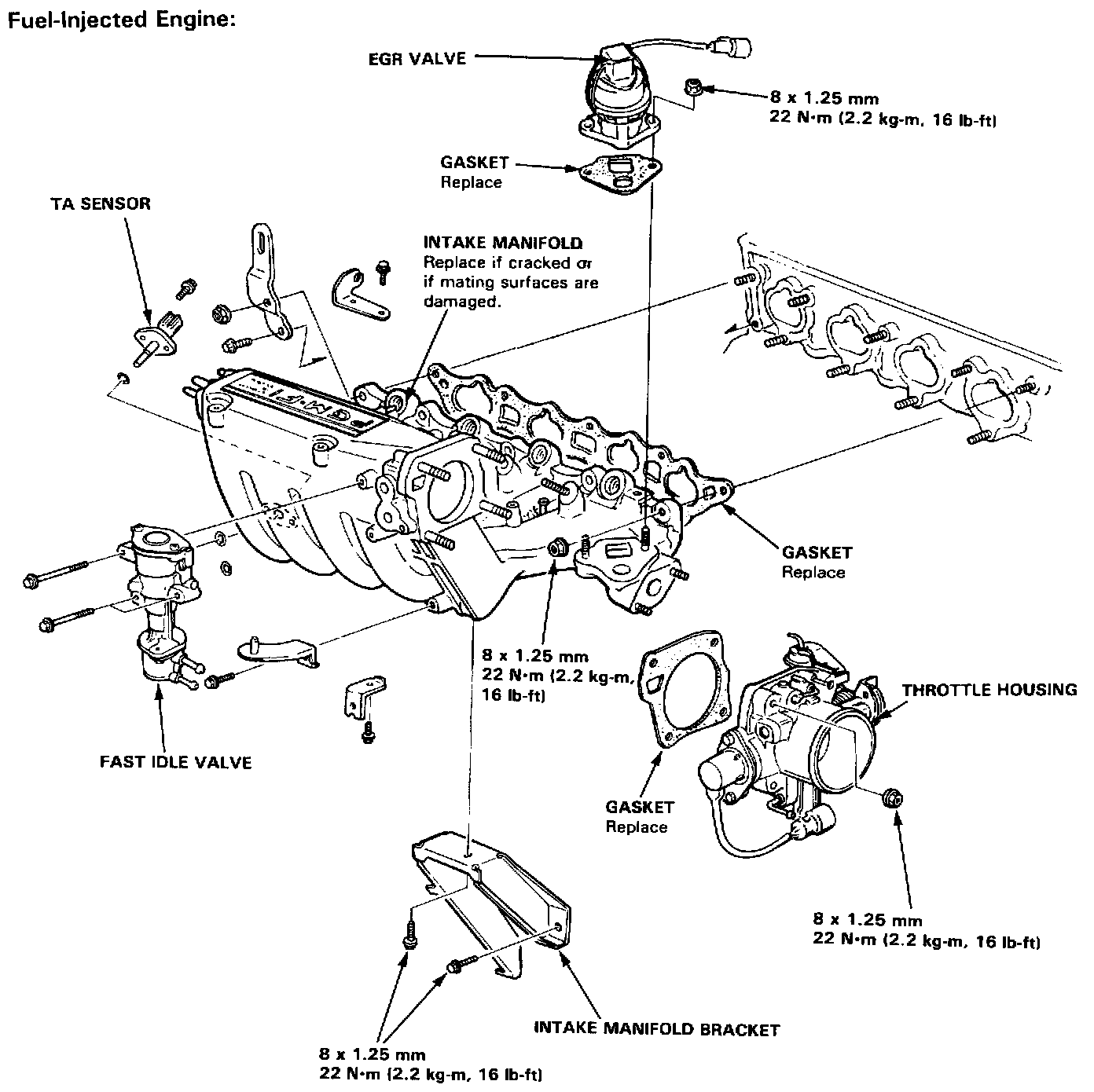

Intake (FUEL INJECTED):

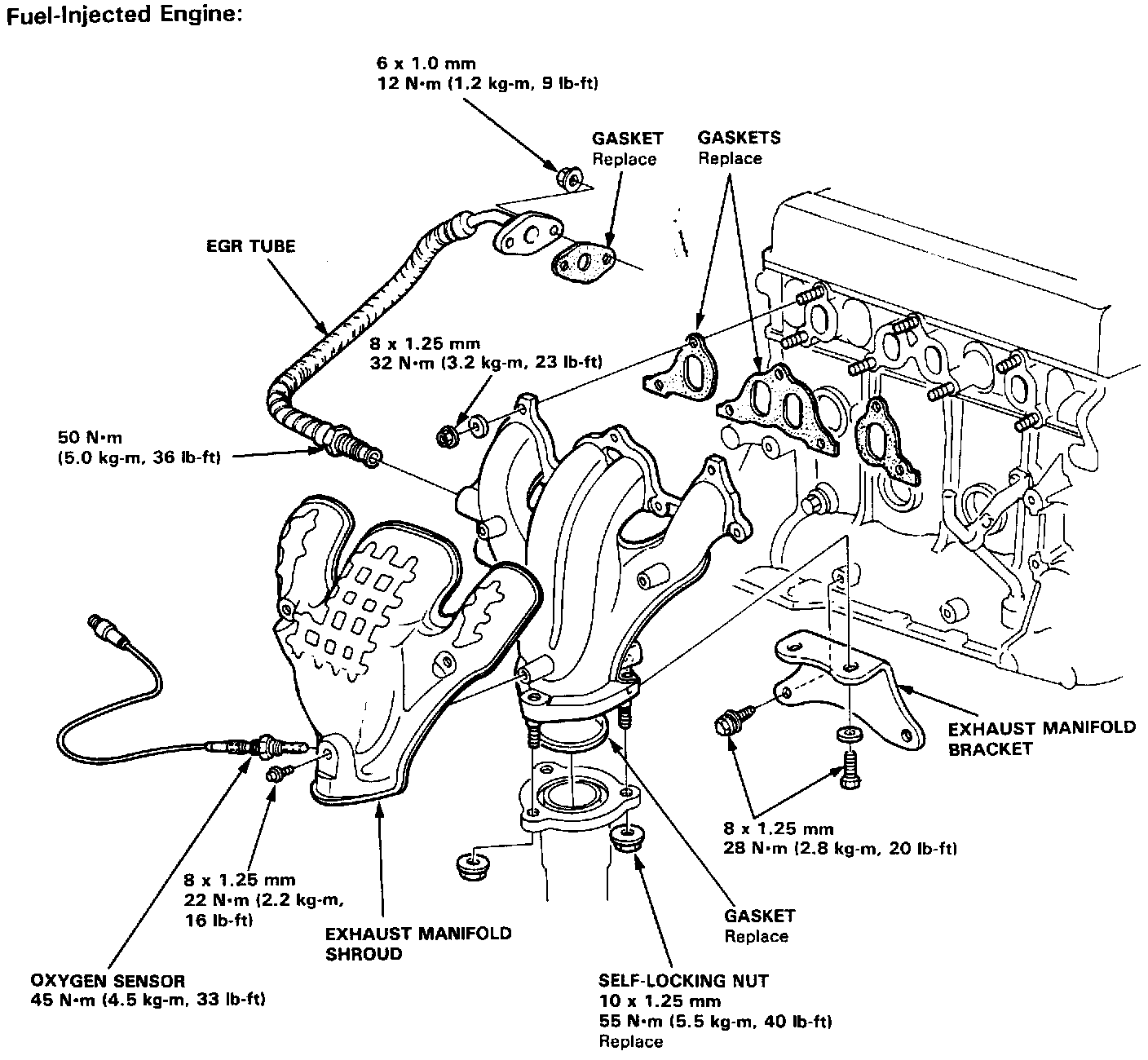

Exhaust Manifold (FUEL INJECTED):

Intake/Exhaust Manifolds (CARB):

Upper Engine (FUEL INJECTED):

Upper Engine (CARB):

Valves, Rocker Arm Assy, Distributor (FUEL INJECTED):

Valves, Rocker Arm Assy, Distributor (CARB):

Rocker Arm Assy - Tighten Each Bolt 2 Turns At A Time In The Sequence Shown:

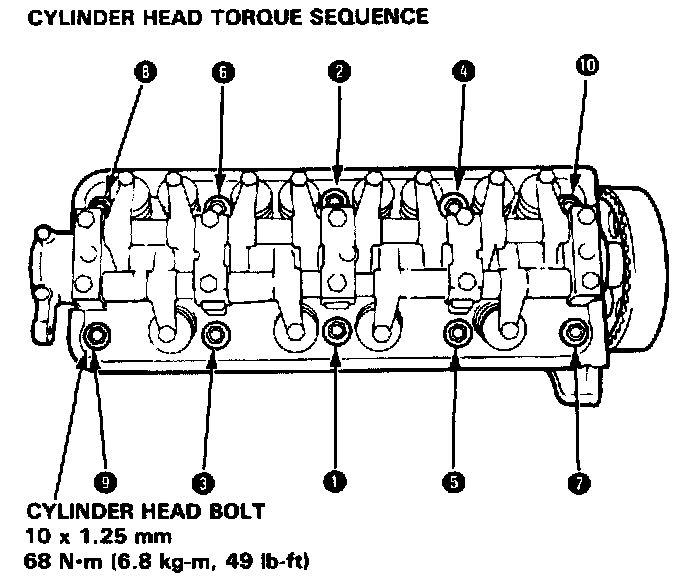

Cylinder Head Bolts - Tighten In 2 Steps In The Sequence Shown:

Torque cylinder head bolts in 2 steps, following sequence shown in figure:

1st step: torque bolts to 22 ft. lbs.
2nd step: torque bolts to 49 ft. lbs.

Timing Components:

Lower Engine:

Piston And Connecting Rod:

Oil Pump And Pickup, Oil Pan And Drain Plug, Oil Filter Base, O/P Sender:

Oil Pump Components:

Oil Pressure Sender, Relief Valve:

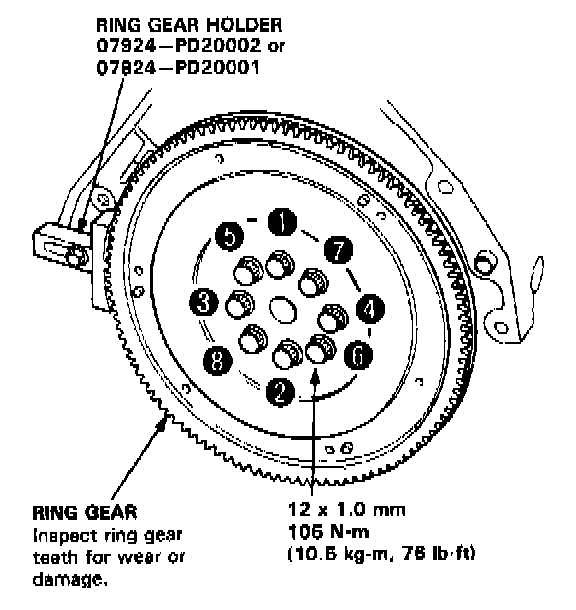

Flywheel (M/T) Torque/Sequence:

Drive Plate (A/T) Torque/Sequence:
