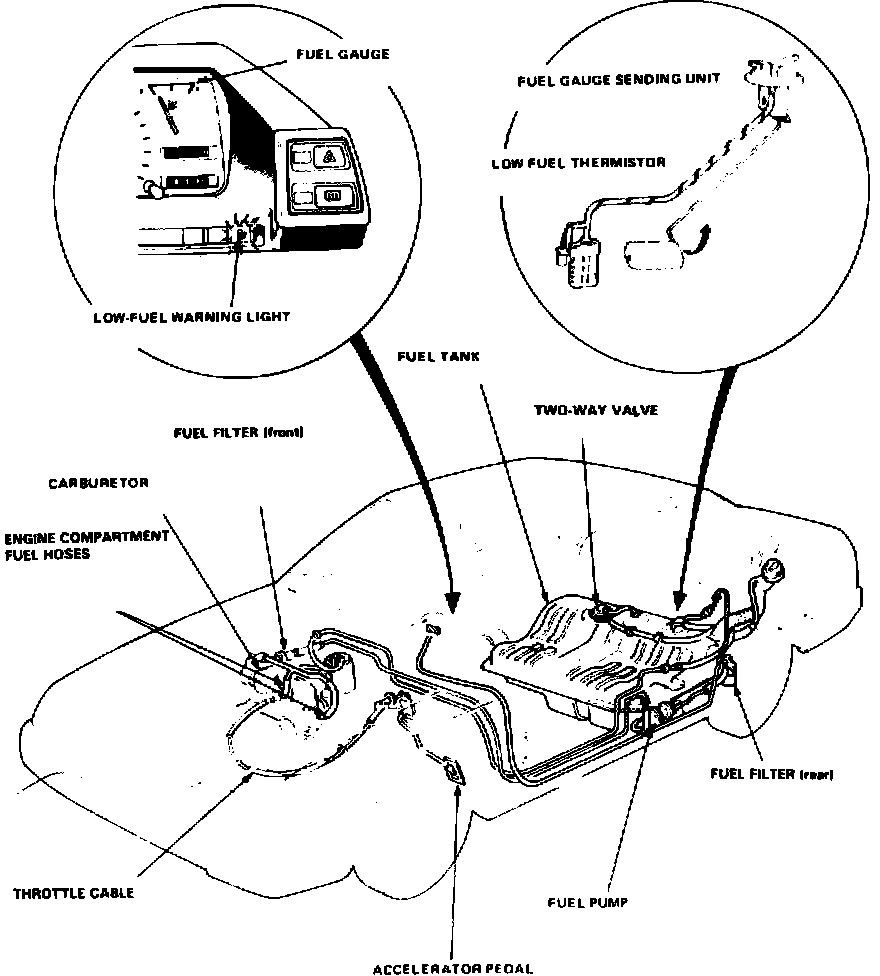

Fuel Pump: Locations

Fuel & Emission System.:




LH Side Of Fuel Tank

Applicable to: 1987 Prelude w/Carbureted Engine
