Turn Signals

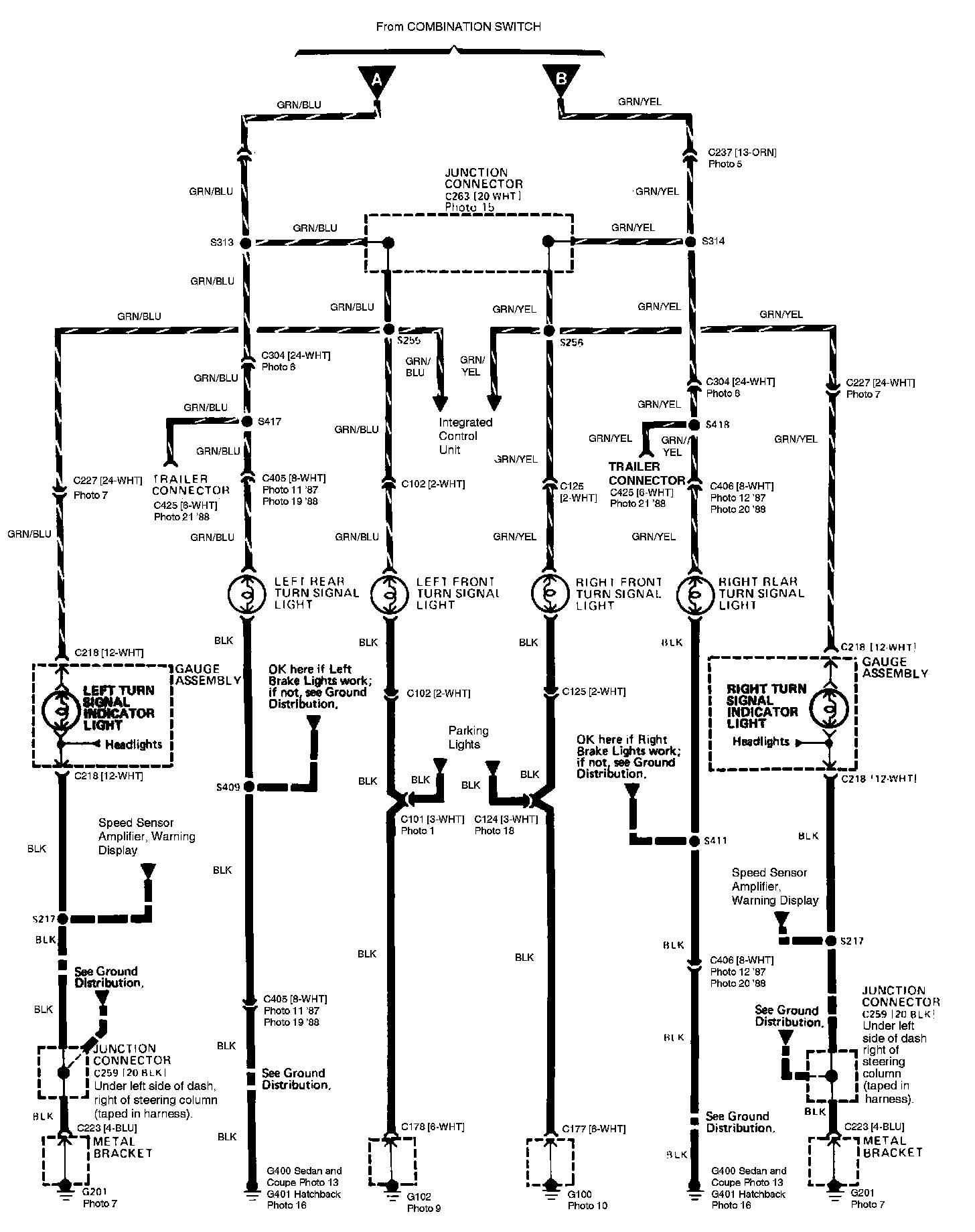

Turn Signal and Hazard Lights (Part 1 Of 2):




Turn Signal and Hazard Lights (Part 2 Of 2):
