Exhaust System
Exhaust System

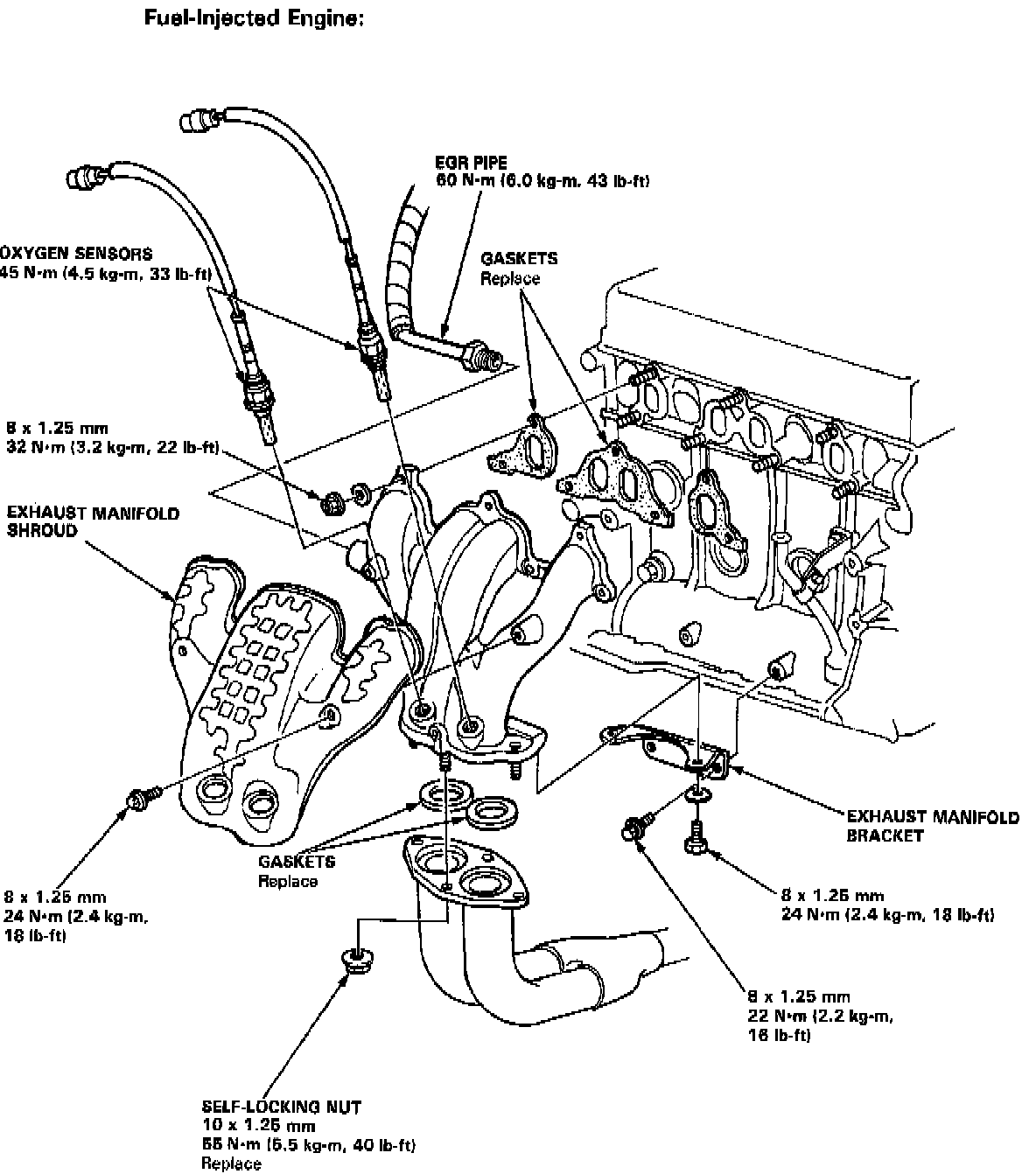

Exhaust Manifold (FUEL INJECTED):

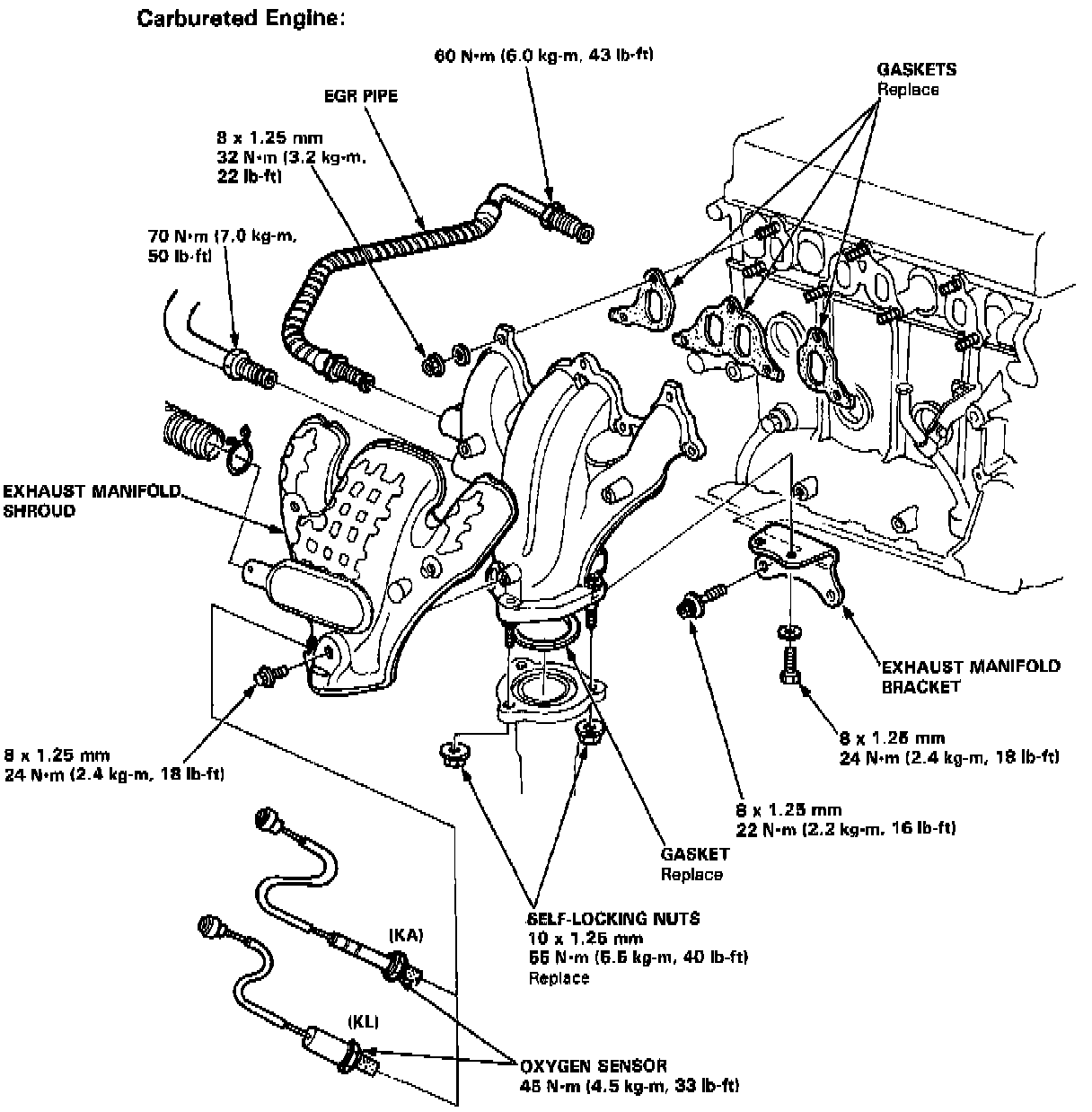

Exhaust Manifold (CARB):
Exhaust Pipe And Muffler:
