Home >> Honda >> 1988 >> Accord L4-1955cc 2.0L SOHC 2-bbl >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Application and ID

Relay Box: Application and ID

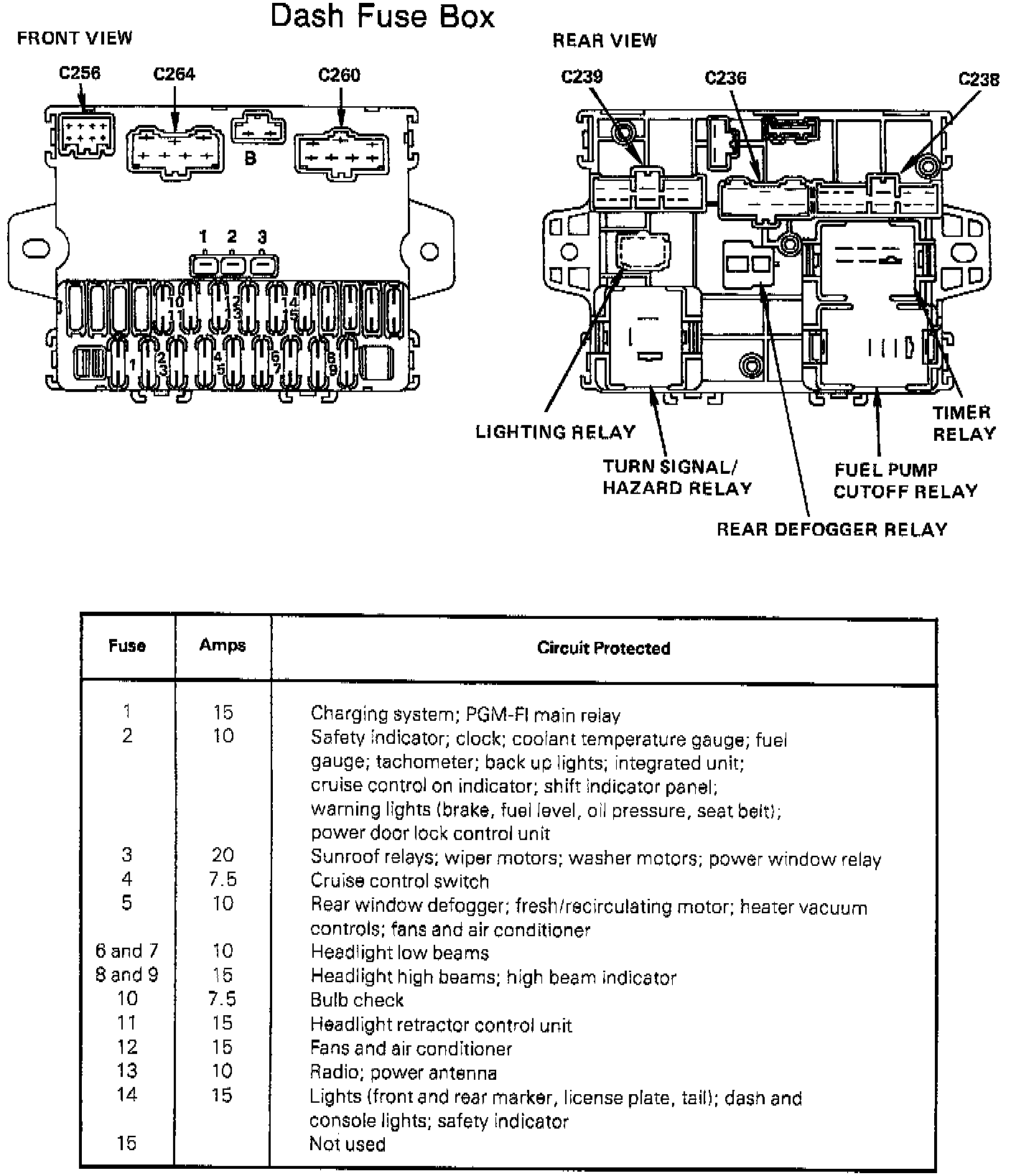

Dash Fuse Box Details (Carb & EFI Models):






Underhood Fuse Box Details (Carb & EFI Models):
