Air Intake System

Air Intake System Description
The air intake system supplies filtered, temperature-controlled air to the carburetor. It consists of the air cleaner, air intake pipe, carburetor, intake manifold and intake air control system.
The intake air control system maintains uniform air temperature inside the air cleaner [approximately 25°C (100°F)]. The carburetor receives fresh air, controlled within a narrow temperature range, regardless of outside temperature.

System Operation:

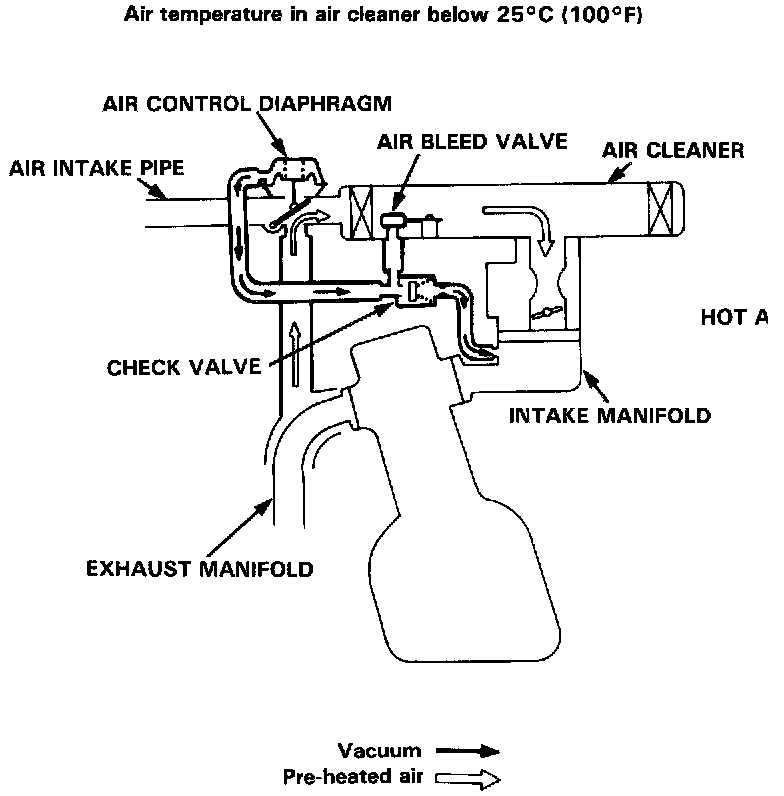

Cold Operation:

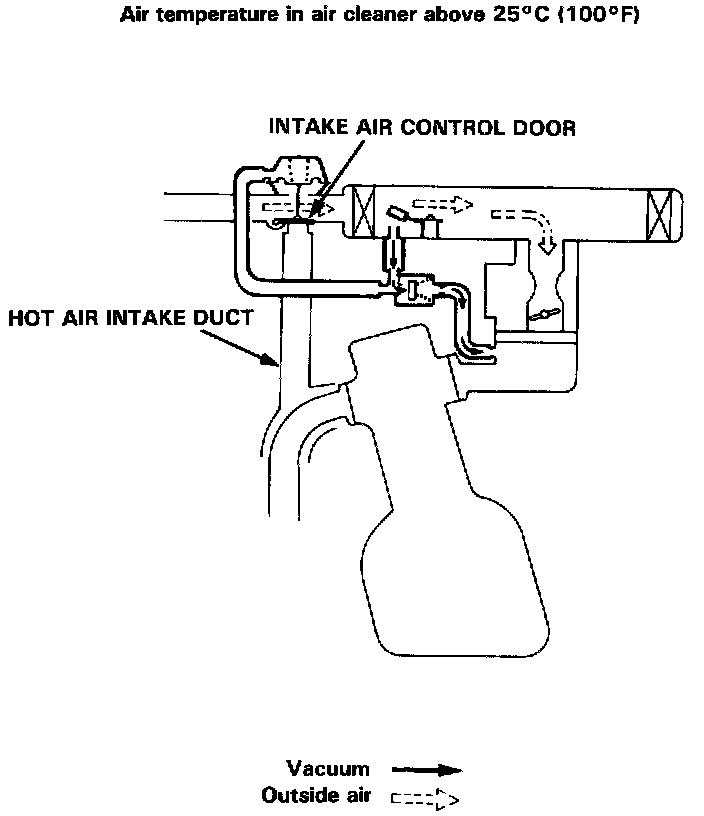

Hot Operation:

Operation
