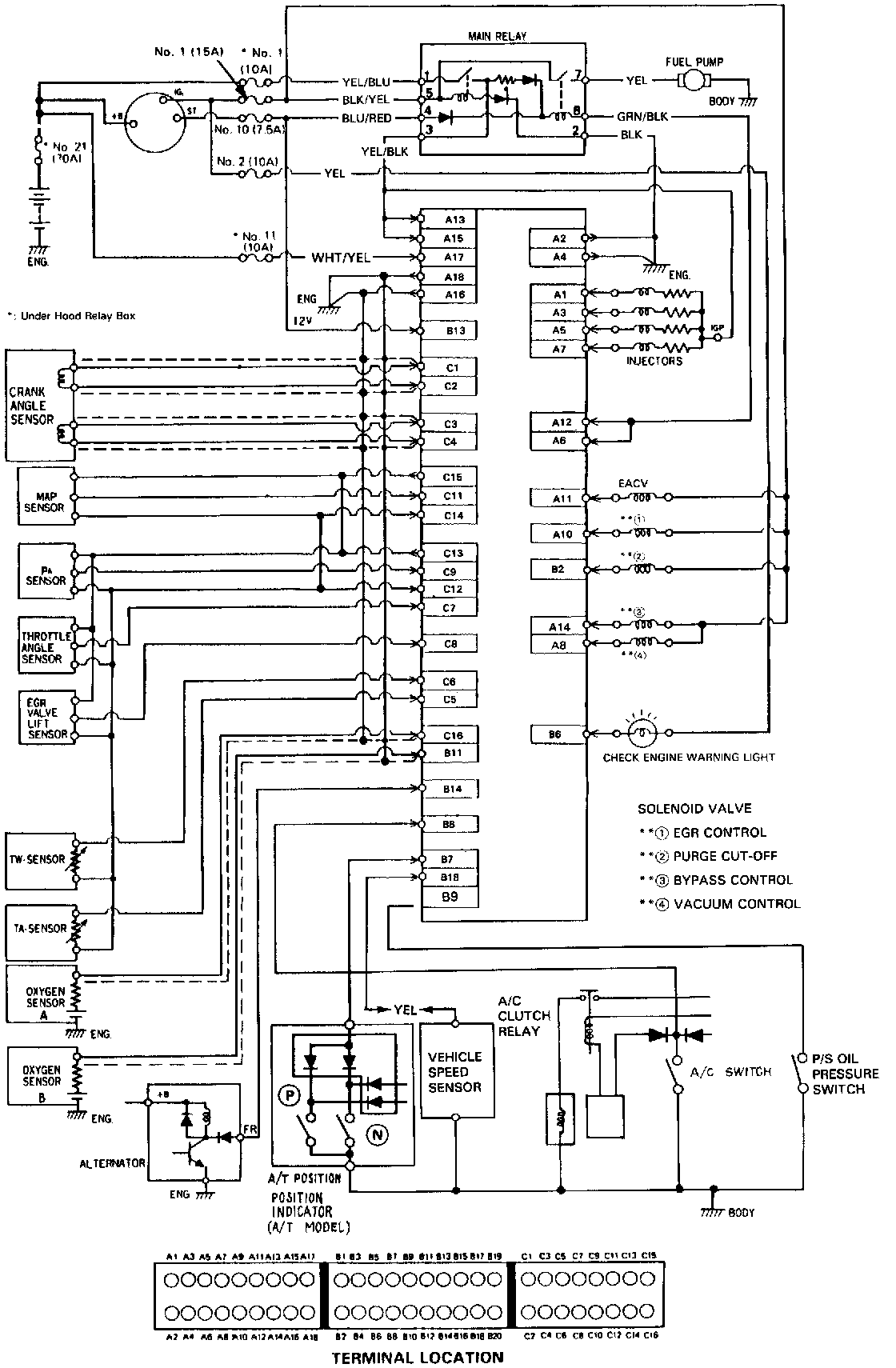

Control Unit Electrical Connections
Control Unit Electrical Connections
ECM Pinout / Terminal I.D. Charts:
