Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1988
>>
Accord L4-1955cc 2.0L SOHC FI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Fans and Compressor Controls
Fans and Compressor Controls

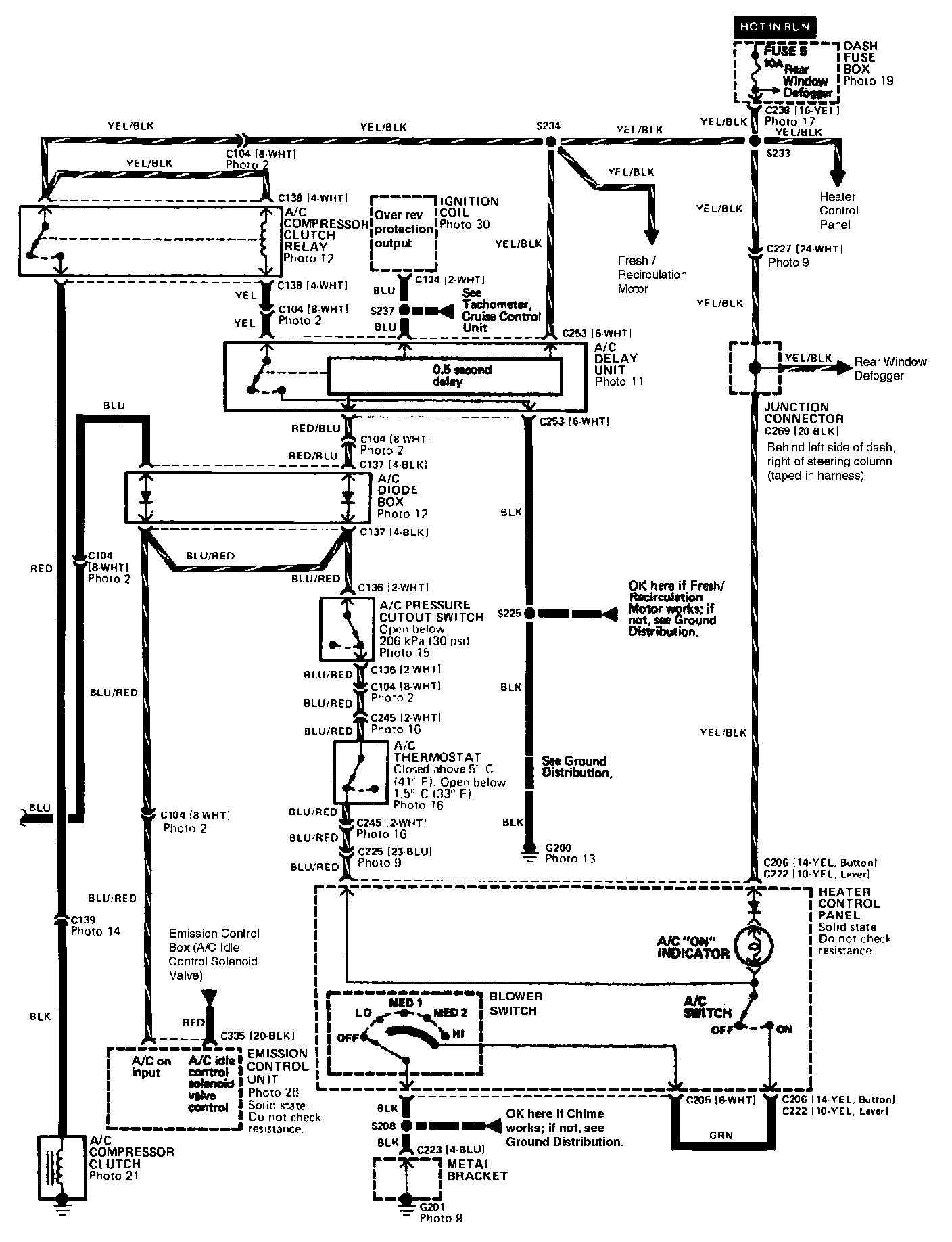

Fans and Air Conditioner (EFI) - Part 1 Of 2:

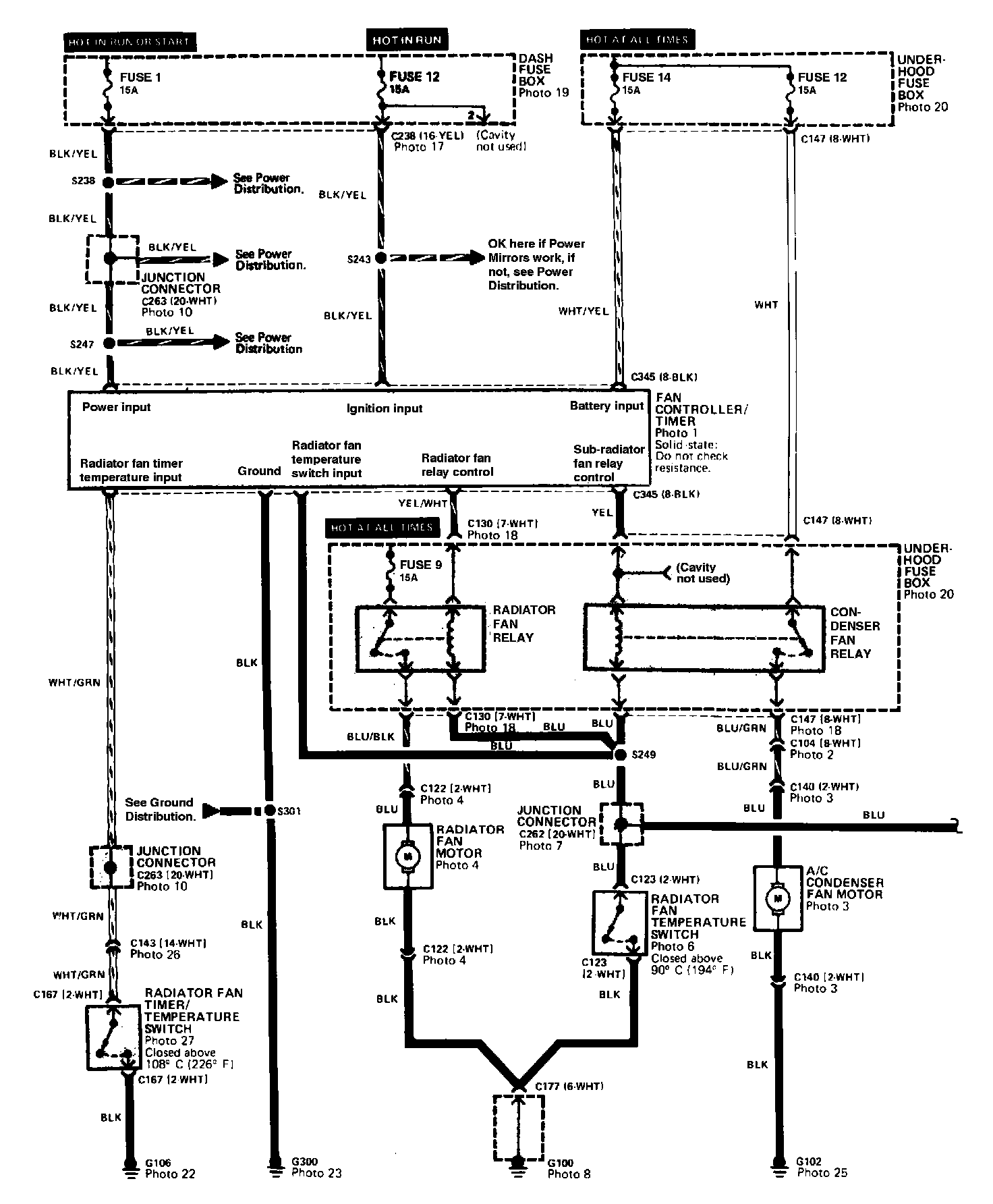

Fans and Air Conditioner (EFI) - Part 2 Of 2:
