Control Box Vacuum Connection Reference Diagram. HF W/Fuel Inj.

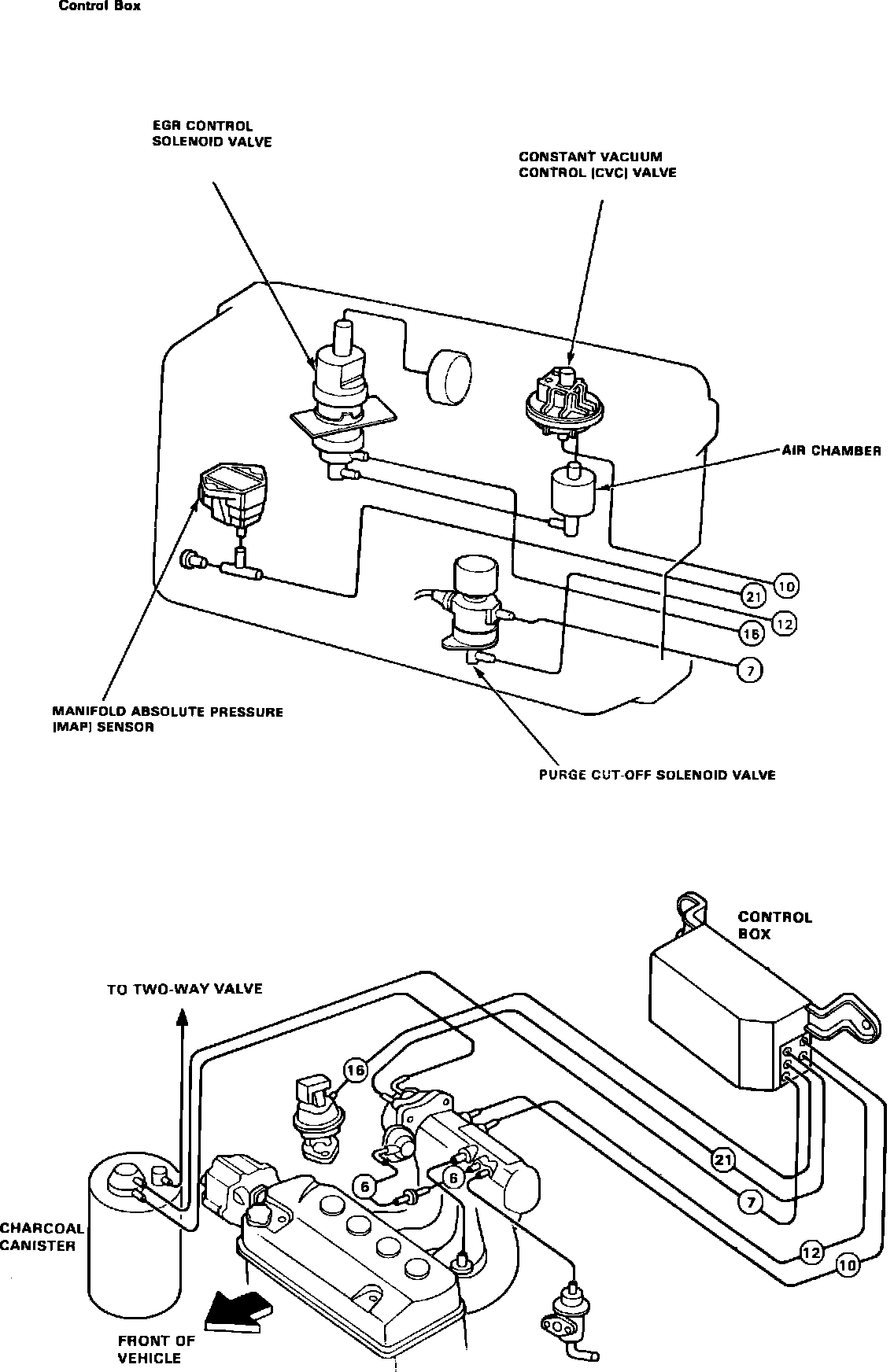

Fig. 68 Control Box & Vacuum Connection Reference Diagram.:
