Home >> Honda >> 1988 >> CRX HF L4-1493cc 1.5L SOHC (D15B6) MFI >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Engine Compartment Reference Diagram

Engine Compartment Reference Diagram

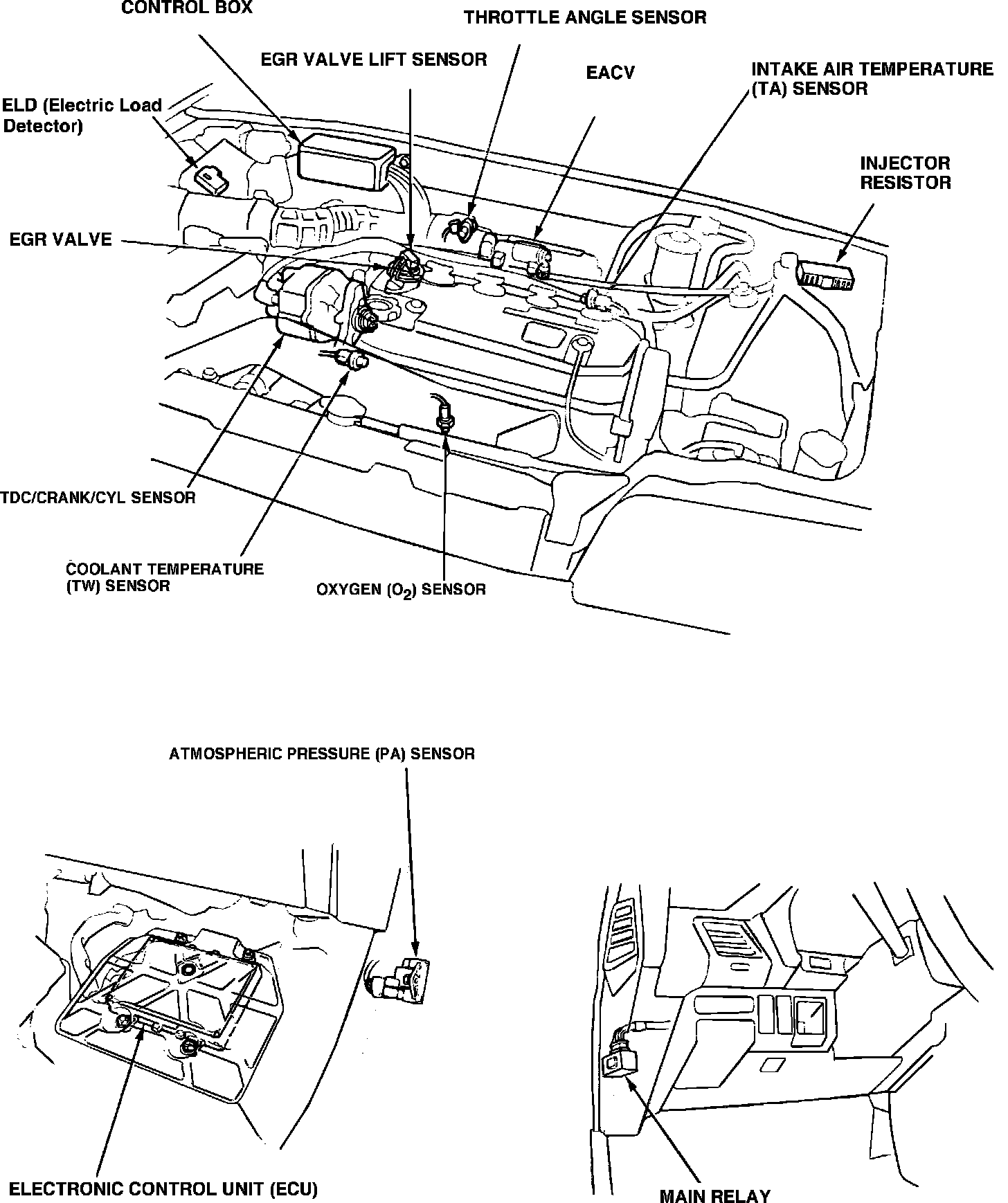

Fig. 67 Engine Compartment Reference Diagram.:

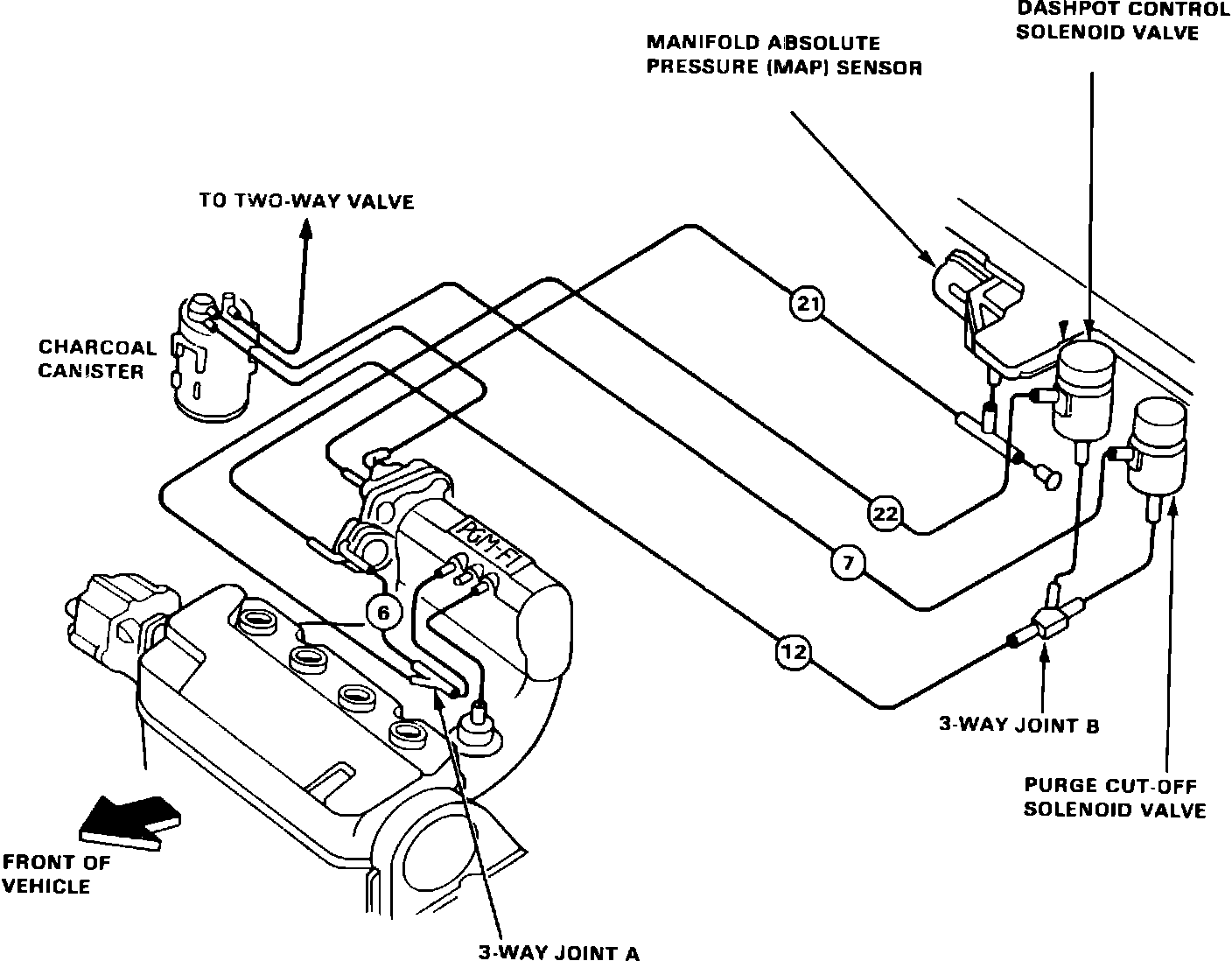

Fig. 67 Engine Compartment Reference Diagram.:



Fig. 67 Engine Compartment Reference Diagram.:



Fig. 67 Engine Compartment Reference Diagram.:
