CRX Si L4-1590cc 1.6L SOHC (D16A6) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Audible Warning Device
Audible Warning Device

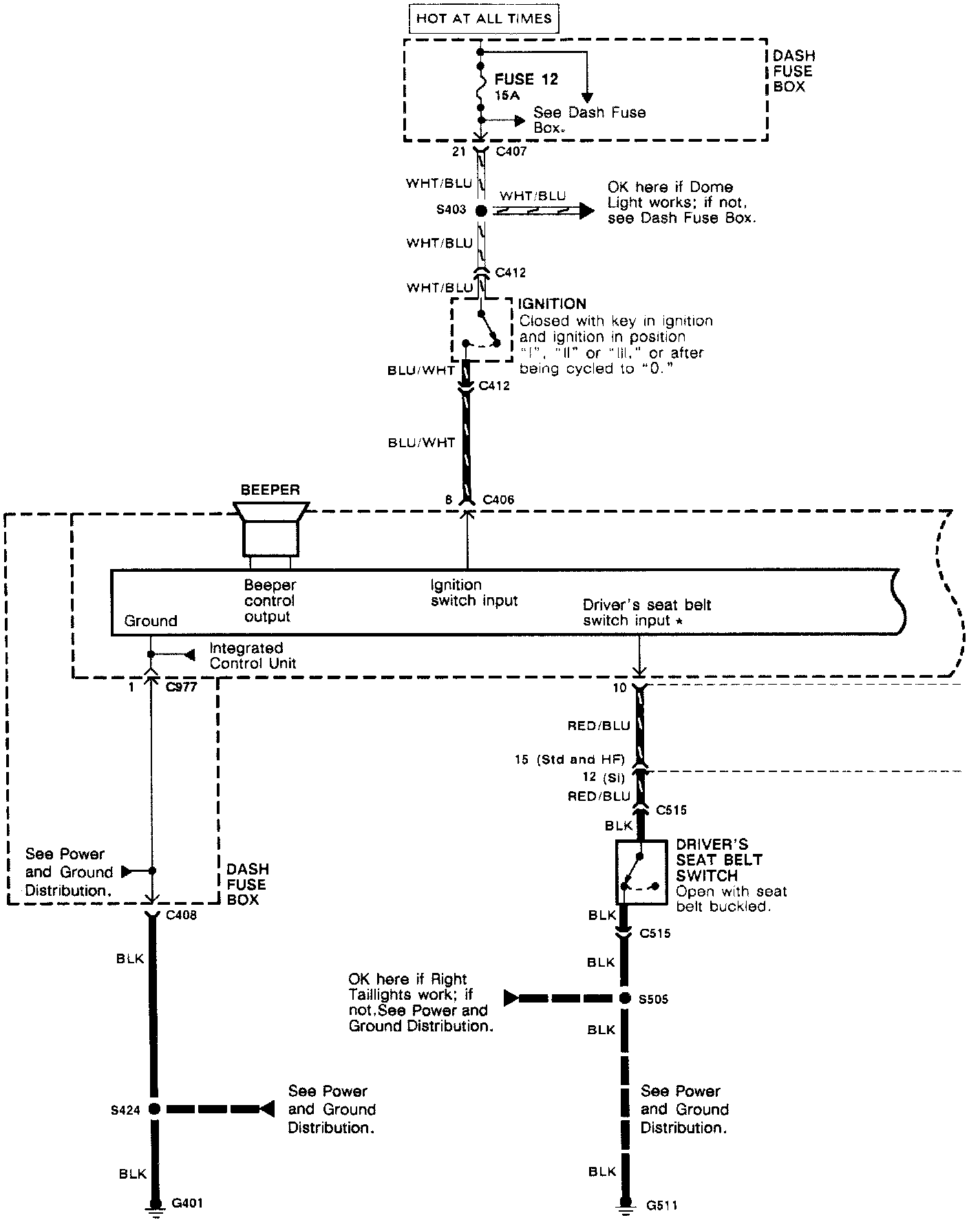

Seat Belt And Key-on Warning System Diagram (Part 1 Of 2):
Seat Belt And Key-on Warning System Diagram (Part 2 Of 2):
