PGI-FI Terminal Pin Location & Schematic

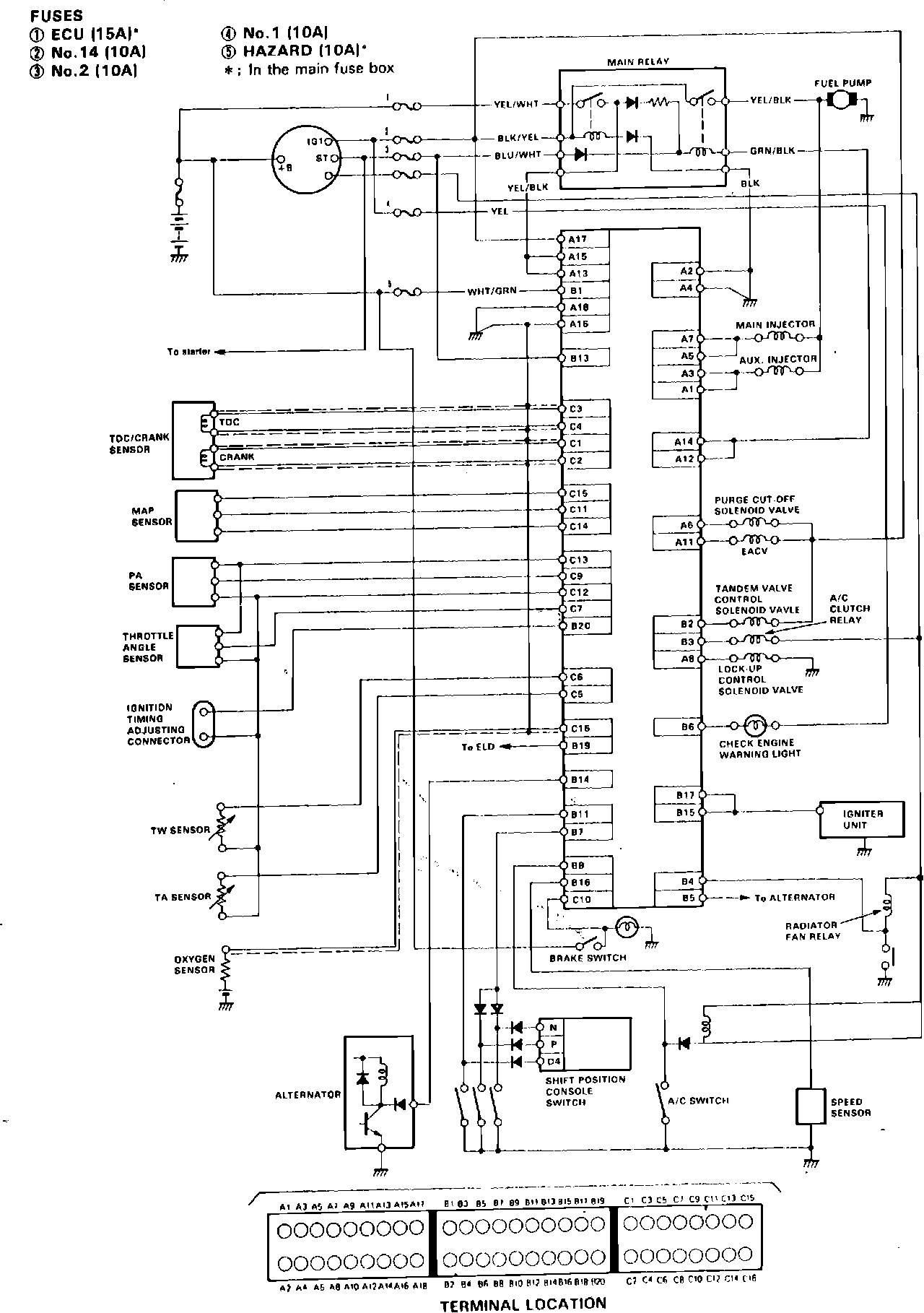

Fig. 429 PGM-FI Control Unit Terminal Pin Locations Schematic (HF & SI):
