Instrument Cluster / Carrier

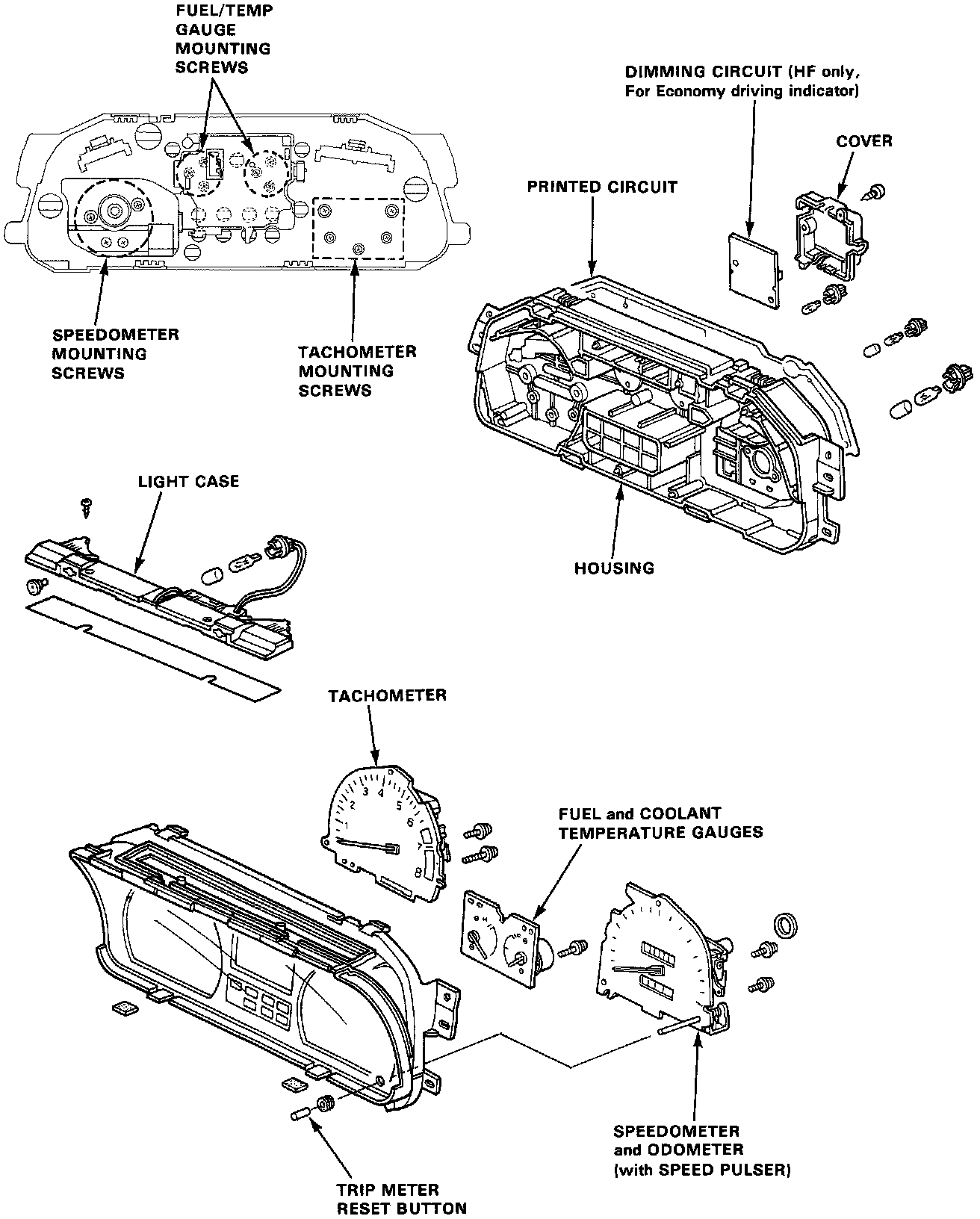

Instrument Cluster Exploded View:

NOTE:
- Handle the terminals and printed circuits carefully to avoid damaging them.
- Gauge assembly manufactured by Nippon Seiki is shown below.
