Torque Specifications

STD Models:

HF & SI Models:

Upper Engine:

STD & SI Models:

HF Models:

STD & SI Models:

HF Models:

STD & SI Models:

HF Models:

Cylinder Head Torque has been revised as follows per TSB 97-047.

Step 1: Tighten all 10 bolts to 20 N.m (14 lb.ft.)
Step 2: Tighten all 10 bolts to 49 N.m (36 lb.ft.)
Step 3: Tighten all 10 bolts to 67 N.m (49 lb.ft.)
Step 4: Tighten bolts 1 and 2 to 67 N.m (49 lb.ft.)

Timing Components:

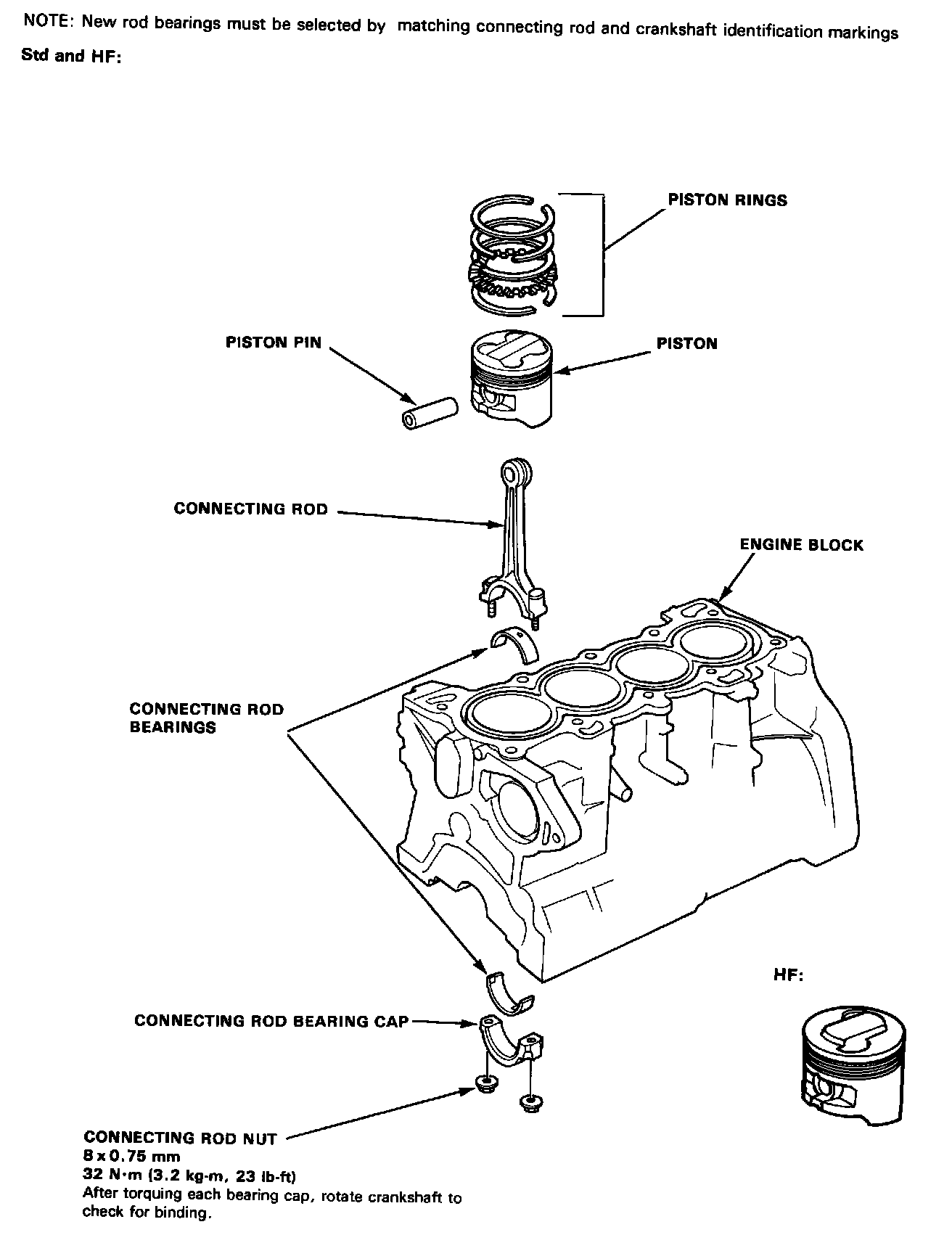

Lower Engine STD & HF Models:

Lower Engine SI Models:

Flywheel (M/T) Torque/Sequence:

Drive Plate (A/T) Torque/Sequence:
