Variable Induction System: Testing and Inspection

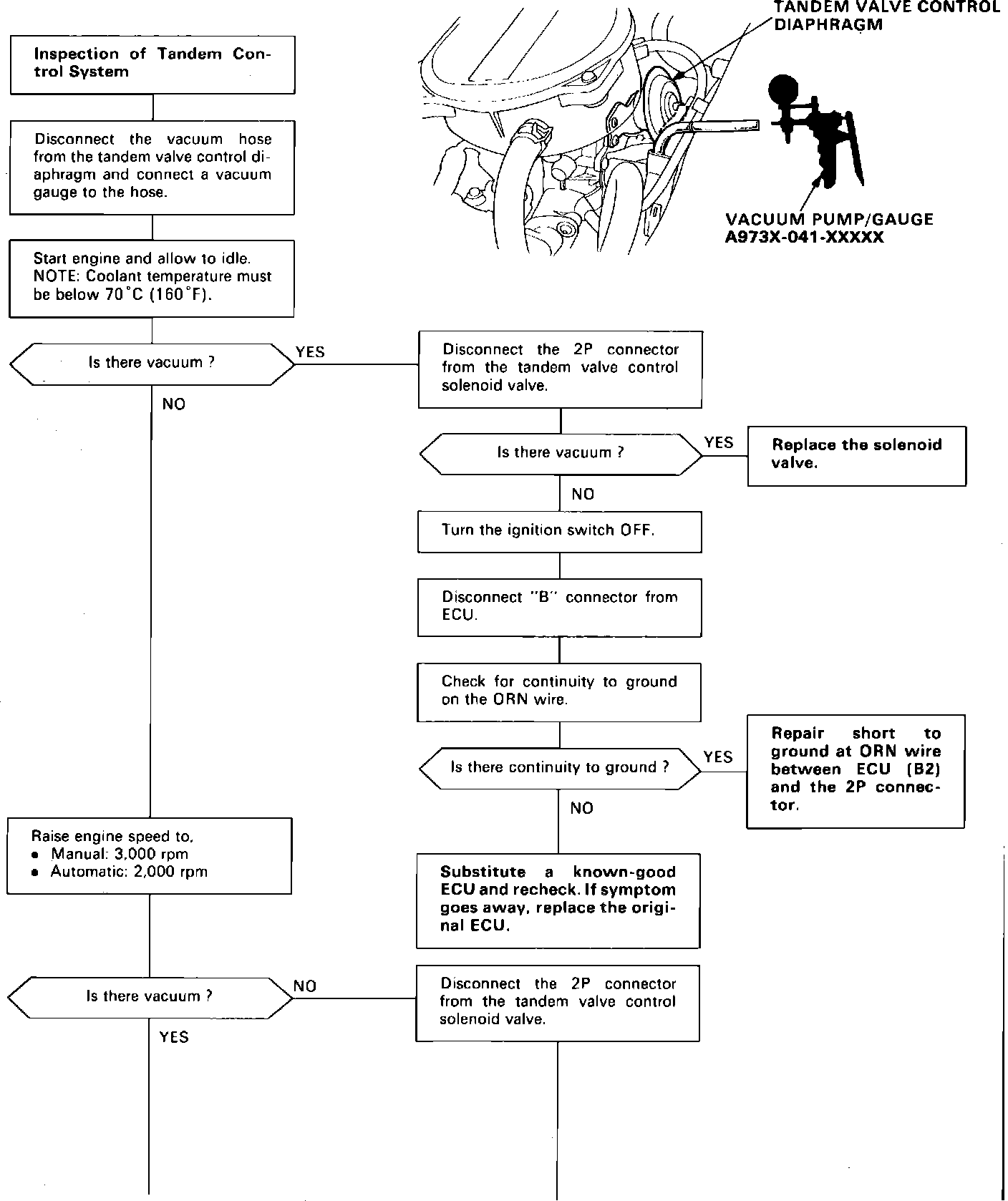

Fig. 44 Tandem control system diagnosis:
Fig. 44 Tandem control system diagnosis:
Fig. 44 Tandem control system diagnosis:
Refer to charts, Fig. 44, to diagnose tandem control system.
Refer to charts, Fig. 44, to diagnose tandem control system.
