Wiper and Washer Systems

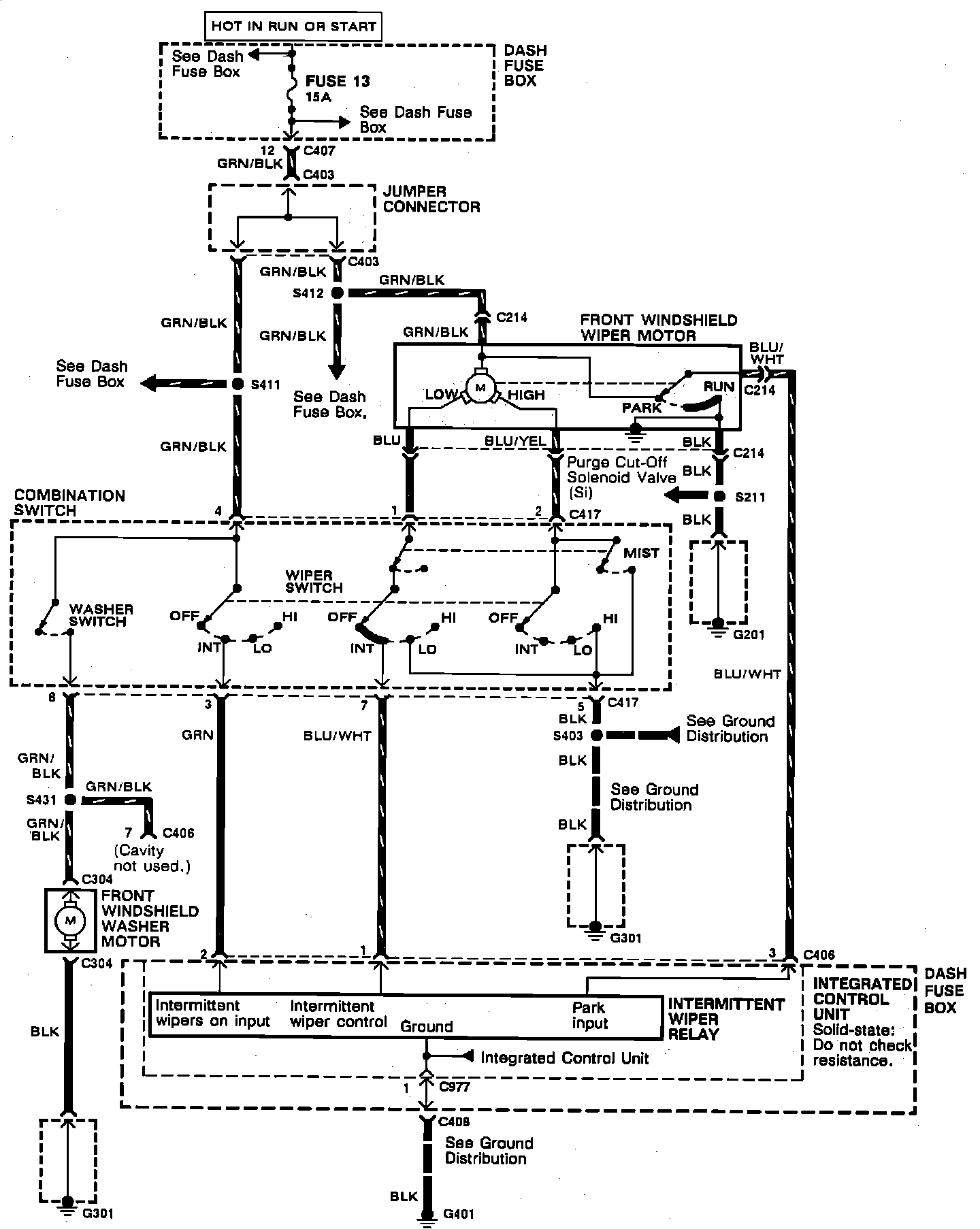

Windshield Washer/Wiper, Front. Wiring Circuit:



Windshield Washer/Wiper, Rear Wiring Circuit:
